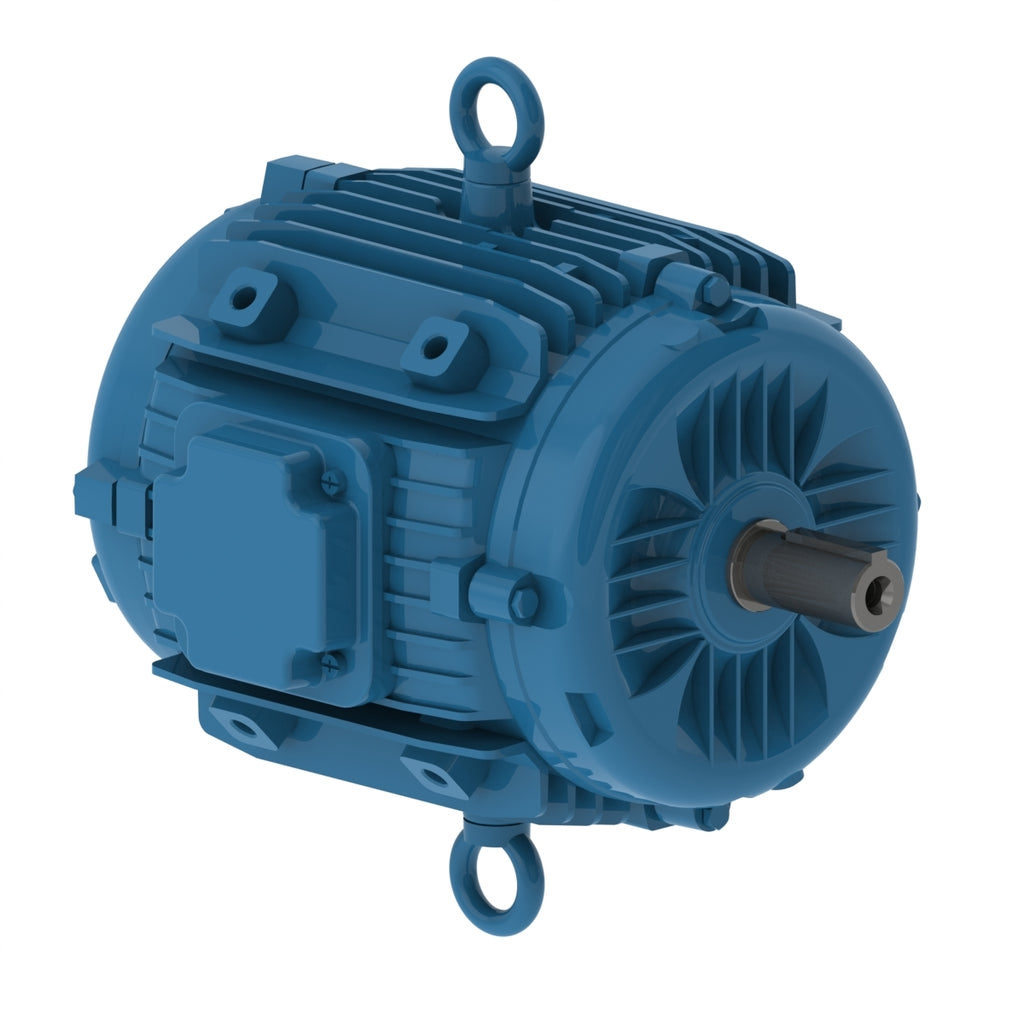

Specially designed for manufacturers of axial fans, the W22 Fan and Exhaust motors are compact and an excellent choice for the following applications: fans and exhausters, tunnels, subways, air conditioning systems, underground coal mines, shopping malls, supermarkets and other applications.
| Standard |
NEMA MG-1 |
| Frequency |
60 Hz |
| Voltage |
208-230/460 V |
| Number of poles |
6 |
| Degree of Protection |
IP55 |
| Synchronous speed |
1200 rpm |
| Output rating |
3 HP |
| Mounting |
F-1 |
| Flange |
Without |
| Terminal box¹ |
Left position |
| Enclosure |
IC410 - TEAO |
Electric Motors
| Frame |
215YZ |
| Output |
3 HP (2.2 kW) |
| Number of Poles |
6 |
| Frequency |
60 Hz |
| Rated speed |
1175 rpm |
| Slip |
2.08 % |
| Rated voltage |
208-230/460 V |
| Rated current |
9.75-8.81/4.41 A |
| L. R. Amperes |
68.2-61.7/30.9 A |
| LRC |
7.0x(Code K) |
| No load current |
0.000-5.50/2.75 A |
| Rated torque |
13.4 ft.lb |
| Locked rotor torque |
200 % |
| Breakdown torque |
280 % |
| Locked rotor time |
104s (cold) 58s (hot) |
| Moment of inertia (J) |
1.20 sq.ft.lb |
| Design |
B |
| Insulation Class |
F |
| Service factor |
1.25 |
| Temperature rise |
80 K |
| Duty Cycle |
Cont.(S1) |
| Starting Method |
Direct On Line |
| Ambient temperature |
-20°C to +40°C |
| Altitude |
1000 m.a.s.l. |
| Degree of Protection |
IP55 |
| Enclosure |
IC410 - TEAO |
| Mounting |
F-1 |
| Rotation¹ |
Both (CW and CCW) |
| Approx. weight³ |
150 lb |
Efficiency
| 50% |
86.5 |
| 75% |
88.5 |
| 100% |
89.5 |
Power factor
| 50% |
0.50 |
| 75% |
0.63 |
| 100% |
0.70 |
Features
| Frame Material |
Cast Iron |
| Impregnation Method |
Dip and Bake Polyester |
| Main terminal box hole |
NPT 3/4" |
| Terminal Block |
Without |
| Shaft Locking Device |
Without |
| Drain |
Rubber, automatic |
| Shaft Material |
SAE 1040/45 Carbon Steel |
| Painting |
RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Fan Cover material |
Without Fan Cover |
| Tropicalized Painting |
Without |
| Fan material |
Without fan |
| Bearing cap |
No-Without Bearing Cap |
| Balancing Method |
1/2 Key |
| Drip Cover |
Without |
| Overload protector (phenolic) |
Without overload protector |
| Connection Cables Quantity |
9 |
Features
| Frame Material |
Cast Iron |
| Impregnation Method |
Dip and Bake Polyester |
| Main terminal box hole |
NPT 3/4" |
| Terminal Block |
Without |
| Shaft Locking Device |
Without |
| Drain |
Rubber, automatic |
| Shaft Material |
SAE 1040/45 Carbon Steel |
| Painting |
RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Fan Cover material |
Without Fan Cover |
| Tropicalized Painting |
Without |
| Fan material |
Without fan |
| Bearing cap |
No-Without Bearing Cap |
| Balancing Method |
1/2 Key |
| Drip Cover |
Without |
| Overload protector (phenolic) |
Without overload protector |
| Connection Cables Quantity |
9 |
