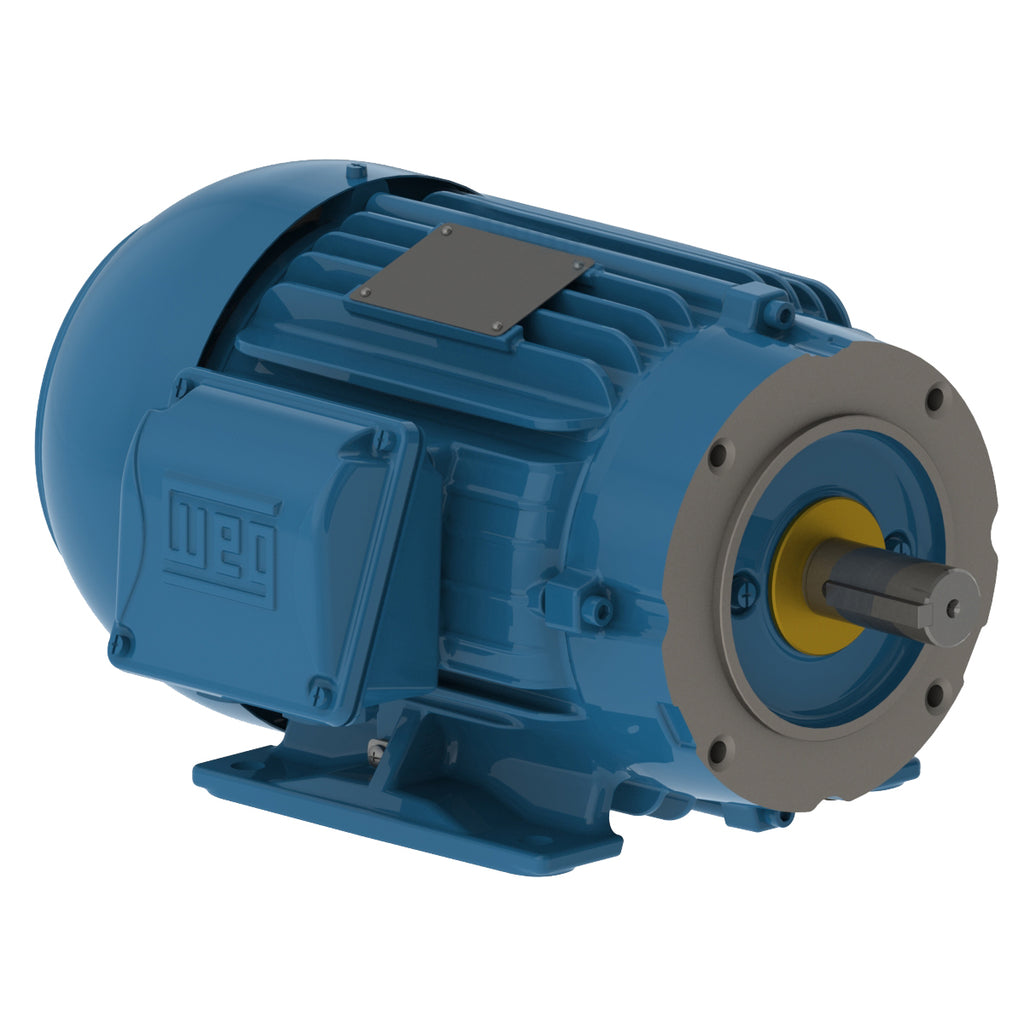

WEG 00218ST3QIE145TC-W22 W22 IEEE 841 NEMA Premium Efficiency 2 HP 4P 143/5TC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

Roll over image to zoom in Click on image to zoom

WEG 00218ST3QIE145TC-W22 W22 IEEE 841 NEMA Premium Efficiency 2 HP 4P 143/5TC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

Name: WEG 00218ST3QIE145TC-W22 W22 IEEE 841 NEMA Premium Efficiency 2 HP 4P 143/5TC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Brand: WEG
SKU: 00218ST3QIE145TC-W22
Price: 826.21 USD
Availability: InStock

WEGSKU: 00218ST3QIE145TC-W22

Dropship

Get it by Thu, Sep 11 - Tue, Sep 16

Price:

$826.21

Quantity:

Share this product

The W22 IEEE 841 motors were especially designed to operate in petrochemical and chemical industries. The motor has cast iron frame, flexible mounting, solid and whole feet, low noise levels, anticorrosive internal coating and high efficiency.

Standard	NEMA MG-1
Frequency	60 Hz
Voltage	460 V
Number of poles	4
Degree of Protection	IP55
Synchronous speed	1800 rpm
Output rating	2 HP
Mounting	F-1
Flange	C
Terminal box¹	Left position
Enclosure	IC411 - TEFC

Specifications

460 V 60 Hz 4P 380 V 50 Hz 4P IE3 400 V 50 Hz 4P IE3 415 V 50 Hz 4P IE3 380 V 50 Hz 4P IE1 400 V 50 Hz 4P IE2 415 V 50 Hz 4P IE2

Electric Motors

Frame	143/5TC
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1750 rpm
Slip	2.78 %
Rated voltage	460 V
Rated current	2.79 A
L. R. Amperes	23.2 A
LRC	8.3x(Code L)
No load current	1.63 A
Rated torque	6.00 ft.lb
Locked rotor torque	270 %
Breakdown torque	320 %
Locked rotor time	18s (cold) 10s (hot)
Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	59.1 lb

Efficiency

50%	85.5
75%	86.5
100%	86.5

Power factor

50%	0.57
75%	0.70
100%	0.78

Electric Motors

Frame	143/5TC
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	2.57 A
L. R. Amperes	21.1 A
LRC	8.2x(Code L)
No load current	1.61 A
Rated torque	5.40 ft.lb
Locked rotor torque	290 %
Breakdown torque	330 %
Locked rotor time	32s (cold) 18s (hot)
Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	59.1 lb

Efficiency

50%	84.0
75%	84.2
100%	84.5

Power factor

50%	0.55
75%	0.69
100%	0.77

Electric Motors

Frame	143/5TC
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	400 V
Rated current	2.57 A
L. R. Amperes	22.4 A
LRC	8.7x(Code M)
No load current	1.80 A
Rated torque	5.38 ft.lb
Locked rotor torque	320 %
Breakdown torque	380 %
Locked rotor time	28s (cold) 16s (hot)
Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	59.1 lb

Efficiency

50%	82.0
75%	83.5
100%	84.5

Power factor

50%	0.50
75%	0.64
100%	0.73

Electric Motors

Frame	143/5TC
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	415 V
Rated current	2.56 A
L. R. Amperes	21.5 A
LRC	8.4x(Code M)
No load current	1.97 A
Rated torque	5.38 ft.lb
Locked rotor torque	350 %
Breakdown torque	409 %
Locked rotor time	27s (cold) 15s (hot)
Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	59.1 lb

Efficiency

50%	81.4
75%	83.1
100%	84.1

Power factor

50%	0.47
75%	0.61
100%	0.71

Electric Motors

Frame	143/5TC
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1435 rpm
Slip	4.33 %
Rated voltage	380 V
Rated current	3.33 A
L. R. Amperes	20.0 A
LRC	6.0x(Code H)
No load current	1.61 A
Rated torque	7.32 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	23s (cold) 13s (hot)
Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	59.1 lb

Efficiency

50%	85.5
75%	84.0
100%	82.5

Power factor

50%	0.66
75%	0.78
100%	0.83

Electric Motors

Frame	143/5TC
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1440 rpm
Slip	4.00 %
Rated voltage	400 V
Rated current	3.22 A
L. R. Amperes	21.3 A
LRC	6.6x(Code J)
No load current	1.80 A
Rated torque	7.29 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	21s (cold) 12s (hot)
Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	59.1 lb

Efficiency

50%	84.0
75%	84.0
100%	84.0

Power factor

50%	0.62
75%	0.74
100%	0.80

Electric Motors

Frame	143/5TC
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	415 V
Rated current	3.14 A
L. R. Amperes	22.9 A
LRC	7.3x(Code K)
No load current	1.97 A
Rated torque	7.24 ft.lb
Locked rotor torque	250 %
Breakdown torque	290 %
Locked rotor time	21s (cold) 12s (hot)
Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	59.1 lb

Efficiency

50%	84.0
75%	84.0
100%	84.0

Power factor

50%	0.60
75%	0.72
100%	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3

Downloads

W22 - Three Phase Motor - Technical (NEMA Market)
