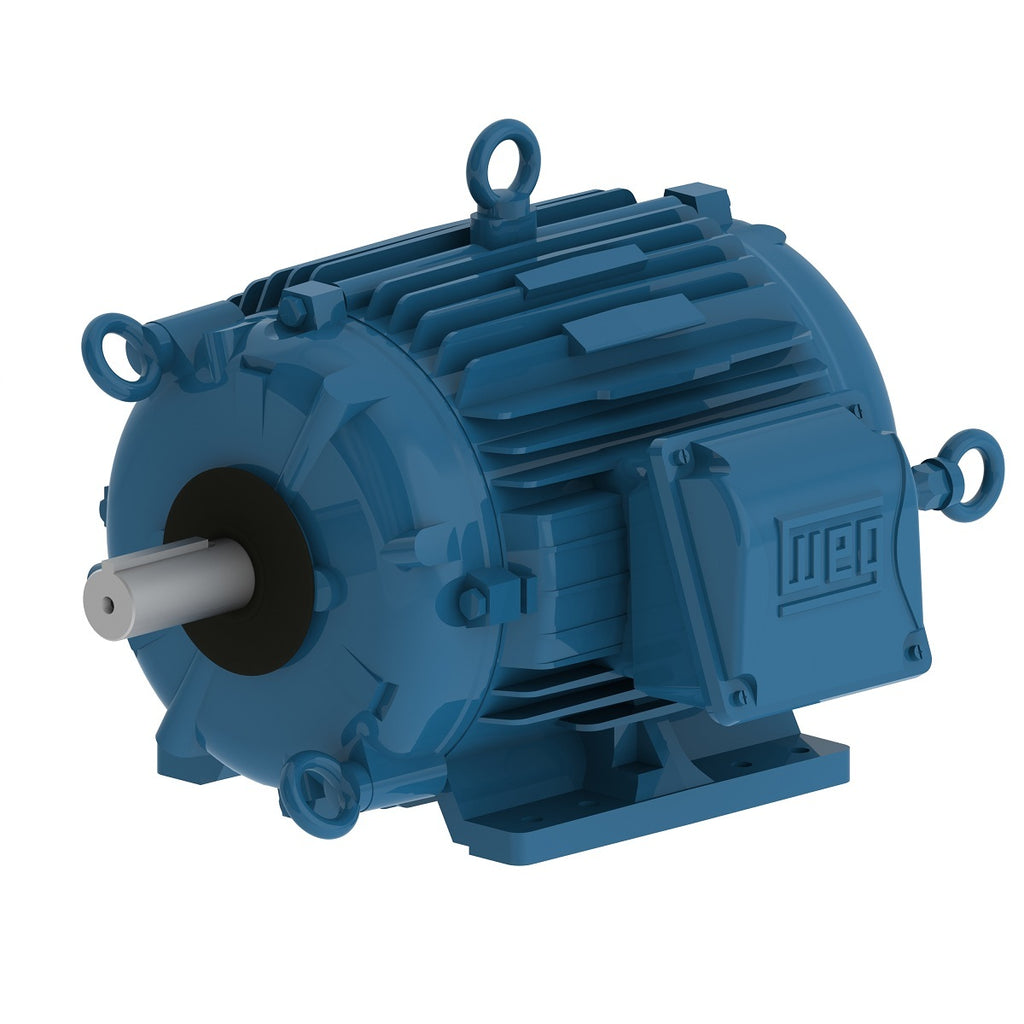

WEG 00318AT3ECT182T-W22 W22 Cooling Tower NEMA Premium Efficiency 3 HP 4P 182T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00318AT3ECT182T-W22 W22 Cooling Tower NEMA Premium Efficiency 3 HP 4P 182T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEG 00318AT3ECT182T-W22 W22 Cooling Tower NEMA Premium Efficiency 3 HP 4P 182T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEGSKU: 00318AT3ECT182T-W22

Dropship

Get it by Mon, Feb 09 - Sat, Feb 14

Price:
$715.56

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 3 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC410 - TEAO


Electric Motors
Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 8.65-7.82/3.91 A
L. R. Amperes 70.1-63.3/31.7 A
LRC 8.1x(Code K)
No load current 3.45-4.00/2.00 A
Rated torque 8.95 ft.lb
Locked rotor torque 229 %
Breakdown torque 340 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 0.3401 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 91.2 lb
Efficiency
50% 87.5
75% 88.5
100% 89.5
Power factor
50% 0.61
75% 0.73
100% 0.79
Electric Motors
Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 380 V
Rated current 4.60 A
L. R. Amperes 29.0 A
LRC 6.3x(Code H)
No load current 2.00 A
Rated torque 10.9 ft.lb
Locked rotor torque 180 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.3401 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 91.2 lb
Efficiency
50% 87.5
75% 87.5
100% 87.5
Power factor
50% 0.68
75% 0.79
100% 0.83
Electric Motors
Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 4.48 A
L. R. Amperes 31.4 A
LRC 7.0x(Code J)
No load current 2.15 A
Rated torque 10.9 ft.lb
Locked rotor torque 210 %
Breakdown torque 290 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.3401 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 91.2 lb
Efficiency
50% 87.5
75% 87.5
100% 87.5
Power factor
50% 0.64
75% 0.76
100% 0.81
Electric Motors
Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 4.43 A
L. R. Amperes 33.2 A
LRC 7.5x(Code J)
No load current 2.25 A
Rated torque 10.8 ft.lb
Locked rotor torque 240 %
Breakdown torque 320 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.3401 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 91.2 lb
Efficiency
50% 87.5
75% 87.5
100% 87.5
Power factor
50% 0.61
75% 0.73
100% 0.79
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap No-Without Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
