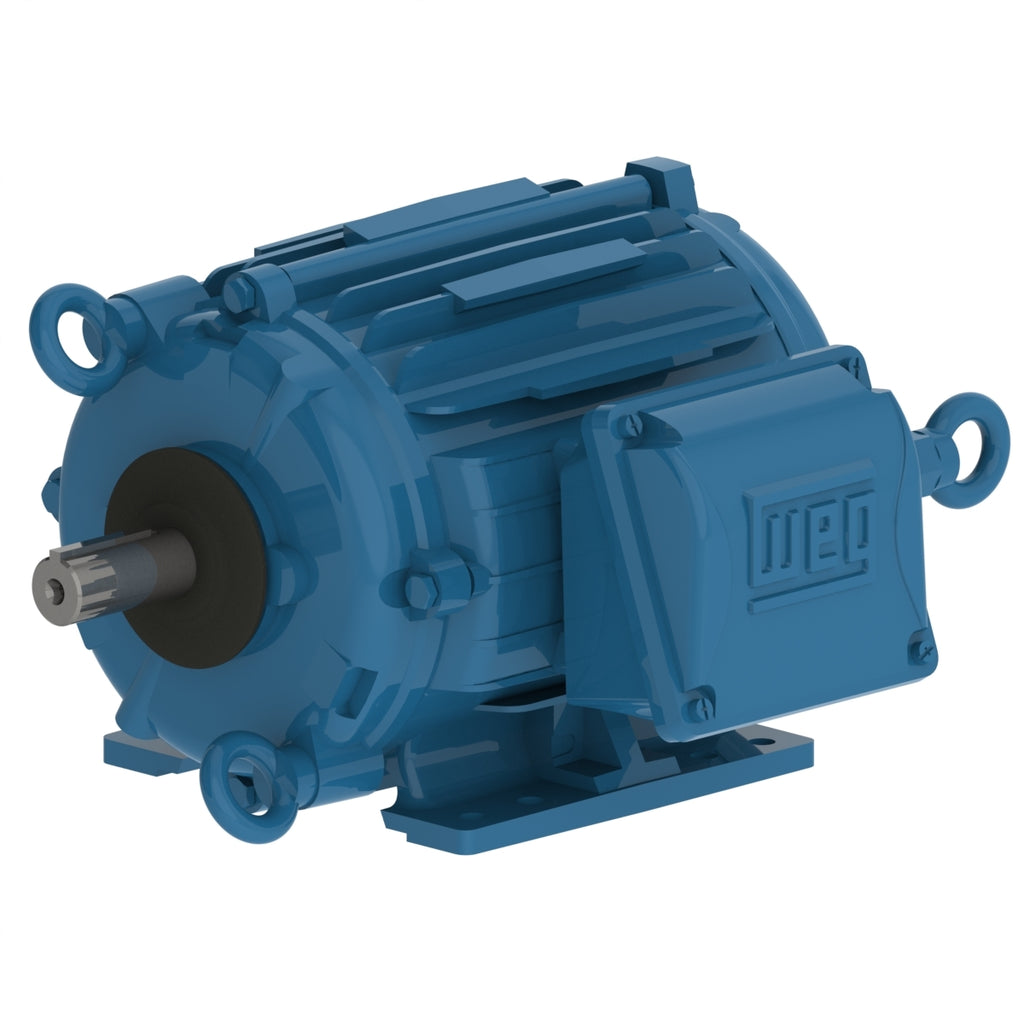

WEG 00212AT3ECT184T-W22 W22 Cooling Tower NEMA Premium Efficiency 2 HP 6P 182/4T 3Ph 230/460 V 60 Hz IC410 - TEAO - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00212AT3ECT184T-W22 W22 Cooling Tower NEMA Premium Efficiency 2 HP 6P 182/4T 3Ph 230/460 V 60 Hz IC410 - TEAO - Foot-mounted

WEG 00212AT3ECT184T-W22 W22 Cooling Tower NEMA Premium Efficiency 2 HP 6P 182/4T 3Ph 230/460 V 60 Hz IC410 - TEAO - Foot-mounted

WEGSKU: 00212AT3ECT184T-W22

Dropship

Get it by Tue, Jan 06 - Sun, Jan 11

Price:
$777.70

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 2 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC410 - TEAO


Electric Motors
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 6.44/3.22 A
L. R. Amperes 48.3/24.2 A
LRC 7.5x(Code L)
No load current 3.80/1.90 A
Rated torque 8.98 ft.lb
Locked rotor torque 300 %
Breakdown torque 350 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 0.6210 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 102 lb
Efficiency
50% 86.5
75% 87.5
100% 88.5
Power factor
50% 0.46
75% 0.58
100% 0.66
Electric Motors
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 3.66 A
L. R. Amperes 22.0 A
LRC 6.0x(Code J)
No load current 1.90 A
Rated torque 10.9 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.6210 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 102 lb
Efficiency
50% 85.5
75% 86.0
100% 86.5
Power factor
50% 0.53
75% 0.65
100% 0.72
Electric Motors
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 400 V
Rated current 3.61 A
L. R. Amperes 24.2 A
LRC 6.7x(Code K)
No load current 2.05 A
Rated torque 10.9 ft.lb
Locked rotor torque 280 %
Breakdown torque 310 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.6210 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 102 lb
Efficiency
50% 85.5
75% 86.5
100% 87.0
Power factor
50% 0.49
75% 0.62
100% 0.69
Electric Motors
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 415 V
Rated current 3.58 A
L. R. Amperes 25.4 A
LRC 7.1x(Code L)
No load current 2.15 A
Rated torque 10.9 ft.lb
Locked rotor torque 310 %
Breakdown torque 340 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.6210 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 102 lb
Efficiency
50% 85.0
75% 86.5
100% 87.0
Power factor
50% 0.46
75% 0.59
100% 0.67
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
