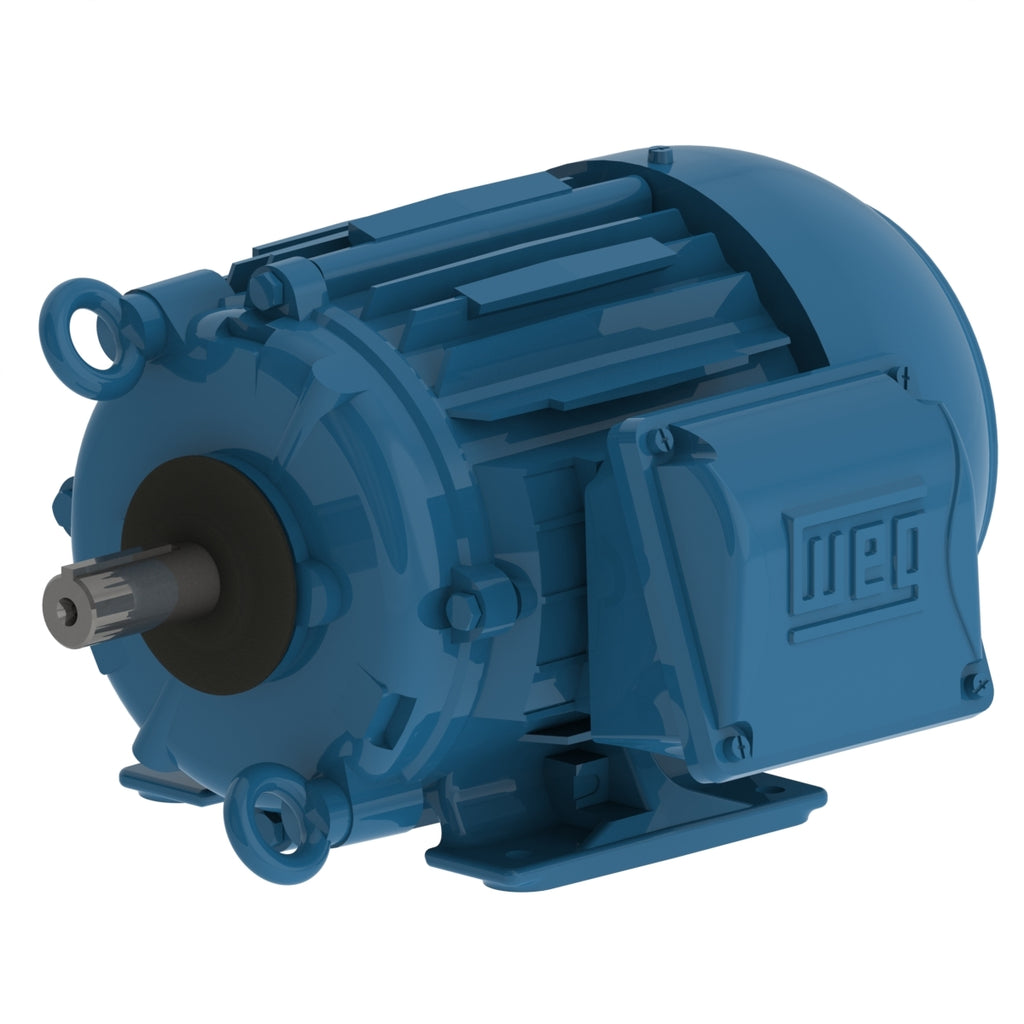

WEG 00289EP3PCT145V-W22 W22 Cooling Tower High Efficiency 0.5/2.0 HP 8/4P 143/5T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00289EP3PCT145V-W22 W22 Cooling Tower High Efficiency 0.5/2.0 HP 8/4P 143/5T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 00289EP3PCT145V-W22 W22 Cooling Tower High Efficiency 0.5/2.0 HP 8/4P 143/5T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 00289EP3PCT145V-W22

GTIN : 7909018675787

MPN :

Dropship

Price:
$929.00

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 0.5/2.0 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC

Specifications

200 V 60 Hz 4P 200 V 60 Hz 8P

Electric Motors
Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1735 rpm
Slip 3.61 %
Rated voltage 200 V
Rated current 6.40 A
L. R. Amperes 51.2 A
LRC 8.0x(Code K)
No load current 3.48 A
Rated torque 6.05 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.1590 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 52.9 lb
Efficiency
50% 77.0
75% 81.5
100% 82.5
Power factor
50% 0.60
75% 0.73
100% 0.82
Electric Motors
Frame 143/5T
Output 0.5 HP (0.37 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 860 rpm
Slip 4.44 %
Rated voltage 200 V
Rated current 2.88 A
L. R. Amperes 10.4 A
LRC 3.6x(Code J)
No load current 2.04 A
Rated torque 3.05 ft.lb
Locked rotor torque 160 %
Breakdown torque 220 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 0.1590 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 52.9 lb
Efficiency
50% 55.0
75% 62.0
100% 64.0
Power factor
50% 0.37
75% 0.48
100% 0.58
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
