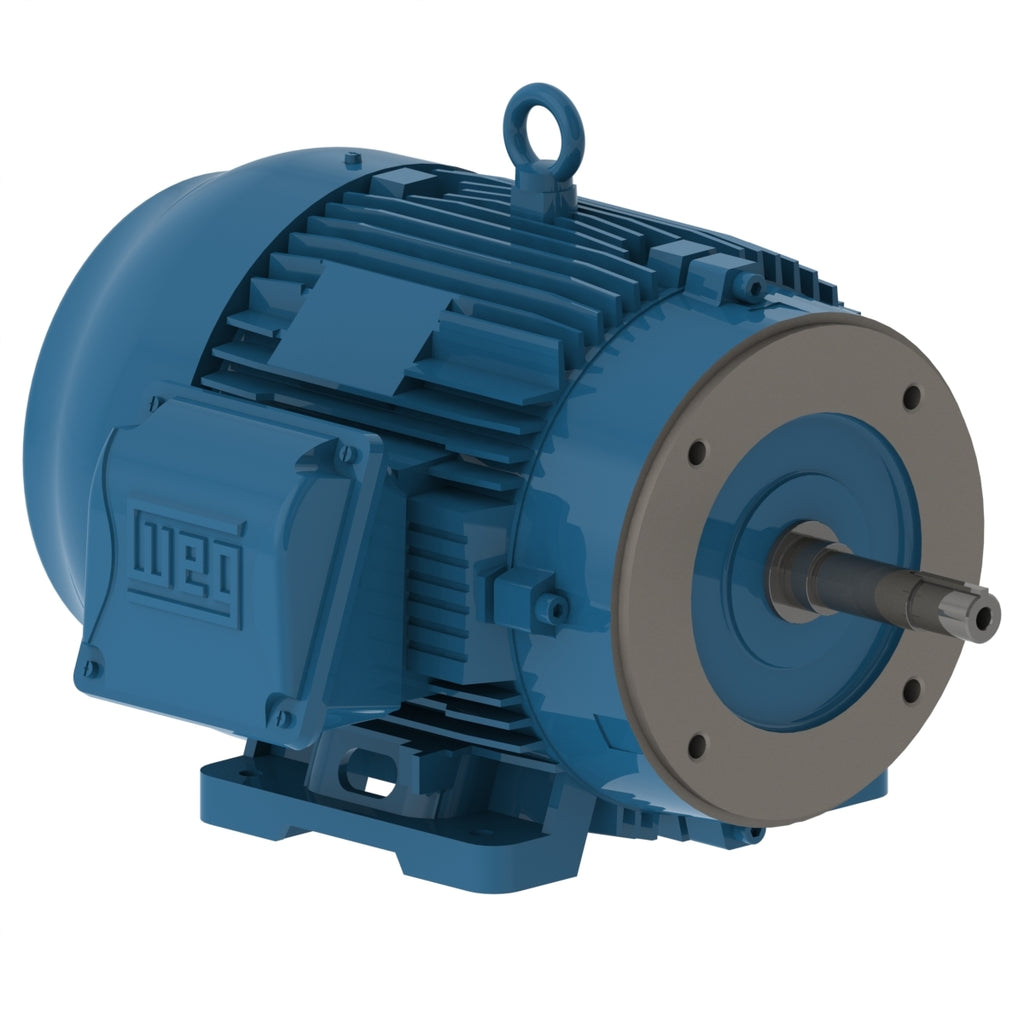

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 6 |
| Degree of Protection | IP55 |
| Synchronous speed | 1200 rpm |
| Output rating | 2 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 182/4JM |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1170 rpm |
| Slip | 2.50 % |
| Rated voltage | 230/460 V |
| Rated current | 6.44/3.22 A |
| L. R. Amperes | 48.3/24.2 A |
| LRC | 7.5x(Code L) |
| No load current | 3.80/1.90 A |
| Rated torque | 8.98 ft.lb |
| Locked rotor torque | 300 % |
| Breakdown torque | 350 % |
| Locked rotor time | 55s (cold) 31s (hot) |
| Moment of inertia (J) | 0.6210 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 101 lb |
Efficiency
| 50% | 86.5 |
|---|---|
| 75% | 87.5 |
| 100% | 88.5 |
Power factor
| 50% | 0.46 |
|---|---|
| 75% | 0.58 |
| 100% | 0.66 |
Electric Motors
| Frame | 182/4JM |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 960 rpm |
| Slip | 4.00 % |
| Rated voltage | 380 V |
| Rated current | 3.66 A |
| L. R. Amperes | 22.0 A |
| LRC | 6.0x(Code J) |
| No load current | 1.90 A |
| Rated torque | 10.9 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 260 % |
| Locked rotor time | 36s (cold) 20s (hot) |
| Moment of inertia (J) | 0.6210 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 101 lb |
Efficiency
| 50% | 85.5 |
|---|---|
| 75% | 86.0 |
| 100% | 86.5 |
Power factor
| 50% | 0.53 |
|---|---|
| 75% | 0.65 |
| 100% | 0.72 |
Electric Motors
| Frame | 182/4JM |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 965 rpm |
| Slip | 3.50 % |
| Rated voltage | 400 V |
| Rated current | 3.61 A |
| L. R. Amperes | 24.2 A |
| LRC | 6.7x(Code K) |
| No load current | 2.05 A |
| Rated torque | 10.9 ft.lb |
| Locked rotor torque | 280 % |
| Breakdown torque | 310 % |
| Locked rotor time | 36s (cold) 20s (hot) |
| Moment of inertia (J) | 0.6210 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 101 lb |
Efficiency
| 50% | 85.5 |
|---|---|
| 75% | 86.5 |
| 100% | 87.0 |
Power factor
| 50% | 0.49 |
|---|---|
| 75% | 0.62 |
| 100% | 0.69 |
Electric Motors
| Frame | 182/4JM |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 965 rpm |
| Slip | 3.50 % |
| Rated voltage | 415 V |
| Rated current | 3.58 A |
| L. R. Amperes | 25.4 A |
| LRC | 7.1x(Code L) |
| No load current | 2.15 A |
| Rated torque | 10.9 ft.lb |
| Locked rotor torque | 310 % |
| Breakdown torque | 340 % |
| Locked rotor time | 36s (cold) 20s (hot) |
| Moment of inertia (J) | 0.6210 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 101 lb |
Efficiency
| 50% | 85.0 |
|---|---|
| 75% | 86.5 |
| 100% | 87.0 |
Power factor
| 50% | 0.46 |
|---|---|
| 75% | 0.59 |
| 100% | 0.67 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Pump Seal | Mechanical Seal |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
