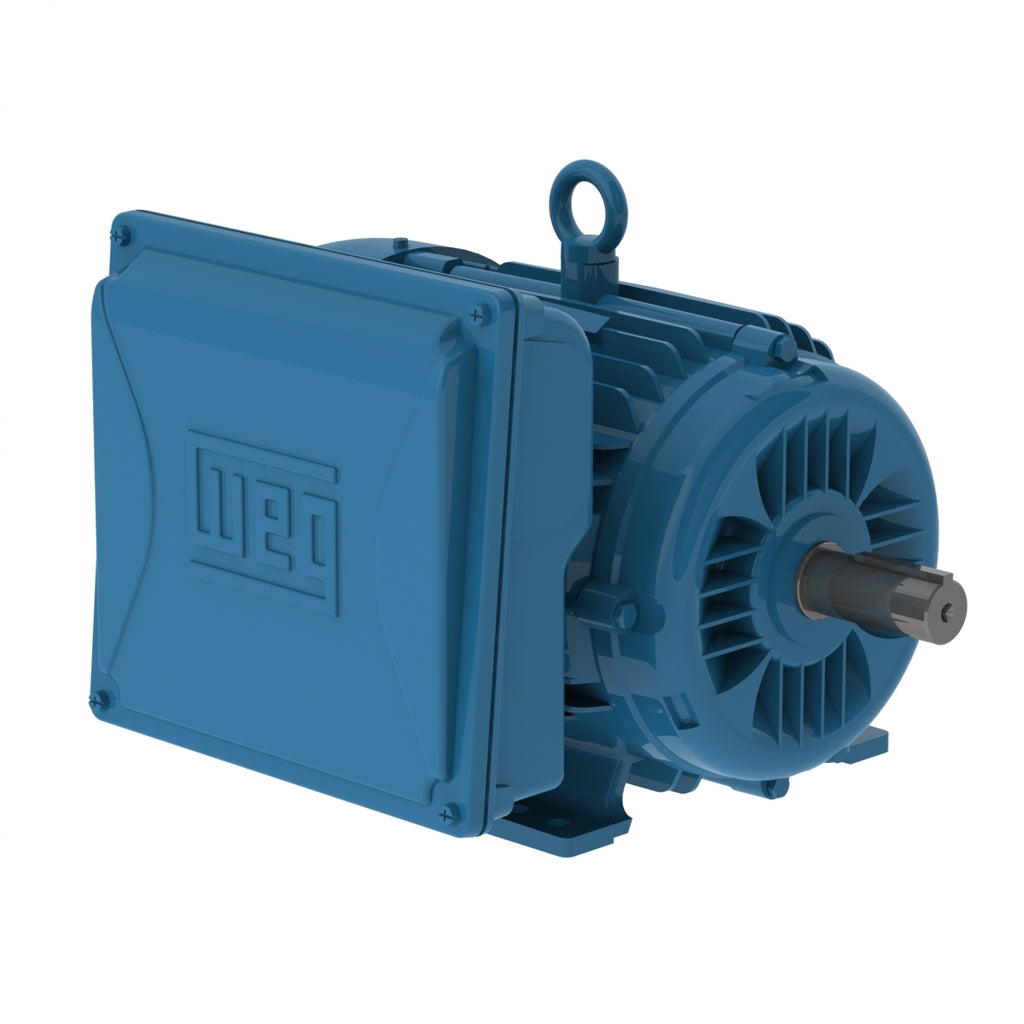

Description
High starting torque Suitable for domestic and rural power supply conditions Adaptable design suitable for a variety of applications and needs
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 208-230/460 V |
| Number of poles | 6 |
| Degree of Protection | IP55 |
| Synchronous speed | 1200 rpm |
| Output rating | 1.5 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 182/4T |
|---|---|
| Output | 1.5 HP (1.1 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1185 rpm |
| Slip | 1.25 % |
| Rated voltage | 208-230/460 V |
| Rated current | 8.50-10.2/5.10 A |
| L. R. Amperes | 69.7-83.6/41.8 A |
| LRC | 8.2x(Code P) |
| No load current | 6.04-7.00/3.50 A |
| Rated torque | 6.65 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 320 % |
| Locked rotor time | 18s (cold) 10s (hot) |
| Moment of inertia (J) | 0.5657 sq.ft.lb |
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 106 lb |
Efficiency
| 50% | 52.5 |
|---|---|
| 75% | 62.0 |
| 100% | 68.0 |
Power factor
| 50% | 0.52 |
|---|---|
| 75% | 0.62 |
| 100% | 0.69 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
