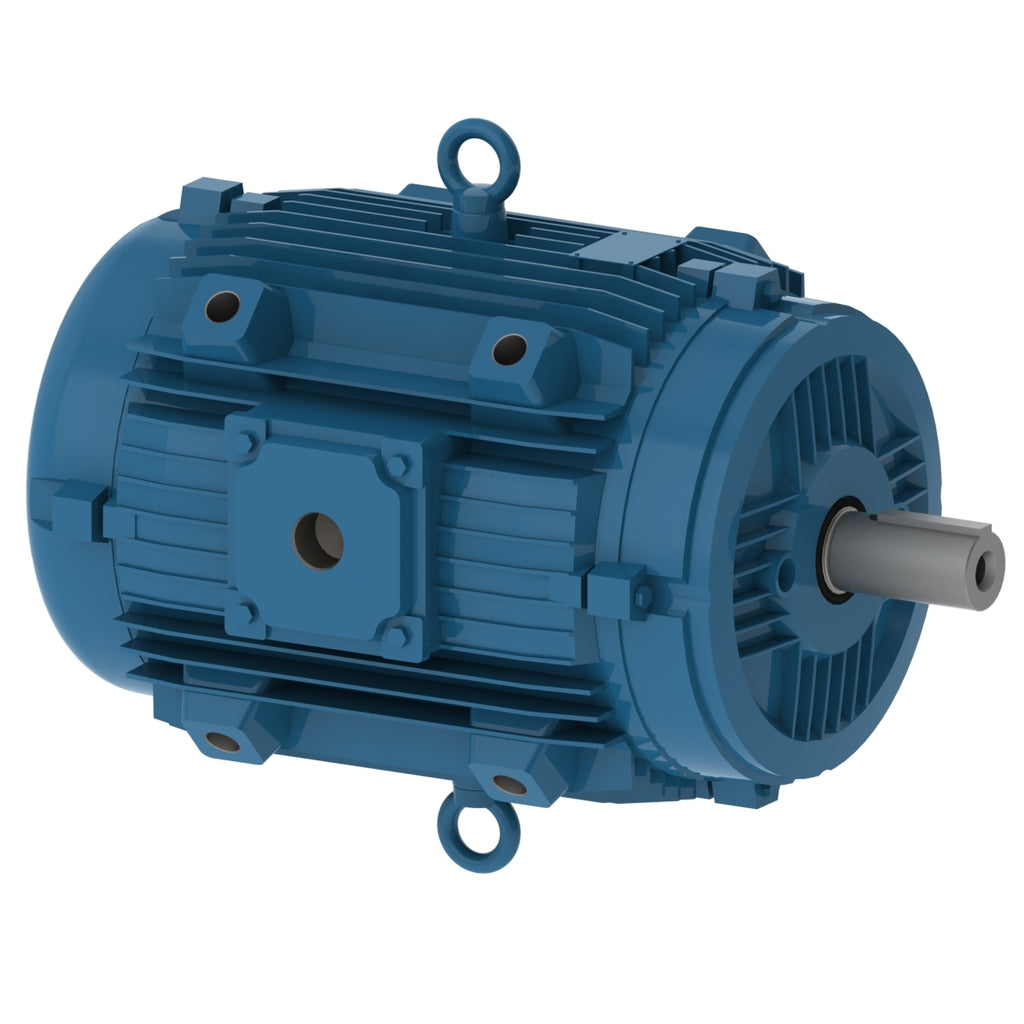

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 1 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC410 - TEAO |
Electric Motors
| Material (FERT) | 50006910 |
|---|---|
| Frame | 145T |
| Output | 1 HP (0.75 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1765 rpm |
| Slip | 1.94 % |
| Rated voltage | 230/460 V |
| Rated current | 2.98/1.49 A |
| L. R. Amperes | 25.6/12.8 A |
| LRC | 8.6x(Code M) |
| No load current | 1.87/0.935 A |
| Rated torque | 2.98 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 400 % |
| Locked rotor time | 28s (cold) 16s (hot) |
| Moment of inertia (J) | 0.0930 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | 40°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 51.0 dB(A) |
| Approx. weight³ | 39.6 lb |
Efficiency
| 50% | 77.0 |
|---|---|
| 75% | 80.0 |
| 100% | 82.5 |
Power factor
| 50% | 0.55 |
|---|---|
| 75% | 0.69 |
| 100% | 0.77 |
Electric Motors
| Material (FERT) | 50006910 |
|---|---|
| Frame | 145T |
| Output | 1 HP (0.75 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1450 rpm |
| Slip | 3.33 % |
| Rated voltage | 380 V |
| Rated current | 1.80 A |
| L. R. Amperes | 11.3 A |
| LRC | 6.3x(Code J) |
| No load current | 1.10 A |
| Rated torque | 3.62 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 240 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 0.0930 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | 40°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 39.6 lb |
Efficiency
| 50% | 78.5 |
|---|---|
| 75% | 80.0 |
| 100% | 80.0 |
Power factor
| 50% | 0.59 |
|---|---|
| 75% | 0.70 |
| 100% | 0.79 |
Electric Motors
| Material (FERT) | 50006910 |
|---|---|
| Frame | 145T |
| Output | 1 HP (0.75 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1455 rpm |
| Slip | 3.00 % |
| Rated voltage | 400 V |
| Rated current | 1.78 A |
| L. R. Amperes | 11.7 A |
| LRC | 6.6x(Code K) |
| No load current | 1.21 A |
| Rated torque | 3.61 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 270 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 0.0930 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | 40°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 39.6 lb |
Efficiency
| 50% | 77.0 |
|---|---|
| 75% | 80.0 |
| 100% | 80.0 |
Power factor
| 50% | 0.54 |
|---|---|
| 75% | 0.66 |
| 100% | 0.76 |
Electric Motors
| Material (FERT) | 50006910 |
|---|---|
| Frame | 145T |
| Output | 1 HP (0.75 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1460 rpm |
| Slip | 2.67 % |
| Rated voltage | 415 V |
| Rated current | 1.79 A |
| L. R. Amperes | 12.5 A |
| LRC | 7.0x(Code L) |
| No load current | 1.32 A |
| Rated torque | 3.60 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 300 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 0.0930 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | 40°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 39.6 lb |
Efficiency
| 50% | 75.5 |
|---|---|
| 75% | 80.0 |
| 100% | 80.0 |
Power factor
| 50% | 0.50 |
|---|---|
| 75% | 0.63 |
| 100% | 0.73 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 3/4" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
