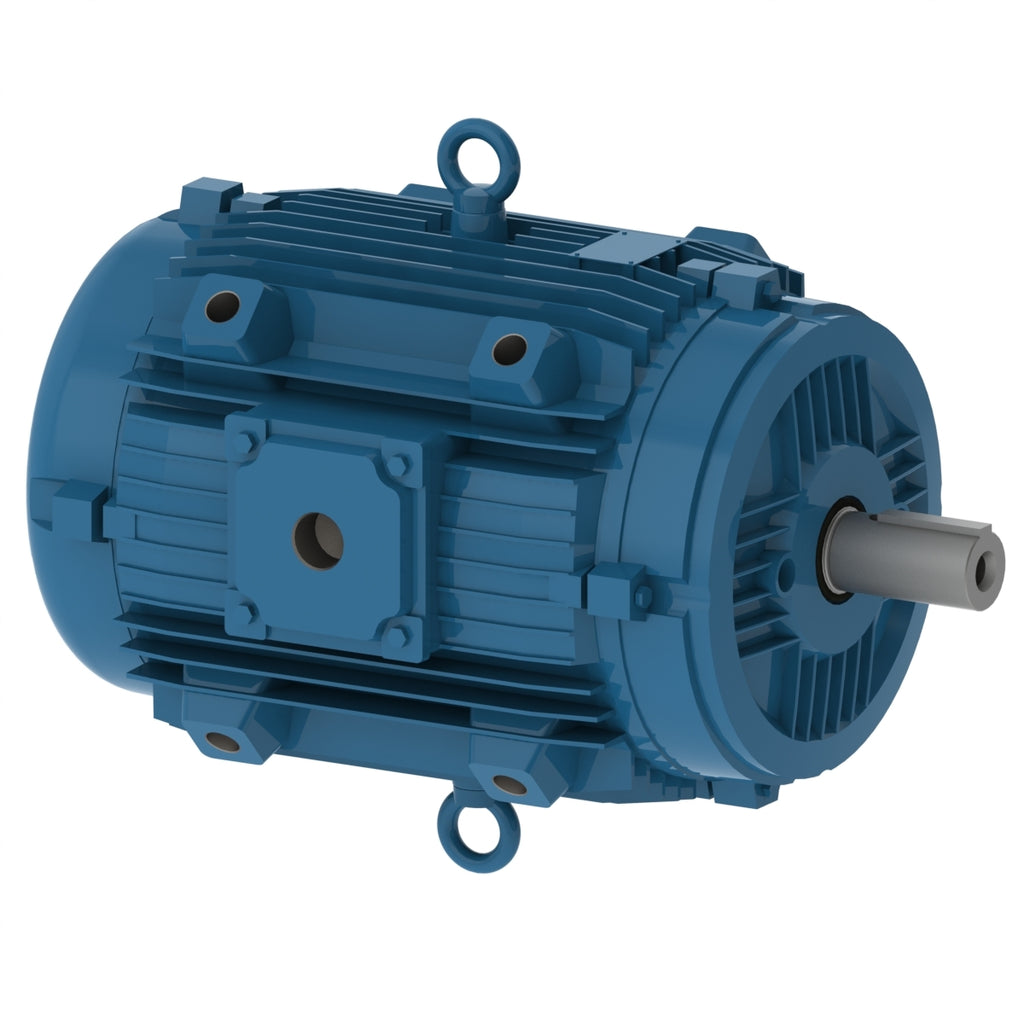

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 1.5 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC410 - TEAO |
Electric Motors
| Material (FERT) | 50006910 |
|---|---|
| Frame | 145T |
| Output | 1.5 HP (1.1 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3480 rpm |
| Slip | 3.33 % |
| Rated voltage | 230/460 V |
| Rated current | 4.14/2.07 A |
| L. R. Amperes | 35.2/17.6 A |
| LRC | 8.5x(Code L) |
| No load current | 2.00/1.00 A |
| Rated torque | 2.26 ft.lb |
| Locked rotor torque | 300 % |
| Breakdown torque | 400 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 0.0361 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | 40°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 39.8 lb |
Efficiency
| 50% | 78.5 |
|---|---|
| 75% | 81.5 |
| 100% | 82.5 |
Power factor
| 50% | 0.64 |
|---|---|
| 75% | 0.74 |
| 100% | 0.81 |
Electric Motors
| Material (FERT) | 50006910 |
|---|---|
| Frame | 145T |
| Output | 1.5 HP (1.1 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2860 rpm |
| Slip | 4.67 % |
| Rated voltage | 380 V |
| Rated current | 2.36 A |
| L. R. Amperes | 17.5 A |
| LRC | 7.4x(Code J) |
| No load current | 1.00 A |
| Rated torque | 2.75 ft.lb |
| Locked rotor torque | 280 % |
| Breakdown torque | 300 % |
| Locked rotor time | 19s (cold) 11s (hot) |
| Moment of inertia (J) | 0.0361 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | 40°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 39.8 lb |
Efficiency
| 50% | 78.5 |
|---|---|
| 75% | 81.5 |
| 100% | 81.5 |
Power factor
| 50% | 0.71 |
|---|---|
| 75% | 0.82 |
| 100% | 0.87 |
Electric Motors
| Material (FERT) | 50006910 |
|---|---|
| Frame | 145T |
| Output | 1.5 HP (1.1 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2870 rpm |
| Slip | 4.33 % |
| Rated voltage | 400 V |
| Rated current | 2.32 A |
| L. R. Amperes | 18.1 A |
| LRC | 7.8x(Code K) |
| No load current | 1.10 A |
| Rated torque | 2.74 ft.lb |
| Locked rotor torque | 320 % |
| Breakdown torque | 330 % |
| Locked rotor time | 19s (cold) 11s (hot) |
| Moment of inertia (J) | 0.0361 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | 40°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 39.8 lb |
Efficiency
| 50% | 77.0 |
|---|---|
| 75% | 80.0 |
| 100% | 81.5 |
Power factor
| 50% | 0.67 |
|---|---|
| 75% | 0.78 |
| 100% | 0.84 |
Electric Motors
| Material (FERT) | 50006910 |
|---|---|
| Frame | 145T |
| Output | 1.5 HP (1.1 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2880 rpm |
| Slip | 4.00 % |
| Rated voltage | 415 V |
| Rated current | 2.29 A |
| L. R. Amperes | 18.5 A |
| LRC | 8.1x(Code K) |
| No load current | 1.20 A |
| Rated torque | 2.74 ft.lb |
| Locked rotor torque | 360 % |
| Breakdown torque | 360 % |
| Locked rotor time | 19s (cold) 11s (hot) |
| Moment of inertia (J) | 0.0361 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | 40°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 39.8 lb |
Efficiency
| 50% | 75.5 |
|---|---|
| 75% | 80.0 |
| 100% | 81.5 |
Power factor
| 50% | 0.64 |
|---|---|
| 75% | 0.75 |
| 100% | 0.82 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 3/4" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
