Description

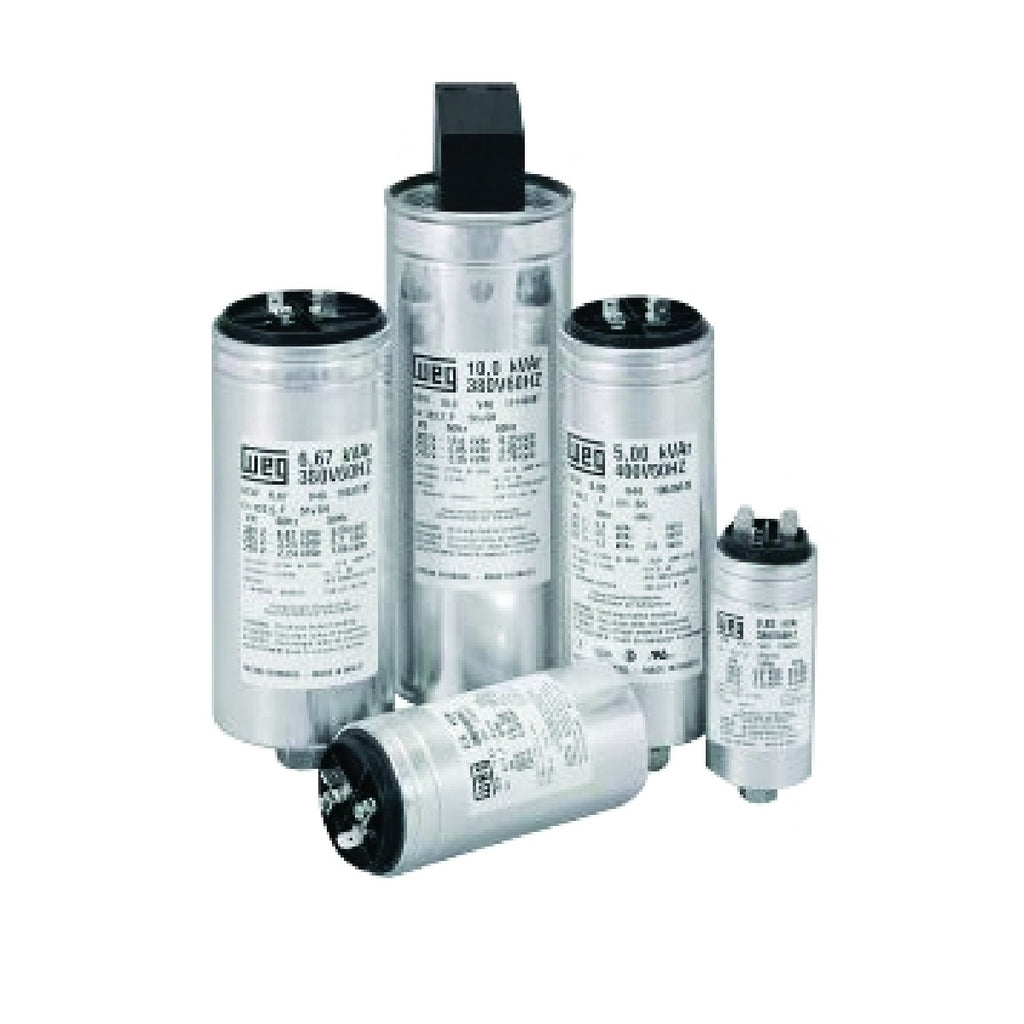

Developed using self-healing, metalized polypropylene film, they feature a safety interrupting device against internal overpressure. Dielectric losses below 0.4 W/kVAr.
| Complement | Does not contain |
|---|---|
| Reactive power | 5.0 kVAr |
| Rated operational voltage Ue | 535V60Hz |
| Operational frequency | 60 Hz |
| Terminal type | Screw |
| Series | B |
Attributes
| Series | B |
|---|---|
| Rated capacitance | 46.3 µF |
| Capacitance tolerance | ±5% |
| Lifespan | 100.000 h |
| Temperature class | -25/D |
| Max. short circuit capacity | 10 kA |
| Discharge resistance conection | Not applicable |
| Impregnation | Polyurethane resin |
| Protection degree | IP00 |
| Gross weight | 0,563 kg / 1.241 lb |
