Soft-Starters are static starters that accelerate, decelerate and protect three-phase induction motors in power ratings from 2.2 to 1375 kW.

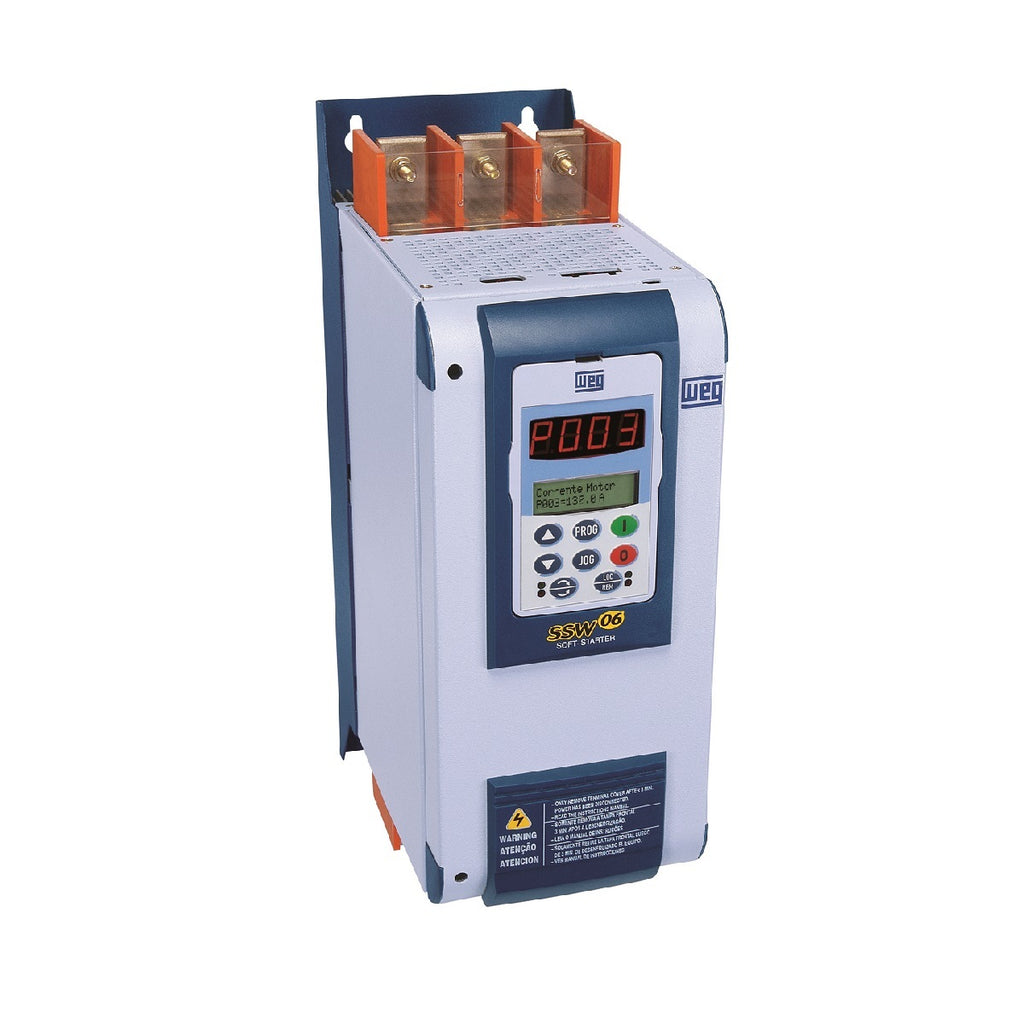

SSW06 Series Soft-Starter are static starters intended to accelerate, decelerate and protection of three phase induction motors. The control of the voltage applied to the motor by the means of the thyristors triggering angle variation, allows the soft-start to start and stop smoothly an electric motor.
With adequate adjustments of the variables, the torque produced is adjusted to the needs of the load, so the required current is going to be as low as possible for the starting procedure.
| Rated current |
950 A |
| Power supply |
575-690 V |
| Enclosure |
IP00 |
| Frame |
7 |
Attributes
| Starting duty cycle |
AC-53a 3-30:690 |
| Starting regime (with ventilation kit) |
No |
| Standard (3 leads) |
Yes |
| Inside delta (6 leads) |
Yes 575V, no 690V |
| SoftPLC (ladder programming) |
Yes, 1K bytes |
| Voltage ramp |
Yes |
| Voltage ramp and current limit |
Yes |
| Current limit |
No |
| Current limitation ramp |
Yes |
| Pump control |
Yes |
| Torque control |
Yes |
| Direct on line start |
No |
| Product certification |
UL, CE, CS, IRAM and C-TICK |
| Parameterization via trimpots and dip switches |
No |
| Parameterization via keypad |
Yes |
| Parameterization via software |
Superdrive G2 |
| Modbus-RTU RS-232 |
Yes |
| Modbus-RTU RS-485 |
Available with optional |
| Modbus-RTU USB |
Yes |
