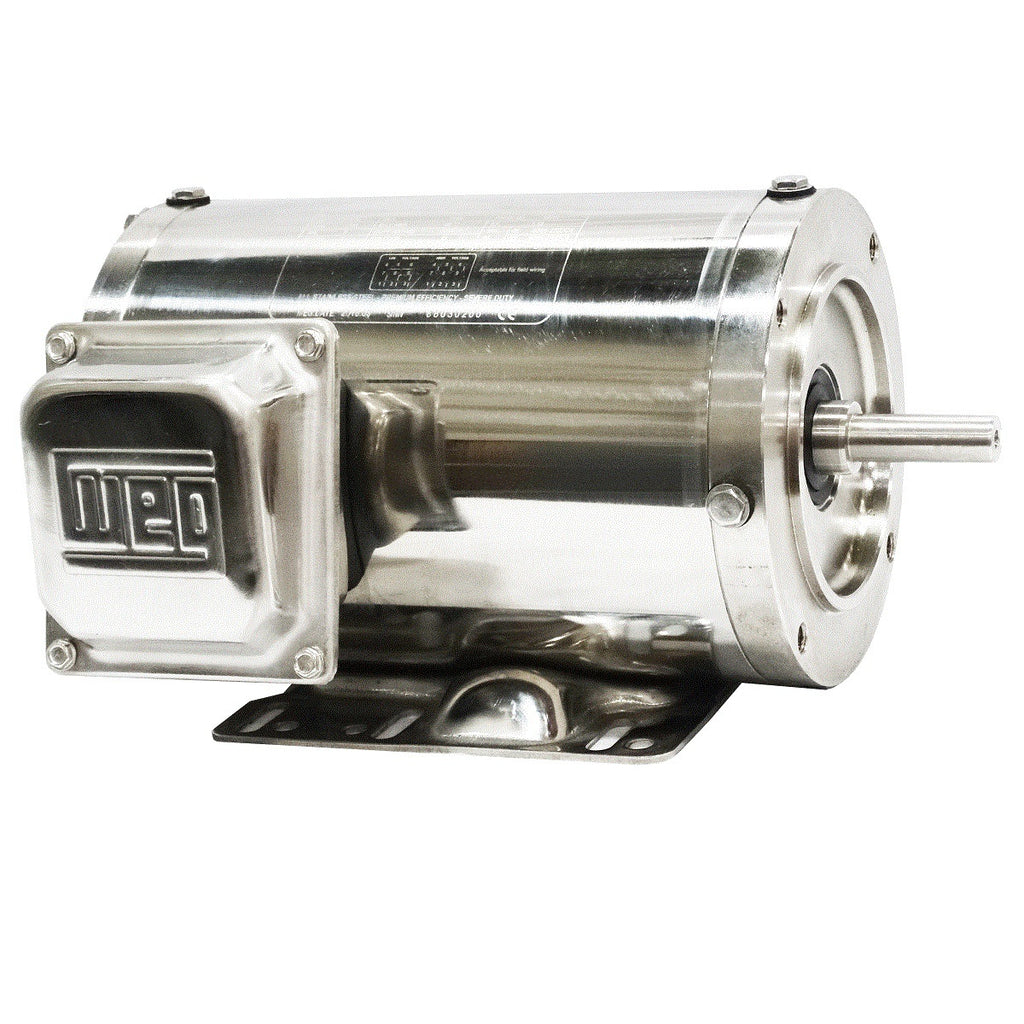

Description
| Standard | NEMA MG-1 |
|---|---|
| Frame | 143TC |
| Frequency | 60 Hz |
| Number of poles | 4 |
| Degree of Protection | IP56 |
| Synchronous speed | 1800 rpm |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | TENV |
Attributes
| Standard | NEMA MG-1 |
|---|---|
| Degree of Protection | IP56 |
| Mounting | Foot-mounted |
| Output rating | 1 HP |
| Enclosure | TENV |
| Frequency | 60 Hz |
| Flange | C |
| Frame Material | Stainless steel |
| Efficiency | NEMA Premium Efficiency |
| Motor Application | Shark |
| Terminal box¹ | Left position |
| Frame | 143TC |
| Voltage | 230/460 V |
| Synchronous speed | 1800 rpm |
| Number of Poles | 04 |
