Description

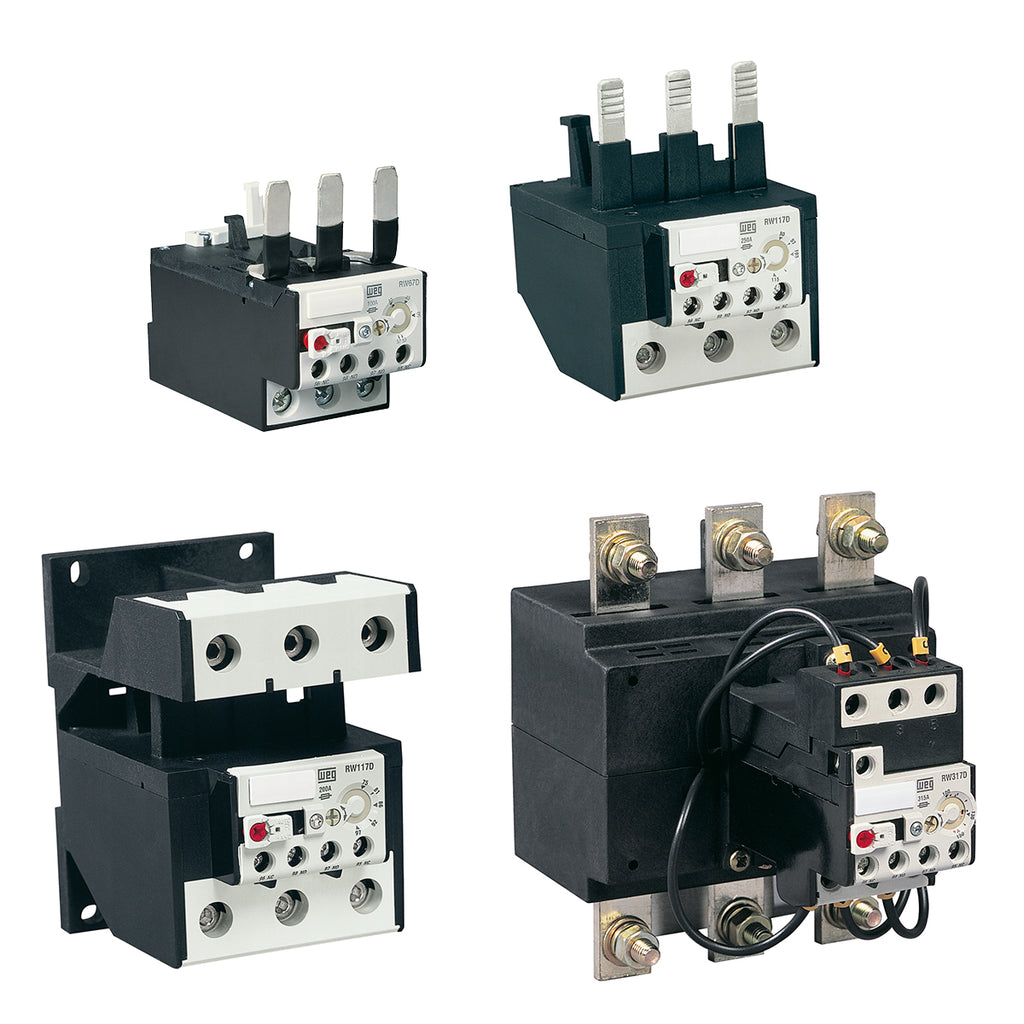

Protection relays for electric motors up to 840A. Assembled directly to the contactors or to an individual base. Trigger classification 10.
| Reference | RW67 |
|---|---|
| Number of poles | 2 poles |
| Mounting type | Direct |
| Contactor model | CWM32/40 |
| Current range | 32-50 A |
Attributes
| Reference | RW67 |
|---|---|
| Number of poles | 2 poles |
| Mounting type | Direct |
| Contactor model | CWM32/40 |
| Mounting configuration | 1D |
| Rated insulation voltage Ui | 690 V |
| Rated insulation voltage Ui (acc. to UL) | 600 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated operational frequency | 25...400Hz |
| Suitable for use with DC loads | Yes |
| Maximum operating frequency | 15 ops./h |
| Degree of protection - main terminals | IP10 |
| Degree of protection - auxiliary terminals | IP20 |
| Current range | 32-50 A |
| Max. Fuse (type 2 coordination) | 125gL/gG |
| Short circuit protection with fuses (gL/gG) | 6gL/gG |
| Height | 73 mm / 2.87 in |
| Width | 50 mm / 1.97 in |
| Depth | 106 mm / 4.17 in |
| Gross weight | 0,320 kg / 0.71 lb |
