Description

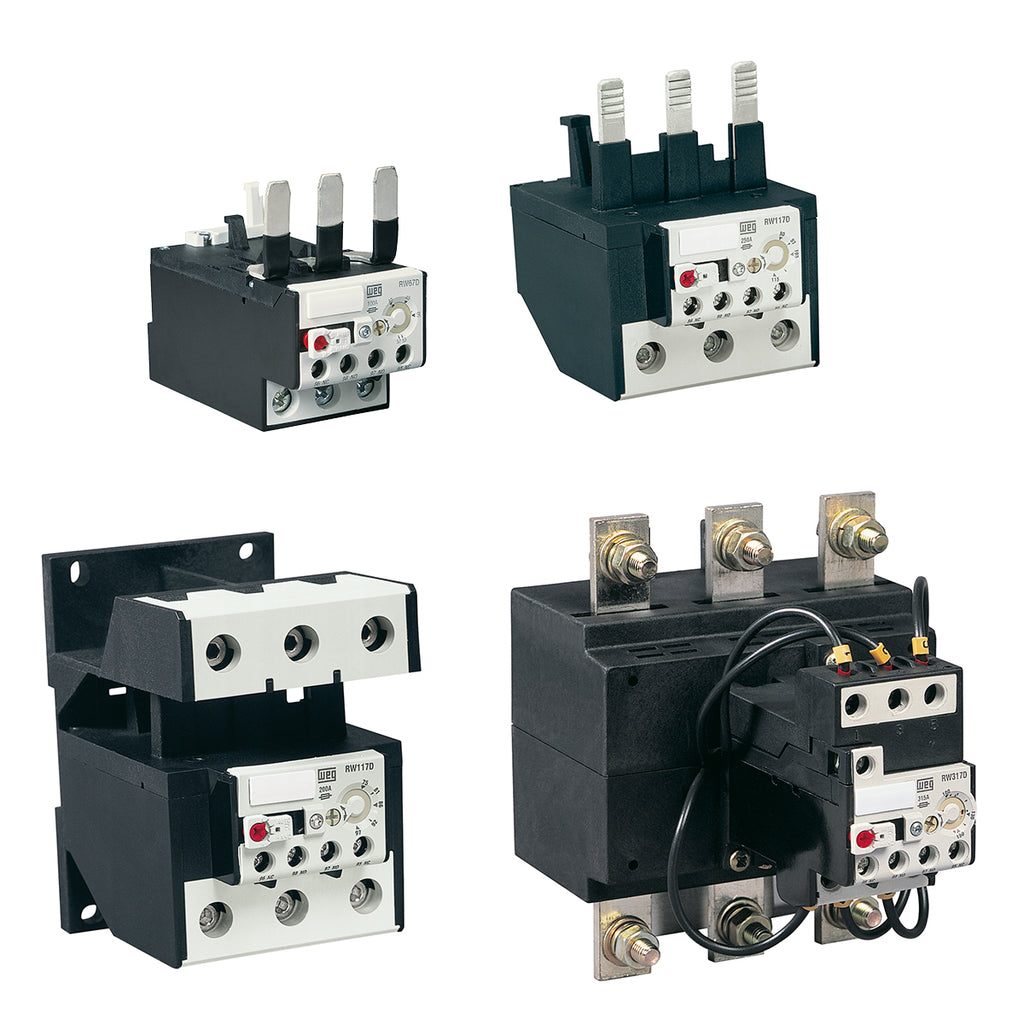

Protection relays for electric motors up to 840A. Assembled directly to the contactors or to an individual base. Trigger classification 10.
| Reference | RW317 |
|---|---|
| Number of poles | 3 poles |
| Mounting type | Individual |
| Contactor model | CWM112-450 |
| Current range | 100-150 A |
Attributes
| Reference | RW317 |
|---|---|
| Number of poles | 3 poles |
| Mounting type | Individual |
| Contactor model | CWM112-450 |
| Mounting configuration | 1D |
| Rated insulation voltage Ui | 1000 V |
| Rated insulation voltage Ui (acc. to UL) | 600 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Rated operational frequency | 50/60Hz |
| Suitable for use with DC loads | No |
| Maximum operating frequency | 15 ops./h |
| Degree of protection - main terminals | IP00 |
| Degree of protection - auxiliary terminals | IP20 |
| Current range | 100-150 A |
| Max. Fuse (type 2 coordination) | 315gL/gG |
| Short circuit protection with fuses (gL/gG) | 6gL/gG |
| Height | 155 mm / 6.10 in |
| Width | 115 mm / 4.53 in |
| Depth | 166 mm / 6.54 in |
| Gross weight | 1,985 kg / 4.38 lb |
