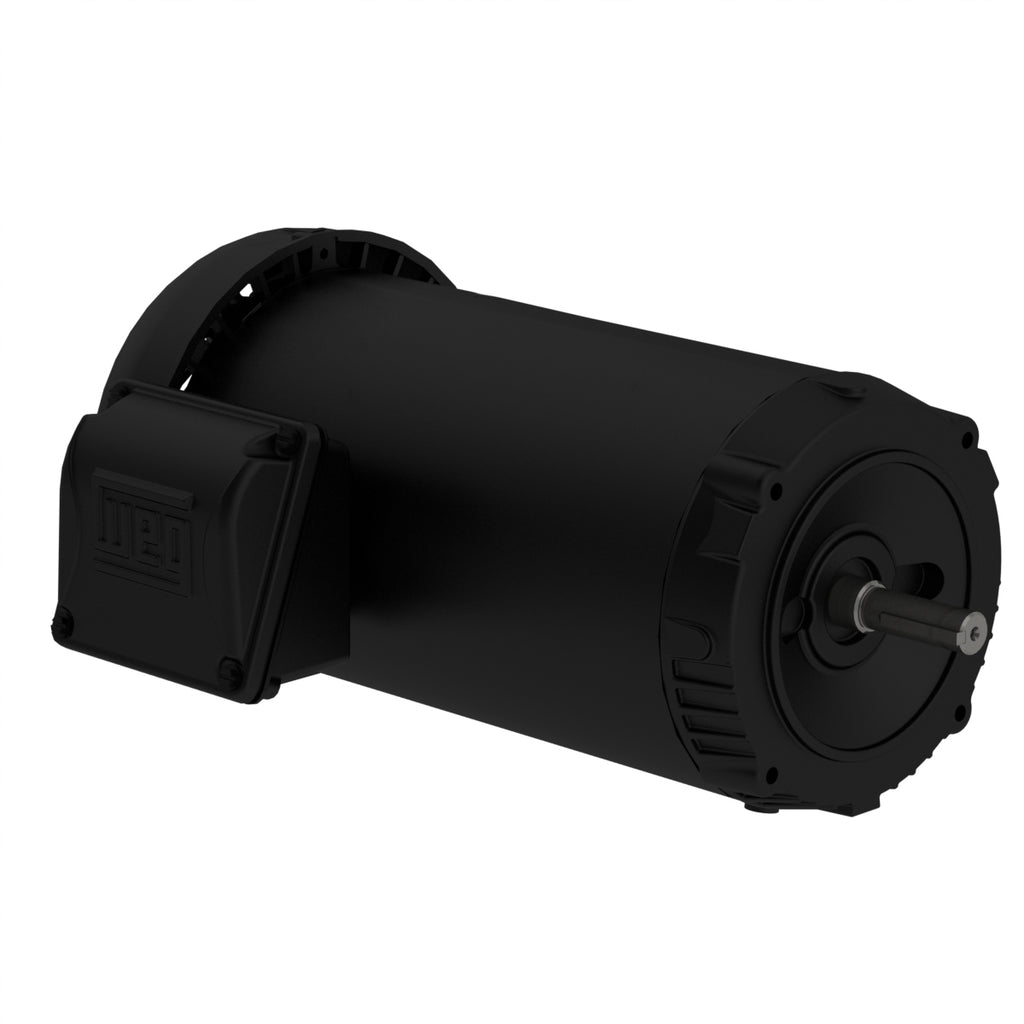

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 208-230/460//190-220/380-415 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 0.33 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 56C |
|---|---|
| Output | 0.33 HP (0.25 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1765 rpm |
| Slip | 1.94 % |
| Rated voltage | 208-230/460 V |
| Rated current | 1.38-1.25/0.624 A |
| L. R. Amperes | 9.80-8.86/4.43 A |
| LRC | 7.1x(Code M) |
| No load current | 0.810-0.940/0.470 A |
| Rated torque | 0.982 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 300 % |
| Locked rotor time | 55s (cold) 31s (hot) |
| Moment of inertia (J) | 0.0517 sq.ft.lb |
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 19.6 lb |
Efficiency
| 50% | 64.0 |
|---|---|
| 75% | 72.0 |
| 100% | 74.0 |
Power factor
| 50% | 0.47 |
|---|---|
| 75% | 0.58 |
| 100% | 0.68 |
Electric Motors
| Frame | 56C |
|---|---|
| Output | 0.33 HP (0.25 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1455 rpm |
| Slip | 3.00 % |
| Rated voltage | 190-220/380 V |
| Rated current | 1.36-1.17/0.678 A |
| L. R. Amperes | 7.59-6.56/3.80 A |
| LRC | 5.6x(Code J) |
| No load current | 0.924-0.798/0.462 A |
| Rated torque | 1.19 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 260 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 0.0517 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 (1.00 @ 208V) |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 19.6 lb |
Efficiency
| 50% | 66.7 |
|---|---|
| 75% | 72.0 |
| 100% | 73.7 |
Power factor
| 50% | 0.55 |
|---|---|
| 75% | 0.67 |
| 100% | 0.76 |
Electric Motors
| Frame | 56C |
|---|---|
| Output | 0.33 HP (0.25 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1465 rpm |
| Slip | 2.33 % |
| Rated voltage | 415 V |
| Rated current | 0.690 A |
| L. R. Amperes | 4.21 A |
| LRC | 6.1x(Code L) |
| No load current | 0.534 A |
| Rated torque | 1.18 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 320 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 0.0517 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 (1.00 @ 208V) |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 19.6 lb |
Efficiency
| 50% | 63.6 |
|---|---|
| 75% | 70.2 |
| 100% | 73.1 |
Power factor
| 50% | 0.48 |
|---|---|
| 75% | 0.60 |
| 100% | 0.69 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 0.881" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
