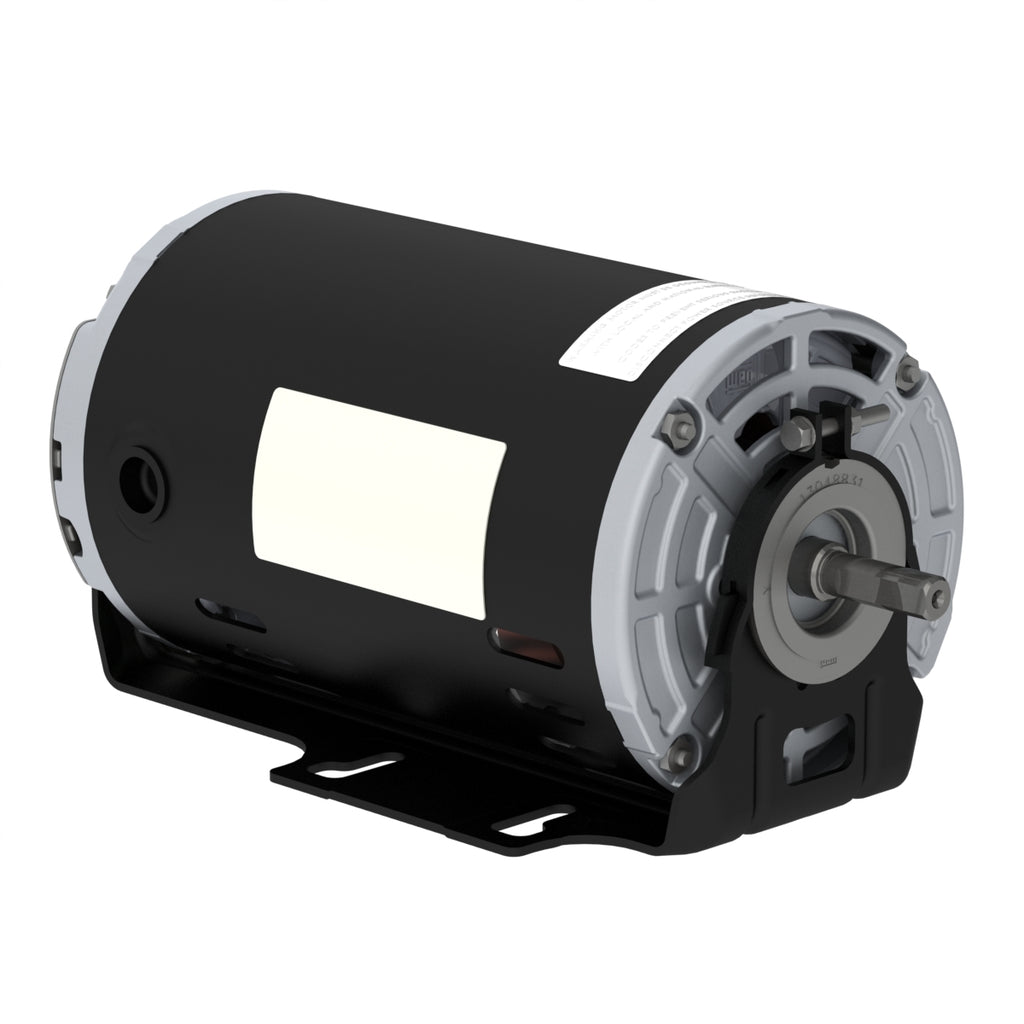

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115 V |
| Number of poles | 4 |
| Synchronous speed | 1800 rpm |
| Output rating | 0.25 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Without Terminal Box |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 48Z |
|---|---|
| Output | 0.25 HP (0.18 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1710 rpm |
| Slip | 5.00 % |
| Rated voltage | 115 V |
| Rated current | 4.25 A |
| L. R. Amperes | 25.5 A |
| LRC | 6.0x(Code N) |
| No load current | 4.00 A |
| Rated torque | 0.768 ft.lb |
| Locked rotor torque | 150 % |
| Breakdown torque | 220 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Design | N |
| Insulation Class | F |
| Service factor | 1.35 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 22.0 lb |
Efficiency
| 50% | 42.0 |
|---|---|
| 75% | 51.0 |
| 100% | 55.0 |
Power factor
| 50% | 0.49 |
|---|---|
| 75% | 0.59 |
| 100% | 0.67 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | Not Balanced |
| Drip Cover | Without |
| Resilient Base | With |
| Overload protector (phenolic) | Without overload protector |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | Not Balanced |
| Drip Cover | Without |
| Resilient Base | With |
| Overload protector (phenolic) | Without overload protector |
