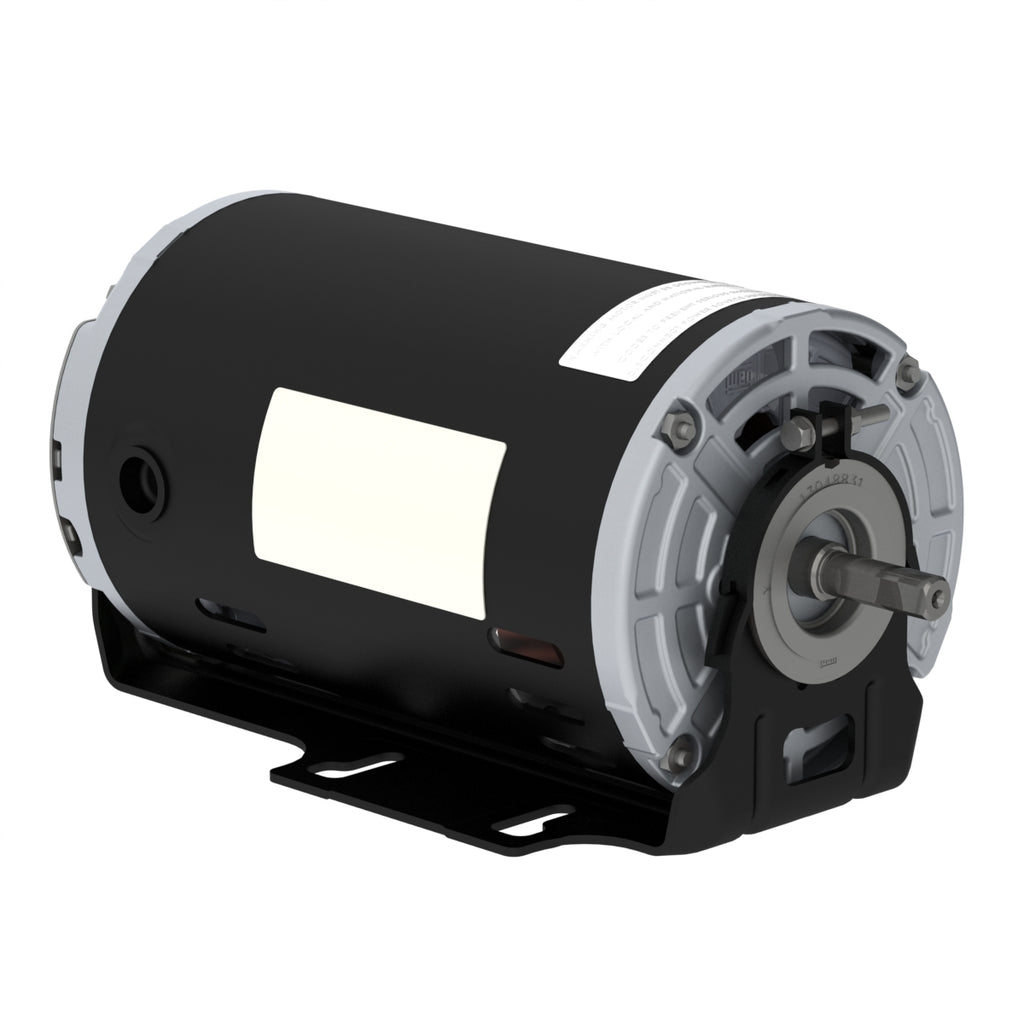

WEG .1618OS1ASPRB48Z-S Rolled Steel Split Phase 0.16 HP 4P 48Z 1Ph 115 V 60 Hz IC01 - ODP - Foot-mounted


Price:
Sale price$200.20

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 0.16 HP
Mounting F-1
Flange Without
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
Electric Motors
Frame 48Z
Output 0.16 HP (0.12 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1725 rpm
Slip 4.17 %
Rated voltage 115 V
Rated current 3.04 A
L. R. Amperes 18.8 A
LRC 6.2x(Code P)
No load current 2.80 A
Rated torque 0.487 ft.lb
Locked rotor torque 130 %
Breakdown torque 270 %
Locked rotor time 10s (cold) 6s (hot)
Design N
Insulation Class F
Service factor 1.35
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 16.0 lb
Efficiency
50% 38.0
75% 46.0
100% 50.5
Power factor
50% 0.50
75% 0.59
100% 0.68
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base With
Overload protector (phenolic) Without overload protector
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base With
Overload protector (phenolic) Without overload protector
