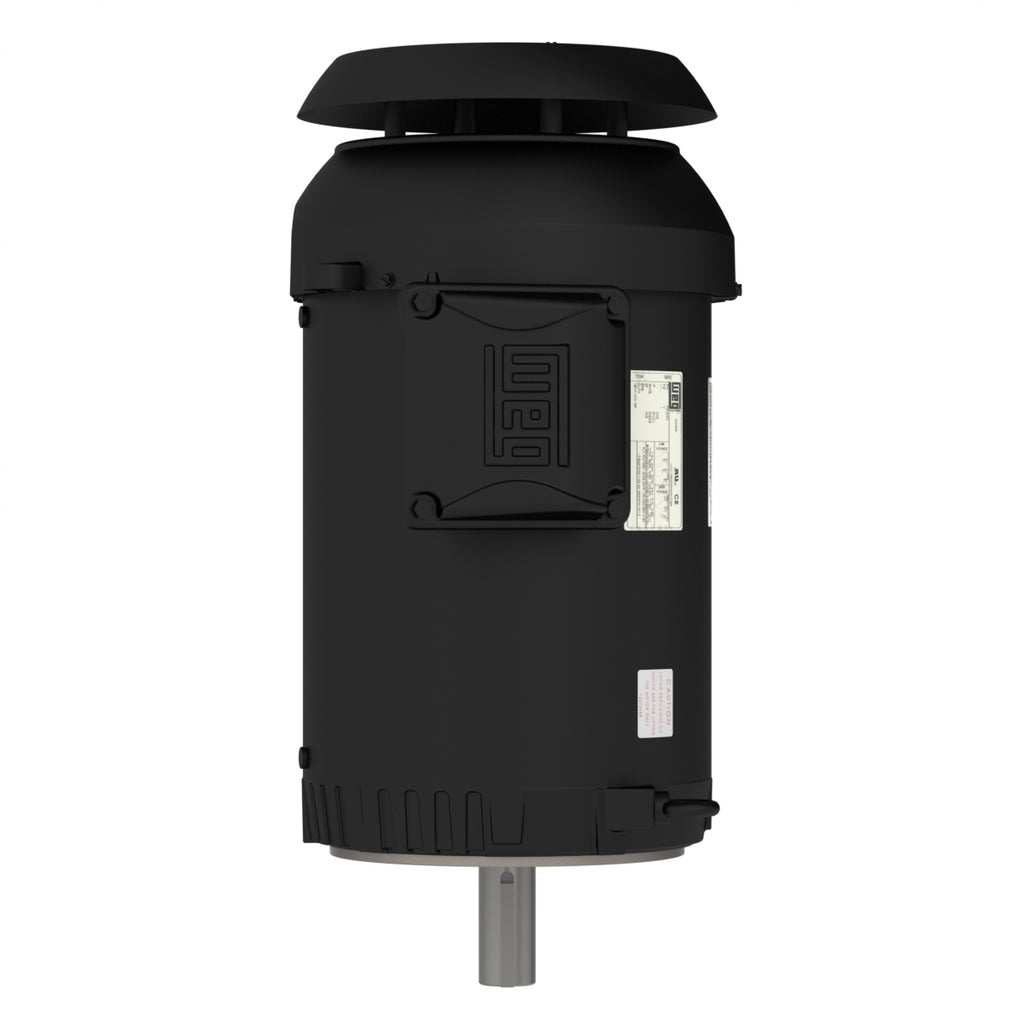

WEG 00312ET3ER213TC-S Rolled Steel NEMA Premium Efficiency 3 HP 6P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless


Price:
Sale price$791.56

Description

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 3 HP
Mounting W-6
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 213/5TC
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 8.34/4.17 A
L. R. Amperes 53.4/26.7 A
LRC 6.4x(Code H)
No load current 4.71/2.36 A
Rated torque 13.4 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 82s (cold) 46s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 138 lb
Efficiency
50% 85.5
75% 88.5
100% 89.5
Power factor
50% 0.55
75% 0.67
100% 0.74
Electric Motors
Frame 213/5TC
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 190-220/380 V
Rated current 9.76-8.43/4.88 A
L. R. Amperes 49.8-43.0/24.9 A
LRC 5.1x(Code F)
No load current 4.66-4.02/2.33 A
Rated torque 16.2 ft.lb
Locked rotor torque 170 %
Breakdown torque 220 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 138 lb
Efficiency
50% 86.9
75% 87.6
100% 86.7
Power factor
50% 0.62
75% 0.73
100% 0.79
Electric Motors
Frame 213/5TC
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 415 V
Rated current 4.66 A
L. R. Amperes 28.0 A
LRC 6.0x(Code H)
No load current 2.61 A
Rated torque 16.2 ft.lb
Locked rotor torque 220 %
Breakdown torque 270 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 138 lb
Efficiency
50% 86.2
75% 87.8
100% 87.6
Power factor
50% 0.55
75% 0.68
100% 0.75
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.377"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover With
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
