Description

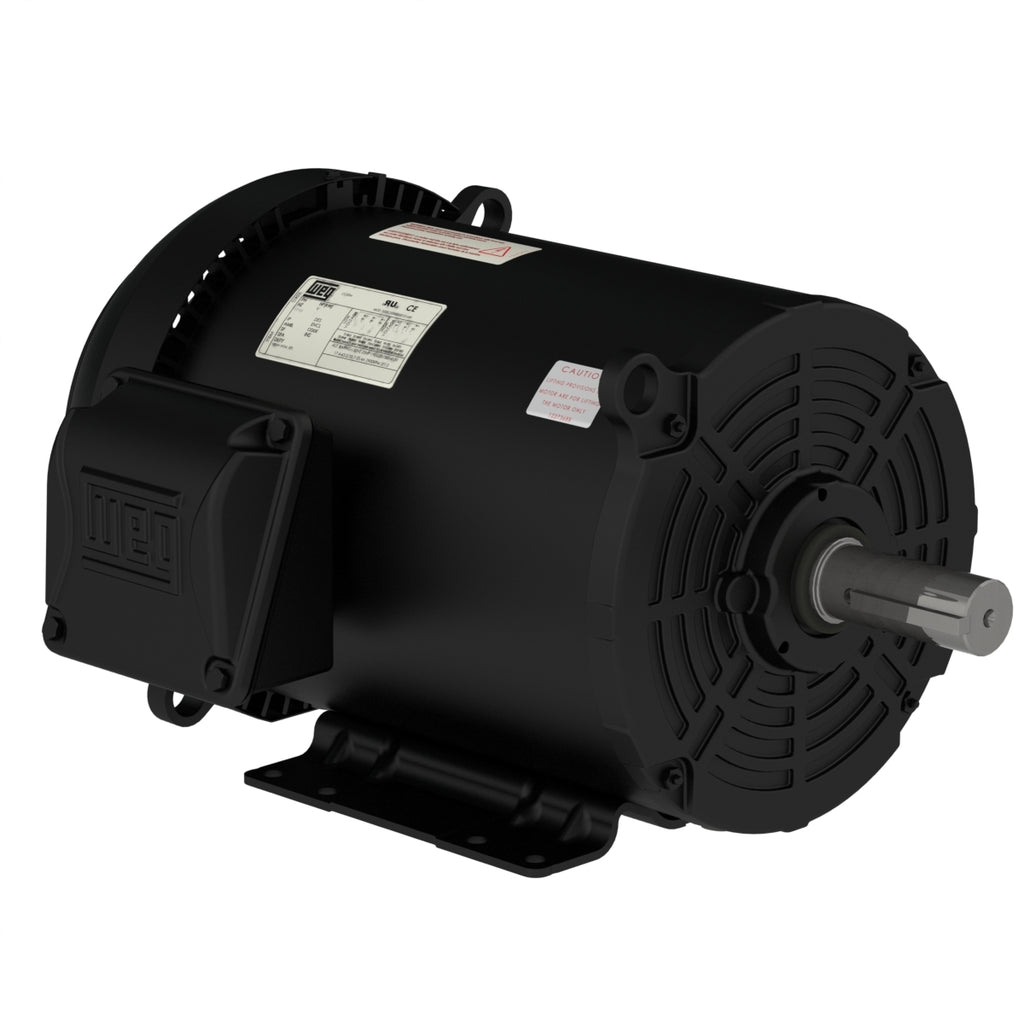

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of poles | 6 |
| Degree of Protection | IP55 |
| Synchronous speed | 1200 rpm |
| Output rating | 3 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1175 rpm |
| Slip | 2.08 % |
| Rated voltage | 230/460 V |
| Rated current | 8.34/4.17 A |
| L. R. Amperes | 53.4/26.7 A |
| LRC | 6.4x(Code H) |
| No load current | 4.71/2.36 A |
| Rated torque | 13.4 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 290 % |
| Locked rotor time | 82s (cold) 46s (hot) |
| Moment of inertia (J) | 1.08 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 55.0 dB(A) |
| Approx. weight³ | 124 lb |
Efficiency
| 50% | 85.5 |
|---|---|
| 75% | 88.5 |
| 100% | 89.5 |
Power factor
| 50% | 0.55 |
|---|---|
| 75% | 0.67 |
| 100% | 0.74 |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 970 rpm |
| Slip | 3.00 % |
| Rated voltage | 190-220/380 V |
| Rated current | 9.76-8.43/4.88 A |
| L. R. Amperes | 49.8-43.0/24.9 A |
| LRC | 5.1x(Code F) |
| No load current | 4.66-4.02/2.33 A |
| Rated torque | 16.2 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 220 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 1.08 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 53.0 dB(A) |
| Approx. weight³ | 124 lb |
Efficiency
| 50% | 86.9 |
|---|---|
| 75% | 87.6 |
| 100% | 86.7 |
Power factor
| 50% | 0.62 |
|---|---|
| 75% | 0.73 |
| 100% | 0.79 |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 975 rpm |
| Slip | 2.50 % |
| Rated voltage | 415 V |
| Rated current | 4.66 A |
| L. R. Amperes | 28.0 A |
| LRC | 6.0x(Code H) |
| No load current | 2.61 A |
| Rated torque | 16.2 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 270 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 1.08 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 53.0 dB(A) |
| Approx. weight³ | 124 lb |
Efficiency
| 50% | 86.2 |
|---|---|
| 75% | 87.8 |
| 100% | 87.6 |
Power factor
| 50% | 0.55 |
|---|---|
| 75% | 0.68 |
| 100% | 0.75 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 1.377" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
