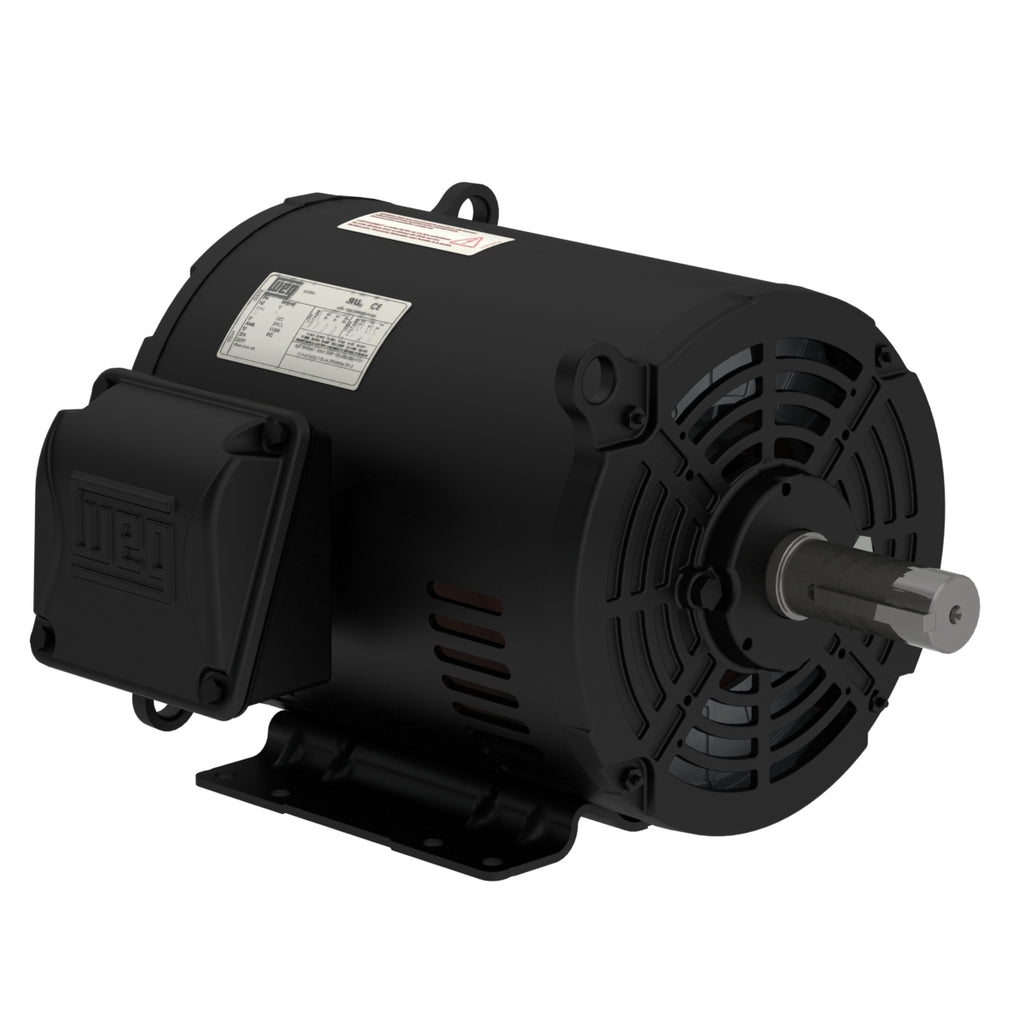

WEG 00312OT3E213T-SG Rolled Steel NEMA Premium Efficiency 3 HP 6P 213/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00312OT3E213T-SG Rolled Steel NEMA Premium Efficiency 3 HP 6P 213/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEG 00312OT3E213T-SG Rolled Steel NEMA Premium Efficiency 3 HP 6P 213/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 00312OT3E213T-SG

Dropship

Get it by Mon, Feb 09 - Sat, Feb 14

Price:
$867.75

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Synchronous speed 1200 rpm
Output rating 3 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 213/5T
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 8.32/4.16 A
L. R. Amperes 49.1/24.5 A
LRC 5.9x(Code H)
No load current 4.58/2.29 A
Rated torque 13.4 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 70s (cold) 39s (hot)
Moment of inertia (J) 0.8104 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 105 lb
Efficiency
50% 86.5
75% 87.5
100% 88.5
Power factor
50% 0.56
75% 0.68
100% 0.75
Electric Motors
Frame 213/5T
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 190-220/380 V
Rated current 9.88-8.53/4.94 A
L. R. Amperes 45.4-39.3/22.7 A
LRC 4.6x(Code E)
No load current 4.52-3.90/2.26 A
Rated torque 16.3 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.8104 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 105 lb
Efficiency
50% 85.8
75% 86.1
100% 84.6
Power factor
50% 0.63
75% 0.75
100% 0.80
Electric Motors
Frame 213/5T
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 4.69 A
L. R. Amperes 25.8 A
LRC 5.5x(Code G)
No load current 2.60 A
Rated torque 16.2 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.8104 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 105 lb
Efficiency
50% 84.9
75% 86.3
100% 85.8
Power factor
50% 0.56
75% 0.69
100% 0.76
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.377"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
