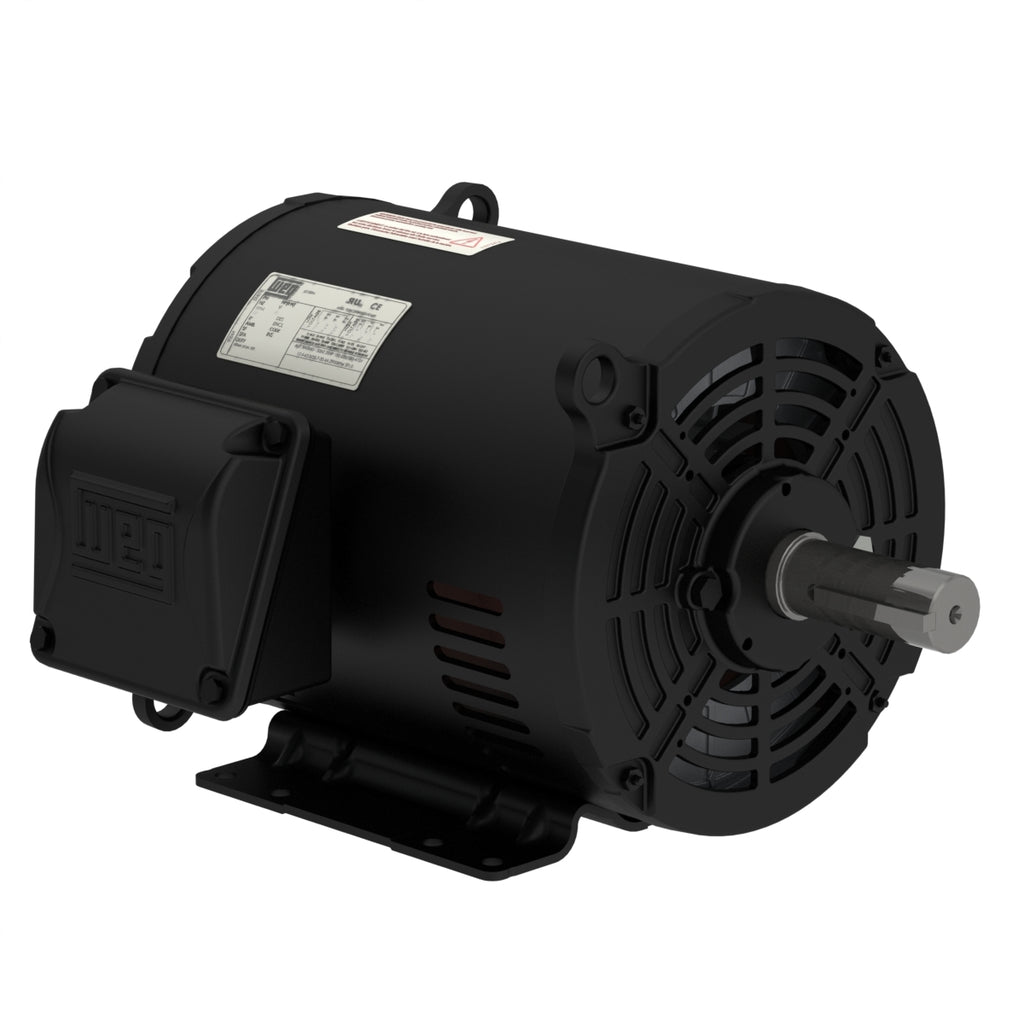

WEG 00212OT3E184T-SG Rolled Steel NEMA Premium Efficiency 2 HP 6P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00212OT3E184T-SG Rolled Steel NEMA Premium Efficiency 2 HP 6P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEG 00212OT3E184T-SG Rolled Steel NEMA Premium Efficiency 2 HP 6P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 00212OT3E184T-SG

Dropship

Get it by Fri, Jun 13 - Wed, Jun 18

Price:
$590.59

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Synchronous speed 1200 rpm
Output rating 2 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1165 rpm
Slip 2.92 %
Rated voltage 230/460 V
Rated current 5.90/2.95 A
L. R. Amperes 38.9/19.5 A
LRC 6.6x(Code J)
No load current 3.42/1.71 A
Rated torque 9.02 ft.lb
Locked rotor torque 200 %
Breakdown torque 300 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 0.2800 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 67.0 lb
Efficiency
50% 85.5
75% 86.5
100% 87.5
Power factor
50% 0.53
75% 0.66
100% 0.73
Electric Motors
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 945 rpm
Slip 5.50 %
Rated voltage 190-220/380 V
Rated current 6.96-6.01/3.48 A
L. R. Amperes 35.5-30.7/17.7 A
LRC 5.1x(Code G)
No load current 3.37-2.91/1.69 A
Rated torque 11.1 ft.lb
Locked rotor torque 160 %
Breakdown torque 220 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.2800 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 67.0 lb
Efficiency
50% 84.8
75% 84.9
100% 83.0
Power factor
50% 0.61
75% 0.73
100% 0.79
Electric Motors
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 955 rpm
Slip 4.50 %
Rated voltage 415 V
Rated current 3.36 A
L. R. Amperes 20.5 A
LRC 6.1x(Code J)
No load current 1.99 A
Rated torque 11.0 ft.lb
Locked rotor torque 210 %
Breakdown torque 270 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.2800 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 67.0 lb
Efficiency
50% 83.0
75% 84.6
100% 84.0
Power factor
50% 0.53
75% 0.66
100% 0.74
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
