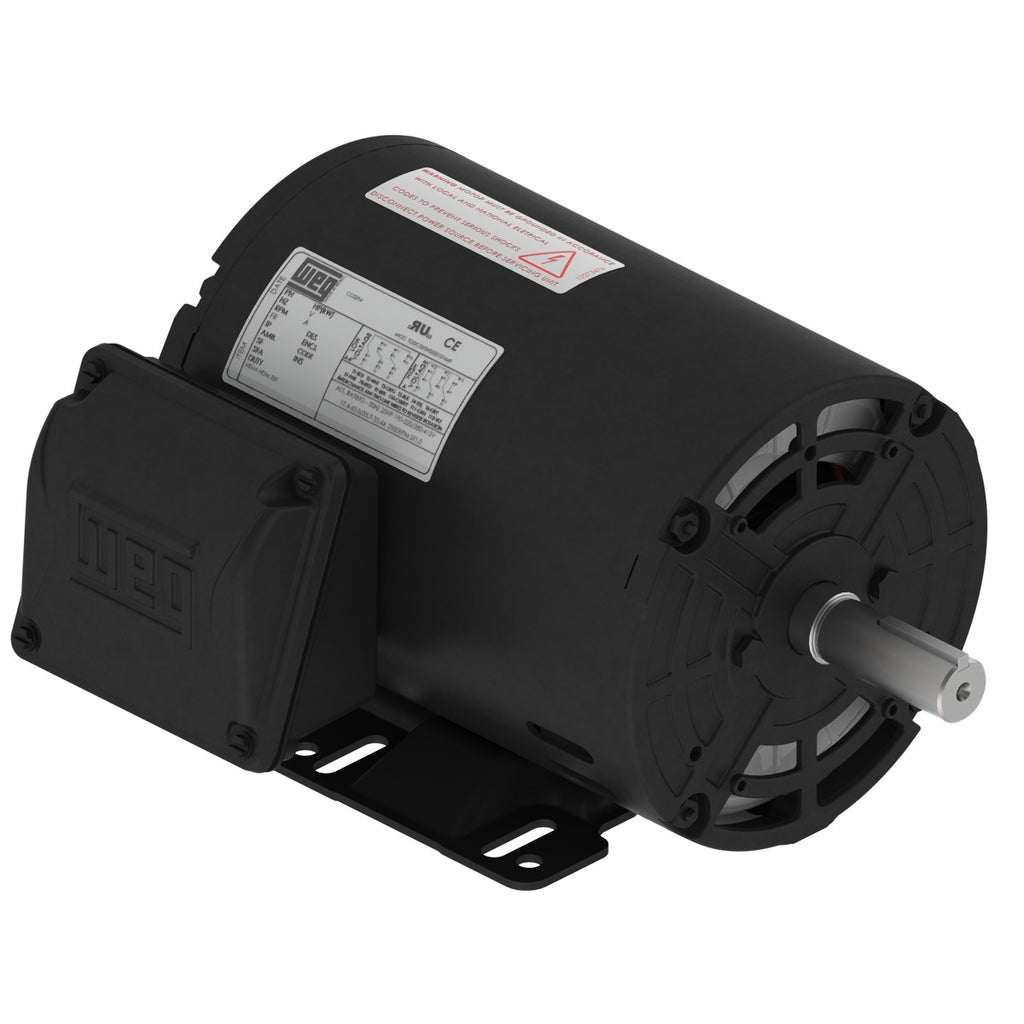

WEG 00112OT3E145T-S Rolled Steel NEMA Premium Efficiency 1 HP 6P 143/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted


Price:
Sale price$343.43

Description

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Synchronous speed 1200 rpm
Output rating 1 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 143/5T
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1150 rpm
Slip 4.17 %
Rated voltage 230/460 V
Rated current 3.30/1.65 A
L. R. Amperes 20.1/10.1 A
LRC 6.1x(Code K)
No load current 2.26/1.13 A
Rated torque 4.57 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 34.9 lb
Efficiency
50% 78.5
75% 81.5
100% 82.5
Power factor
50% 0.47
75% 0.60
100% 0.69
Electric Motors
Frame 143/5T
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 920 rpm
Slip 8.00 %
Rated voltage 190-220/380 V
Rated current 3.82-3.30/1.91 A
L. R. Amperes 17.6-15.2/8.79 A
LRC 4.6x(Code G)
No load current 2.22-1.92/1.11 A
Rated torque 5.71 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ 34.9 lb
Efficiency
50% 78.8
75% 79.5
100% 77.3
Power factor
50% 0.55
75% 0.69
100% 0.77
Electric Motors
Frame 143/5T
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 940 rpm
Slip 6.00 %
Rated voltage 415 V
Rated current 1.84 A
L. R. Amperes 9.75 A
LRC 5.3x(Code H)
No load current 1.29 A
Rated torque 5.59 ft.lb
Locked rotor torque 250 %
Breakdown torque 270 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ 34.9 lb
Efficiency
50% 76.6
75% 79.1
100% 78.6
Power factor
50% 0.48
75% 0.62
100% 0.72
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
