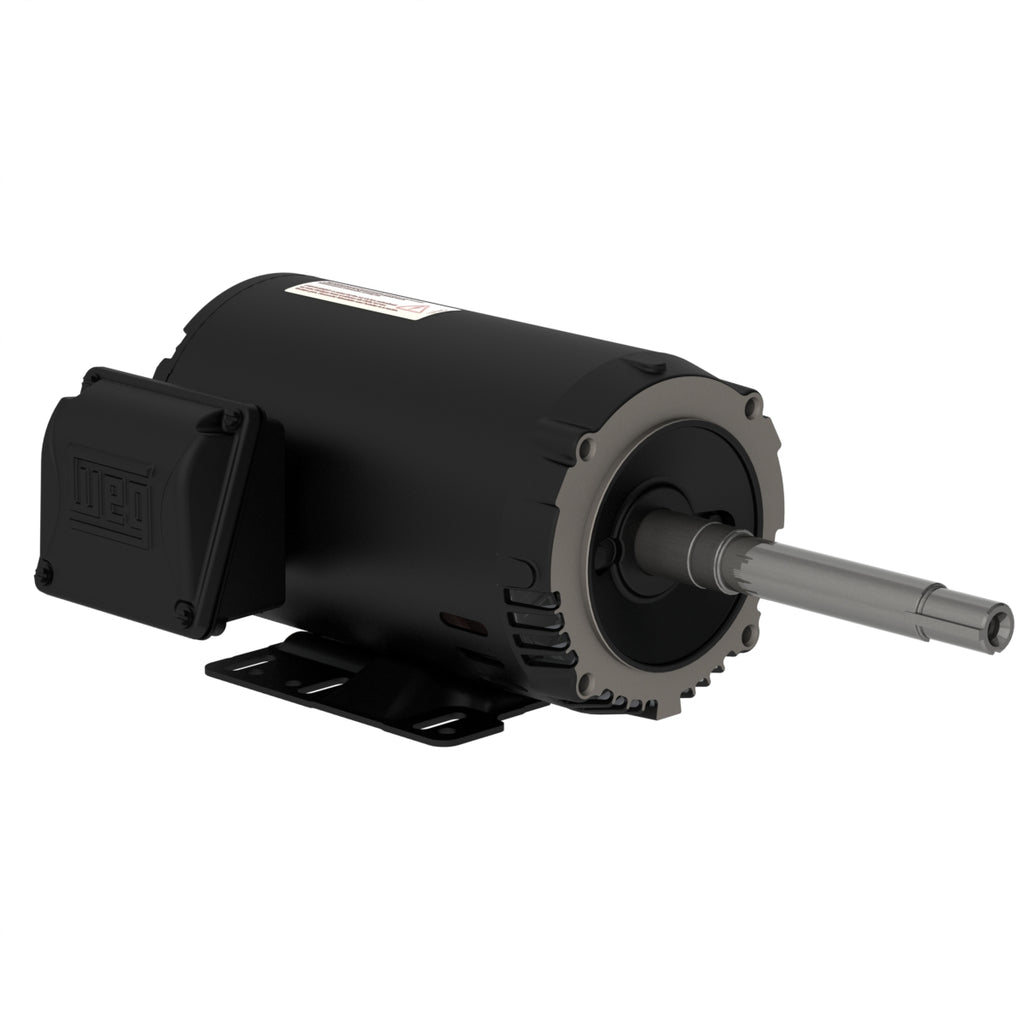

WEG 00112OT3E145JP-S Rolled Steel JP Pump NEMA Premium Efficiency 1 HP 6P 143/5JP 3PH 208-230/460 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00112OT3E145JP-S Rolled Steel JP Pump NEMA Premium Efficiency 1 HP 6P 143/5JP 3PH 208-230/460 V 60 Hz IC01 - ODP - Foot-mounted

WEG 00112OT3E145JP-S Rolled Steel JP Pump NEMA Premium Efficiency 1 HP 6P 143/5JP 3PH 208-230/460 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 00112OT3E145JP-S

Dropship

Get it by Mon, Jan 05 - Sat, Jan 10

Price:
$423.50

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 6
Output rating 1 HP
Mounting Foot-mounted
Flange C
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 143/5JP
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1150 rpm
Slip 4.17 %
Rated voltage 208-230/460 V
Rated current 3.65-3.30/1.65 A
L. R. Amperes 22.3-20.1/10.1 A
LRC 6.1x(Code K)
No load current 1.13-2.26/1.13 A
Rated torque 4.51 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ lb
Efficiency
50% 78.5
75% 81.5
100% 82.5
Power factor
50% 0.47
75% 0.60
100% 0.69
Electric Motors
Frame 143/5JP
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 945 rpm
Slip 5.50 %
Rated voltage 380 V
Rated current 1.56 A
L. R. Amperes 8.75 A
LRC 5.6x(Code J)
No load current 1.11 A
Rated torque 4.11 ft.lb
Locked rotor torque 260 %
Breakdown torque 290 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
Efficiency
50% 76.8
75% 79.4
100% 79.3
Power factor
50% 0.46
75% 0.59
100% 0.69
Electric Motors
Frame 143/5JP
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 950 rpm
Slip 5.00 %
Rated voltage 400 V
Rated current 1.57 A
L. R. Amperes 9.61 A
LRC 6.1x(Code K)
No load current 1.20 A
Rated torque 4.09 ft.lb
Locked rotor torque 300 %
Breakdown torque 330 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
Efficiency
50% 74.9
75% 78.5
100% 79.3
Power factor
50% 0.42
75% 0.55
100% 0.65
Electric Motors
Frame 143/5JP
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 955 rpm
Slip 4.50 %
Rated voltage 415 V
Rated current 1.60 A
L. R. Amperes 9.75 A
LRC 6.1x(Code L)
No load current 1.29 A
Rated torque 4.07 ft.lb
Locked rotor torque 340 %
Breakdown torque 370 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
Efficiency
50% 73.3
75% 77.6
100% 79.0
Power factor
50% 0.40
75% 0.52
100% 0.62
Electric Motors
Frame 143/5JP
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 920 rpm
Slip 8.00 %
Rated voltage 380 V
Rated current 1.91 A
L. R. Amperes 8.79 A
LRC 4.6x(Code G)
No load current 1.11 A
Rated torque 5.63 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
Efficiency
50% 78.8
75% 79.5
100% 77.3
Power factor
50% 0.55
75% 0.69
100% 0.77
Electric Motors
Frame 143/5JP
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 930 rpm
Slip 7.00 %
Rated voltage 400 V
Rated current 1.87 A
L. R. Amperes 9.54 A
LRC 5.1x(Code H)
No load current 1.20 A
Rated torque 5.57 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
Efficiency
50% 77.7
75% 79.4
100% 78.2
Power factor
50% 0.51
75% 0.65
100% 0.74
Electric Motors
Frame 143/5JP
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 940 rpm
Slip 6.00 %
Rated voltage 415 V
Rated current 1.84 A
L. R. Amperes 9.75 A
LRC 5.3x(Code H)
No load current 1.29 A
Rated torque 5.51 ft.lb
Locked rotor torque 250 %
Breakdown torque 270 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
Efficiency
50% 76.6
75% 79.1
100% 78.6
Power factor
50% 0.48
75% 0.62
100% 0.72
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C3)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Resilient Base Without
