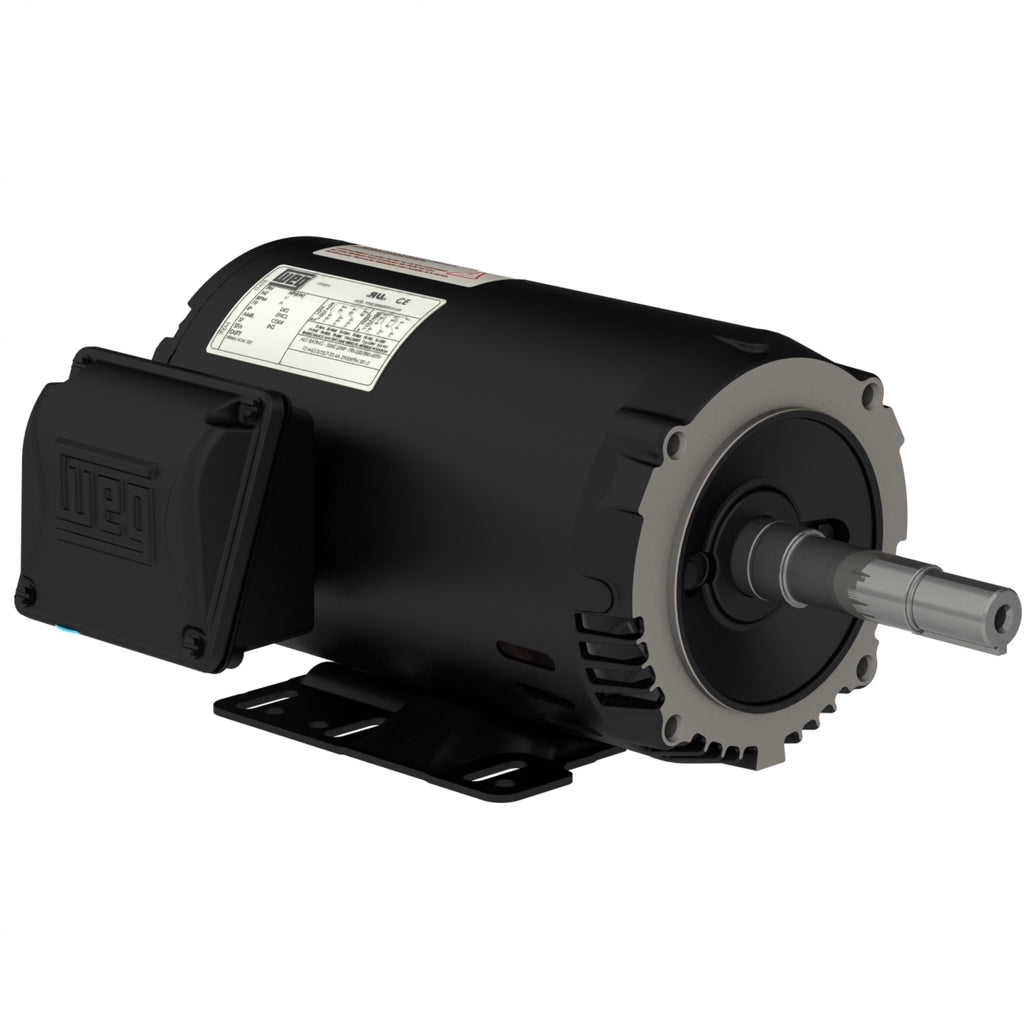

WEG 00218OT3E145JM-S Rolled Steel JM Pump NEMA Premium Efficiency 2 HP 4P 143/5JM 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted


Price:
Sale price$467.39

Description

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 143/5JM
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 230/460 V
Rated current 5.38/2.69 A
L. R. Amperes 41.4/20.7 A
LRC 7.7x(Code K)
No load current 2.75/1.38 A
Rated torque 6.04 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.1168 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 41.5 lb
Efficiency
50% 85.5
75% 86.5
100% 86.5
Power factor
50% 0.61
75% 0.74
100% 0.81
Electric Motors
Frame 143/5JM
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1410 rpm
Slip 6.00 %
Rated voltage 190-220/380 V
Rated current 6.52-5.63/3.26 A
L. R. Amperes 36.5-31.5/18.3 A
LRC 5.6x(Code G)
No load current 2.70-2.33/1.35 A
Rated torque 7.45 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1168 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 41.5 lb
Efficiency
50% 85.9
75% 85.0
100% 82.2
Power factor
50% 0.69
75% 0.80
100% 0.85
Electric Motors
Frame 143/5JM
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1430 rpm
Slip 4.67 %
Rated voltage 415 V
Rated current 3.07 A
L. R. Amperes 20.6 A
LRC 6.7x(Code J)
No load current 1.63 A
Rated torque 7.34 ft.lb
Locked rotor torque 250 %
Breakdown torque 280 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1168 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 41.5 lb
Efficiency
50% 84.6
75% 85.2
100% 83.8
Power factor
50% 0.61
75% 0.74
100% 0.81
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
