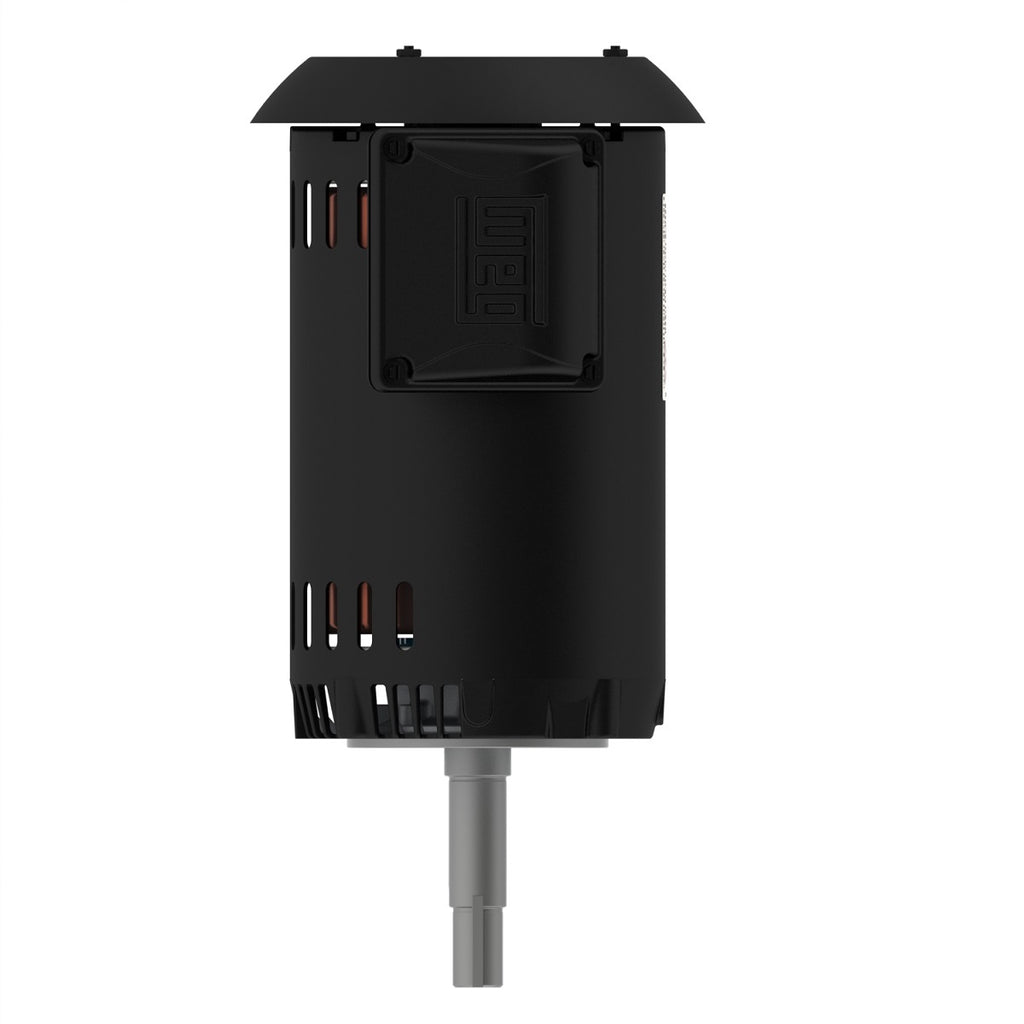

WEG 00118OT3E143JMV-S Rolled Steel JM Pump NEMA Premium Efficiency 1 HP 4P 143/5JM 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless


Price:
Sale price$416.58

Description

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting W-6
Flange C
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 143/5JM
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 3.02/1.51 A
L. R. Amperes 24.2/12.1 A
LRC 8.0x(Code L)
No load current 1.92/0.958 A
Rated torque 2.98 ft.lb
Locked rotor torque 290 %
Breakdown torque 360 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.1101 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 35.7 lb
Efficiency
50% 81.5
75% 84.0
100% 85.5
Power factor
50% 0.51
75% 0.65
100% 0.73
Electric Motors
Frame 143/5JM
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 190-220/380 V
Rated current 3.44-2.97/1.72 A
L. R. Amperes 22.4-19.3/11.2 A
LRC 6.5x(Code J)
No load current 1.88-1.63/0.942 A
Rated torque 3.63 ft.lb
Locked rotor torque 200 %
Breakdown torque 270 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1101 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 35.7 lb
Efficiency
50% 81.9
75% 83.4
100% 82.6
Power factor
50% 0.59
75% 0.73
100% 0.80
Electric Motors
Frame 143/5JM
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 1.67 A
L. R. Amperes 12.5 A
LRC 7.5x(Code L)
No load current 1.09 A
Rated torque 3.61 ft.lb
Locked rotor torque 250 %
Breakdown torque 330 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1101 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 35.7 lb
Efficiency
50% 80.1
75% 82.9
100% 83.2
Power factor
50% 0.52
75% 0.66
100% 0.75
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover With
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
