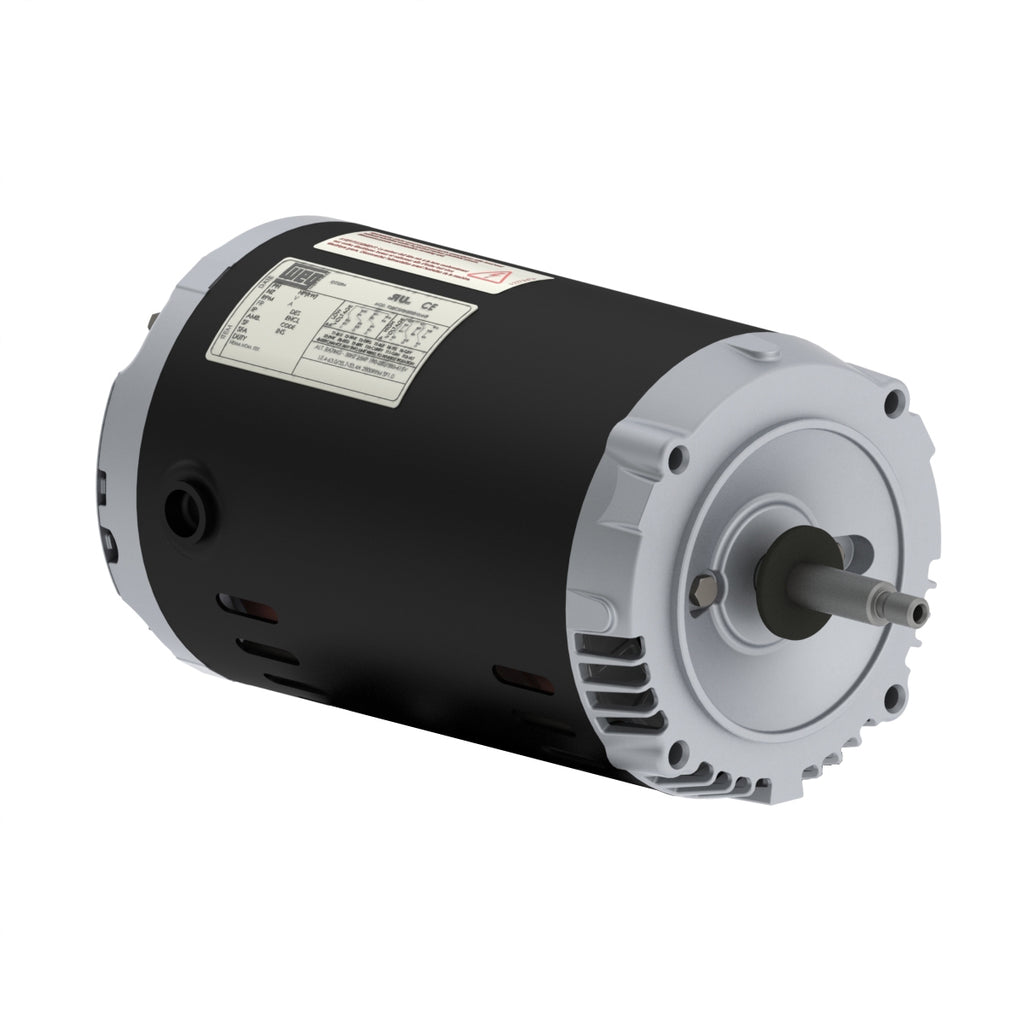

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 575 V |
| Number of poles | 2 |
| Synchronous speed | 3600 rpm |
| Output rating | 2 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Without Terminal Box |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 56J |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3470 rpm |
| Slip | 3.61 % |
| Rated voltage | 575 V |
| Rated current | 2.26 A |
| L. R. Amperes | 15.8 A |
| LRC | 7.0x(Code J) |
| No load current | 1.04 A |
| Rated torque | 3.03 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 250 % |
| Locked rotor time | 18s (cold) 10s (hot) |
| Moment of inertia (J) | 0.0774 sq.ft.lb |
| Design | A |
| Insulation Class | F |
| Service factor | 1.20 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CCW |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 27.5 lb |
Efficiency
| 50% | 77.0 |
|---|---|
| 75% | 78.5 |
| 100% | 78.5 |
Power factor
| 50% | 0.66 |
|---|---|
| 75% | 0.79 |
| 100% | 0.85 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | AISI 304 Stainless Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | Without Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 3 |
