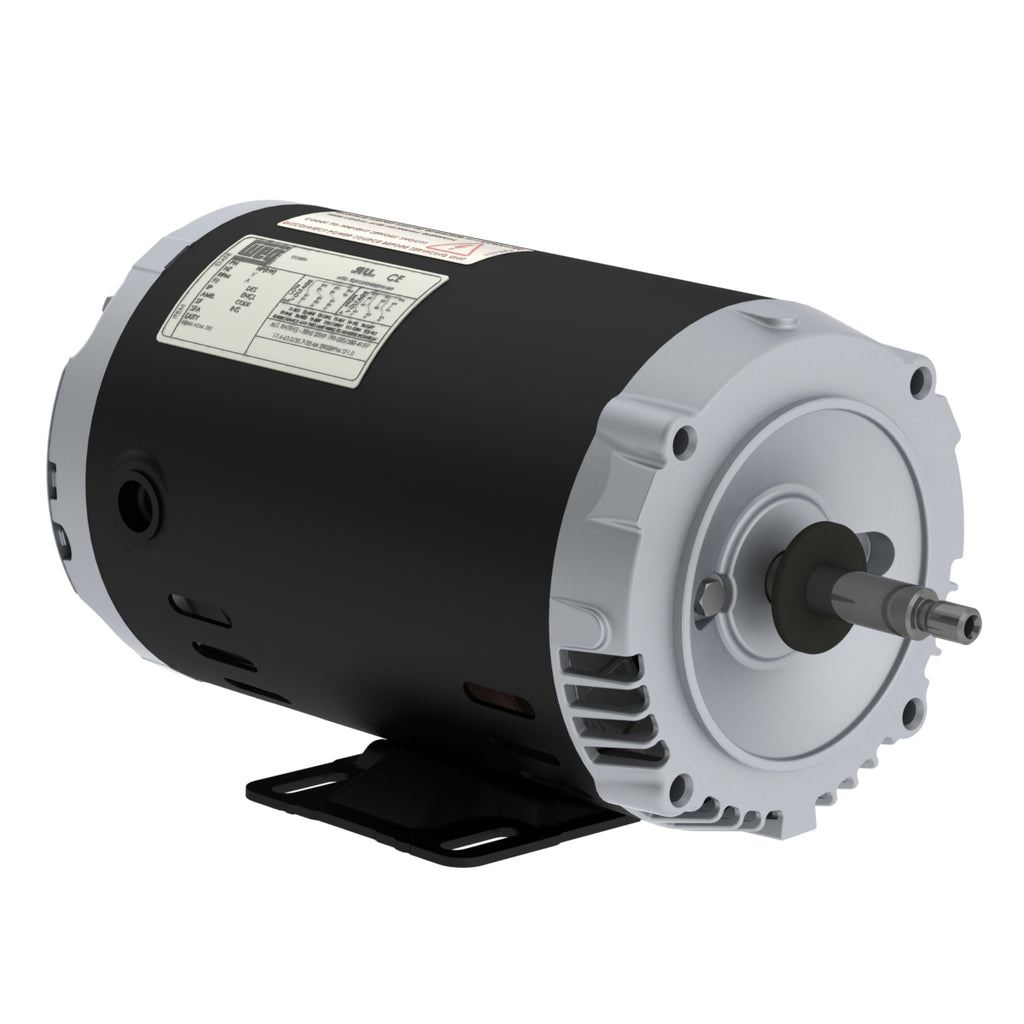

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 575 V |
| Number of poles | 2 |
| Synchronous speed | 3600 rpm |
| Output rating | 0.5 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Without Terminal Box |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 56J |
|---|---|
| Output | 0.5 HP (0.37 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3495 rpm |
| Slip | 2.92 % |
| Rated voltage | 575 V |
| Rated current | 0.718 A |
| L. R. Amperes | 4.45 A |
| LRC | 6.2x(Code K) |
| No load current | 0.520 A |
| Rated torque | 0.751 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 290 % |
| Locked rotor time | 59s (cold) 33s (hot) |
| Moment of inertia (J) | 0.0389 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.60 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CCW |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 18.5 lb |
Efficiency
| 50% | 59.5 |
|---|---|
| 75% | 66.0 |
| 100% | 70.0 |
Power factor
| 50% | 0.52 |
|---|---|
| 75% | 0.65 |
| 100% | 0.74 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | AISI 304 Stainless Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | Without Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 3 |
