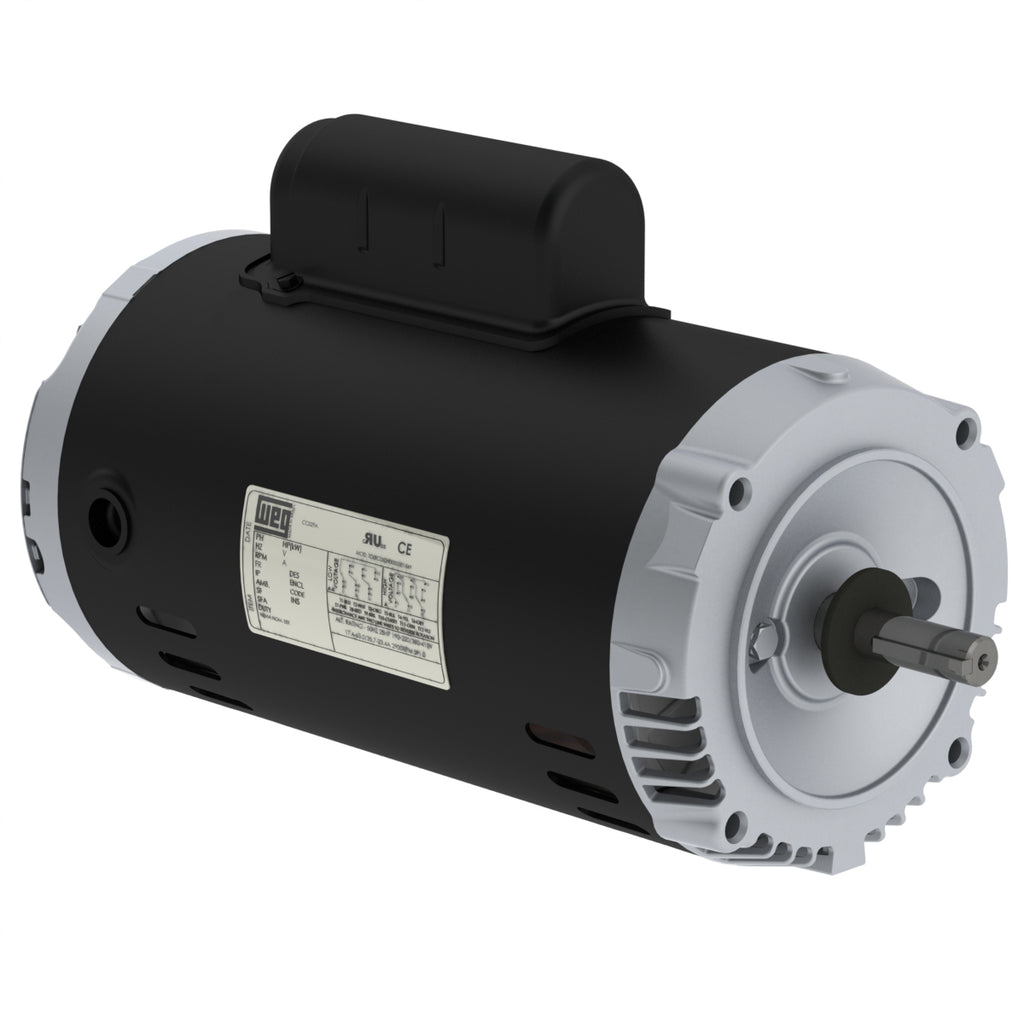

WEG 00136OS1BJPR56C-S Rolled Steel Jet Pump - C type 1 HP 2P 56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless


Price:
Sale price$244.09

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 1 HP
Mounting F-1
Flange C
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
Electric Motors
Frame 56C
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 12.8/7.08-6.40 A
L. R. Amperes 88.3/48.9-44.2 A
LRC 6.9x(Code M)
No load current 8.40/3.62-4.20 A
Rated torque 1.50 ft.lb
Locked rotor torque 260 %
Breakdown torque 280 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.0472 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.40 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 58.0 dB(A)
Approx. weight³ 25.9 lb
Efficiency
50% 60.0
75% 65.0
100% 68.0
Power factor
50% 0.55
75% 0.67
100% 0.75
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material AISI 304 Stainless Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Automatic
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material AISI 304 Stainless Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Automatic
