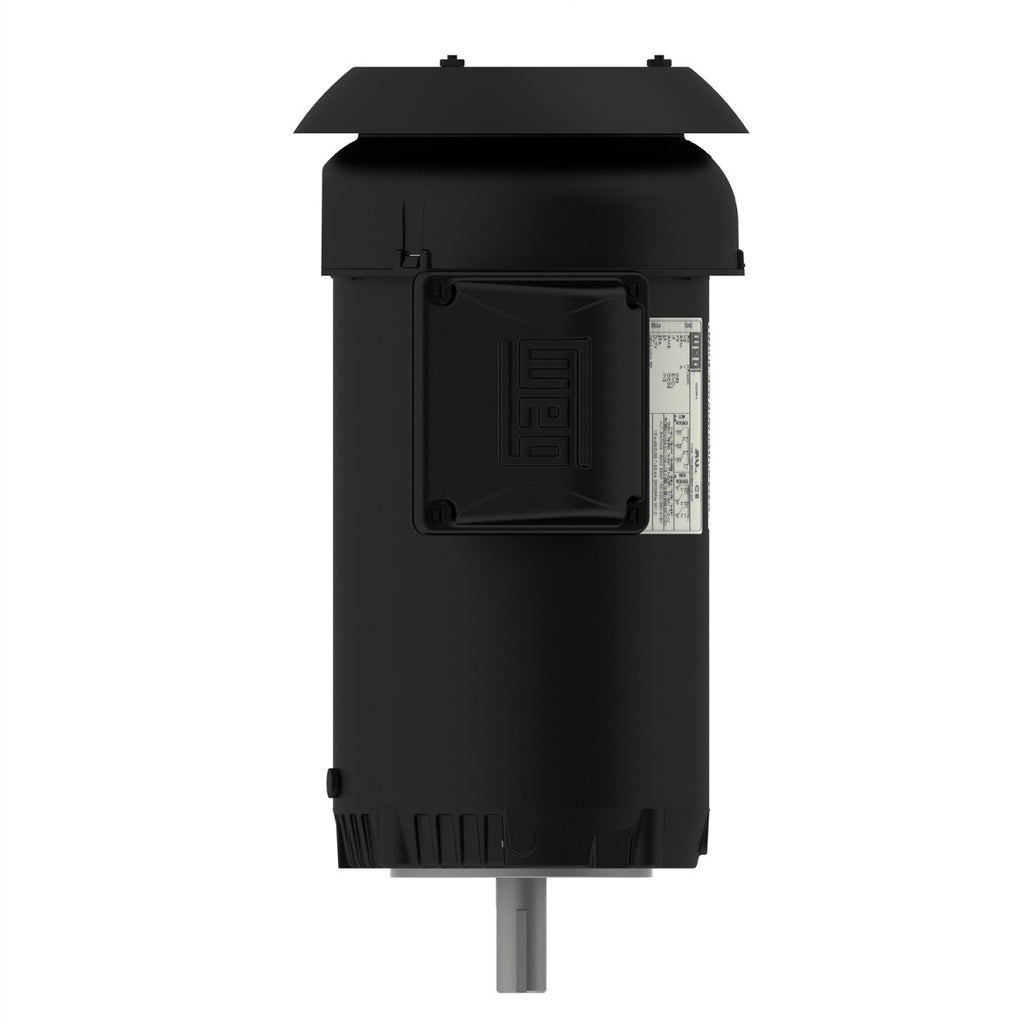

WEG 00112EP3ER145TC-S Rolled Steel High Efficiency 1 HP 6P 143/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Roll over image to zoom in Click on image to zoom
WEG 00112EP3ER145TC-S Rolled Steel High Efficiency 1 HP 6P 143/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless

WEG 00112EP3ER145TC-S Rolled Steel High Efficiency 1 HP 6P 143/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless

WEGSKU: 00112EP3ER145TC-S

Dropship

Get it by Mon, Jan 05 - Sat, Jan 10

Price:
$358.05

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 1 HP
Mounting W-6
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 143/5TC
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1145 rpm
Slip 4.58 %
Rated voltage 230/460 V
Rated current 3.32/1.66 A
L. R. Amperes 20.9/10.5 A
LRC 6.3x(Code K)
No load current 2.15/1.08 A
Rated torque 4.59 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 0.1037 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 37.1 lb
Efficiency
50% 77.0
75% 80.0
100% 80.0
Power factor
50% 0.49
75% 0.62
100% 0.71
Electric Motors
Frame 143/5TC
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 920 rpm
Slip 8.00 %
Rated voltage 190-220/380 V
Rated current 3.76-3.25/1.88 A
L. R. Amperes 18.0-15.6/9.02 A
LRC 4.8x(Code G)
No load current 2.12-1.83/1.06 A
Rated torque 5.71 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1037 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ 37.1 lb
Efficiency
50% 78.4
75% 79.5
100% 77.7
Power factor
50% 0.57
75% 0.70
100% 0.78
Electric Motors
Frame 143/5TC
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 940 rpm
Slip 6.00 %
Rated voltage 415 V
Rated current 1.84 A
L. R. Amperes 10.3 A
LRC 5.6x(Code J)
No load current 1.23 A
Rated torque 5.59 ft.lb
Locked rotor torque 270 %
Breakdown torque 280 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1037 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ 37.1 lb
Efficiency
50% 76.1
75% 79.0
100% 78.8
Power factor
50% 0.50
75% 0.63
100% 0.72
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Industrial polymer
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover With
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
