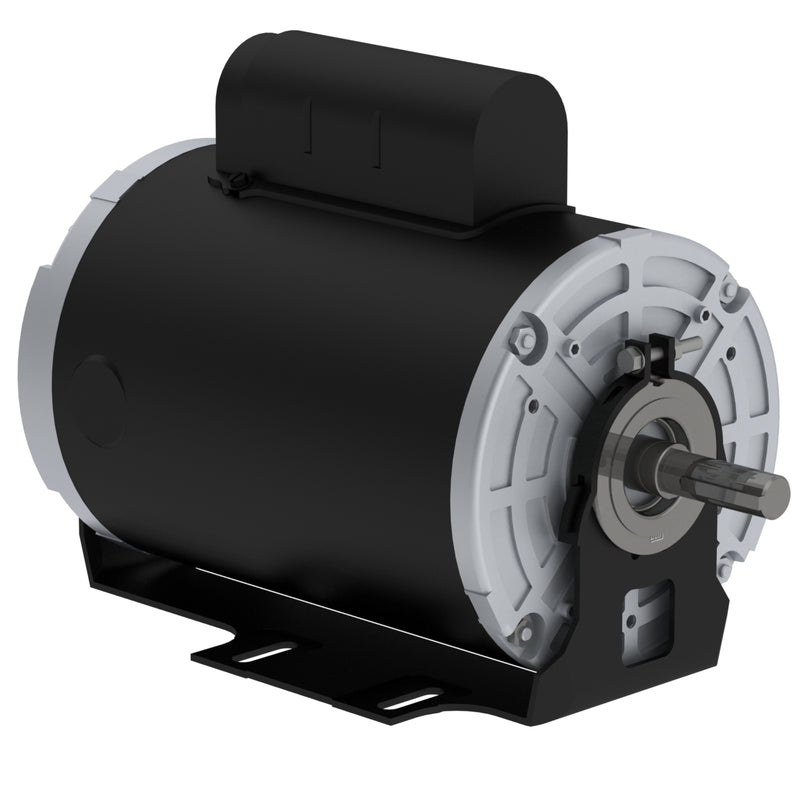

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115/208-230 V |
| Number of poles | 4 |
| Synchronous speed | 1800 rpm |
| Output rating | 0.75 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Without Terminal Box |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 56 |
|---|---|
| Output | 0.75 HP (0.550 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1745 rpm |
| Slip | 3.06 % |
| Rated voltage | 115/208-230 V |
| Rated current | 10.5/5.81-5.25 A |
| L. R. Amperes | 60.9/33.7-30.5 A |
| LRC | 5.8x(Code L) |
| No load current | 8.00/3.45-4.00 A |
| Rated torque | 2.26 ft.lb |
| Locked rotor torque | 280 % |
| Breakdown torque | 270 % |
| Locked rotor time | 18s (cold) 10s (hot) |
| Moment of inertia (J) | 0.0778 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.25 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +50°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 23.0 lb |
Efficiency
| 50% | 60.0 |
|---|---|
| 75% | 66.0 |
| 100% | 69.0 |
Power factor
| 50% | 0.46 |
|---|---|
| 75% | 0.57 |
| 100% | 0.66 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | With |
| Overload protector (phenolic) | Without overload protector |
