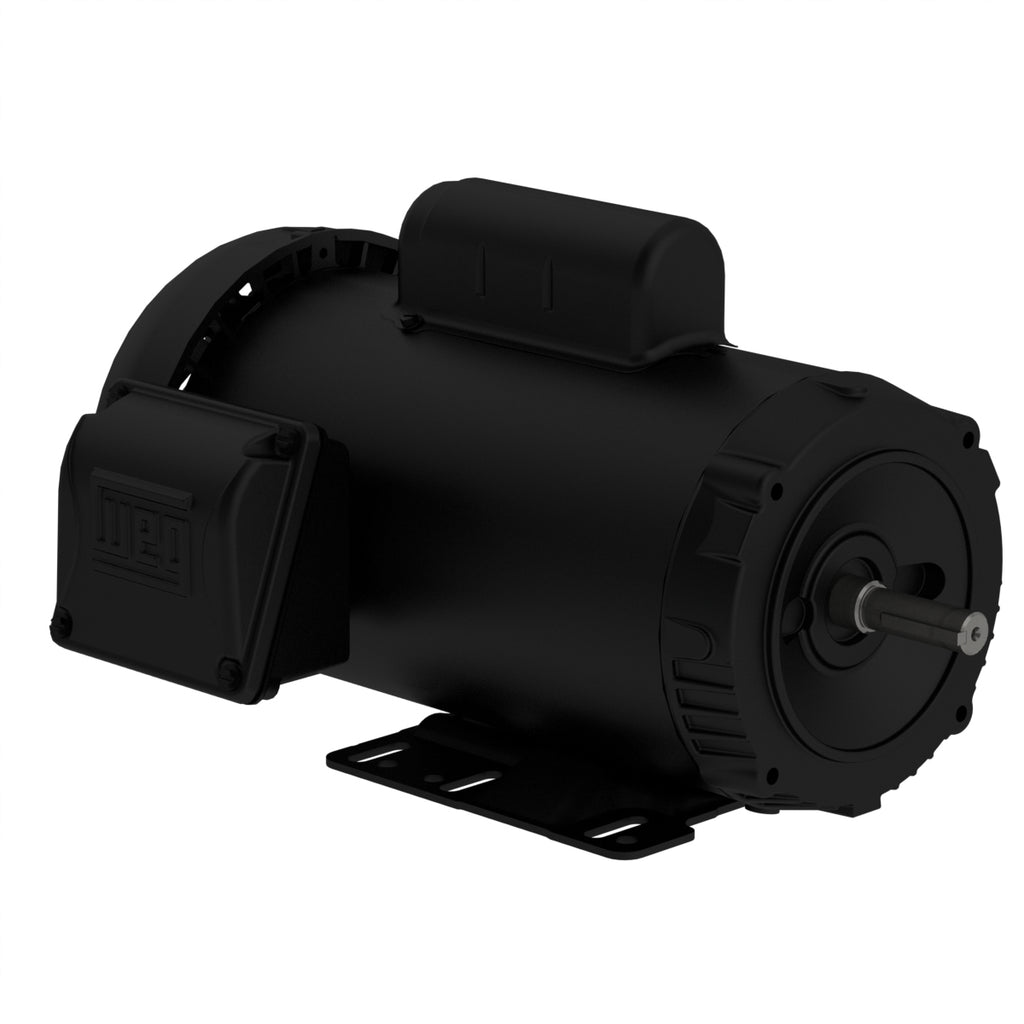

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.
| Standard |
NEMA MG-1 |
| Frequency |
60 Hz |
| Voltage |
115/208-230 V |
| Number of poles |
2 |
| Degree of Protection |
IP55 |
| Synchronous speed |
3600 rpm |
| Output rating |
0.5 HP |
| Mounting |
F-1 |
| Flange |
C |
| Terminal box¹ |
Left position |
| Enclosure |
IC411 - TEFC |
Electric Motors
| Frame |
W56C |
| Output |
0.5 HP (0.37 kW) |
| Number of Poles |
2 |
| Frequency |
60 Hz |
| Rated speed |
3500 rpm |
| Slip |
2.78 % |
| Rated voltage |
115/208-230 V |
| Rated current |
7.00/3.87-3.50 A |
| L. R. Amperes |
56.0/31.0-28.0 A |
| LRC |
8.0x(Code P) |
| No load current |
4.80/2.07-2.40 A |
| Rated torque |
0.750 ft.lb |
| Locked rotor torque |
290 % |
| Breakdown torque |
300 % |
| Locked rotor time |
12s (cold) 7s (hot) |
| Moment of inertia (J) |
0.0233 sq.ft.lb |
| Design |
N |
| Insulation Class |
F |
| Temperature rise |
80 K |
| Service factor |
1.15 (1.00 @ 208V) |
| Duty Cycle |
Cont.(S1) |
| Starting Method |
Direct On Line |
| Ambient temperature |
-20°C to +40°C |
| Altitude |
1000 m.a.s.l. |
| Degree of Protection |
IP55 |
| Enclosure |
IC411 - TEFC |
| Mounting |
F-1 |
| Rotation¹ |
Both (CW and CCW) |
| Noise level² |
66.0 dB(A) |
| Approx. weight³ |
21.4 lb |
Efficiency
| 50% |
50.0 |
| 75% |
58.0 |
| 100% |
60.0 |
Power factor
| 50% |
0.59 |
| 75% |
0.69 |
| 100% |
0.76 |
Features
| Frame Material |
Rolled Steel |
| Impregnation Method |
Dip and Bake Polyester |
| Main terminal box hole |
0.881" |
| Terminal Block |
Without |
| Drain |
Rubber, automatic |
| Shaft Material |
SAE 1040/45 Carbon Steel |
| Painting |
Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Fan Cover material |
Industrial polymer |
| Tropicalized Painting |
Without |
| Fan material |
Plastic |
| Bearing cap |
Yes- Bearing Cap |
| Bolt Material |
Carbon Steel |
| Balancing Method |
Not Balanced |
| Drip Cover |
Without |
| Resilient Base |
Without |
| Overload protector (phenolic) |
Without overload protector |
Features
| Frame Material |
Rolled Steel |
| Impregnation Method |
Dip and Bake Polyester |
| Main terminal box hole |
0.881" |
| Terminal Block |
Without |
| Drain |
Rubber, automatic |
| Shaft Material |
SAE 1040/45 Carbon Steel |
| Painting |
Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Fan Cover material |
Industrial polymer |
| Tropicalized Painting |
Without |
| Fan material |
Plastic |
| Bearing cap |
Yes- Bearing Cap |
| Bolt Material |
Carbon Steel |
| Balancing Method |
Not Balanced |
| Drip Cover |
Without |
| Resilient Base |
Without |
| Overload protector (phenolic) |
Without overload protector |
