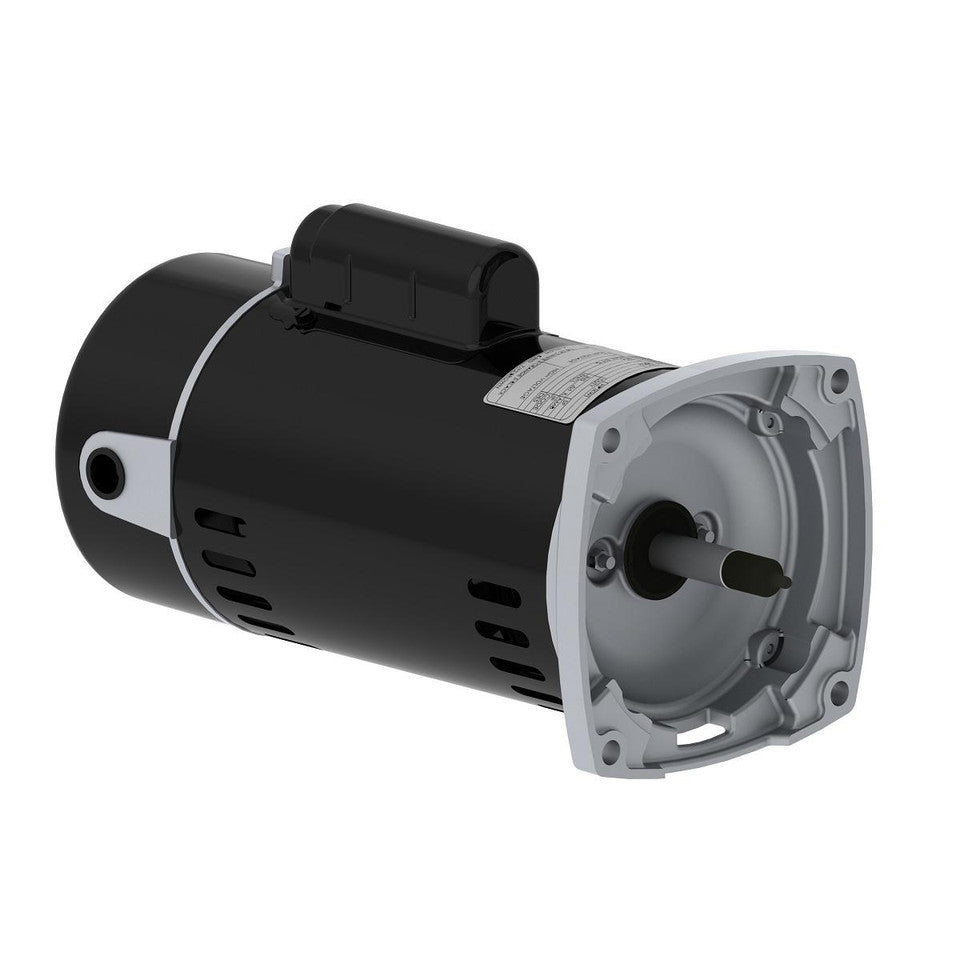

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115/230 V |
| Number of poles | 2 |
| Degree of Protection | IP21 |
| Synchronous speed | 3600 rpm |
| Output rating | 1 HP |
| Mounting | F-1 |
| Flange | Squared |
| Terminal box¹ | Without Terminal Box |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | L48Y |
|---|---|
| Output | 1 HP (0.75 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3510 rpm |
| Slip | 2.50 % |
| Rated voltage | 115/230 V |
| Rated current | 14.1/7.05 A |
| L. R. Amperes | 94.5/47.2 A |
| LRC | 6.7x(Code M) |
| No load current | 10.5/5.25 A |
| Rated torque | 1.50 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 320 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 0.0361 sq.ft.lb |
| Insulation Class | B |
| Service factor | 1.65 |
| Temperature rise | 70 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +50°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP21 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CCW |
| Noise level² | 58.0 dB(A) |
| Approx. weight³ | 28.0 lb |
Efficiency
| 50% | 57.0 |
|---|---|
| 75% | 65.0 |
| 100% | 69.7 |
Power factor
| 50% | 0.48 |
|---|---|
| 75% | 0.57 |
| 100% | 0.66 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | AISI 316 Stainless Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Tropicalized Painting | Without |
| Fan material | Nylon |
| Bearing cap | No-Without Bearing Cap |
| Balancing Method | Not Balanced |
| Drip Cover | Without |
| Shaft End | threaded |
| Resilient Base | Without |
| Overload protector (phenolic) | Automatic |
