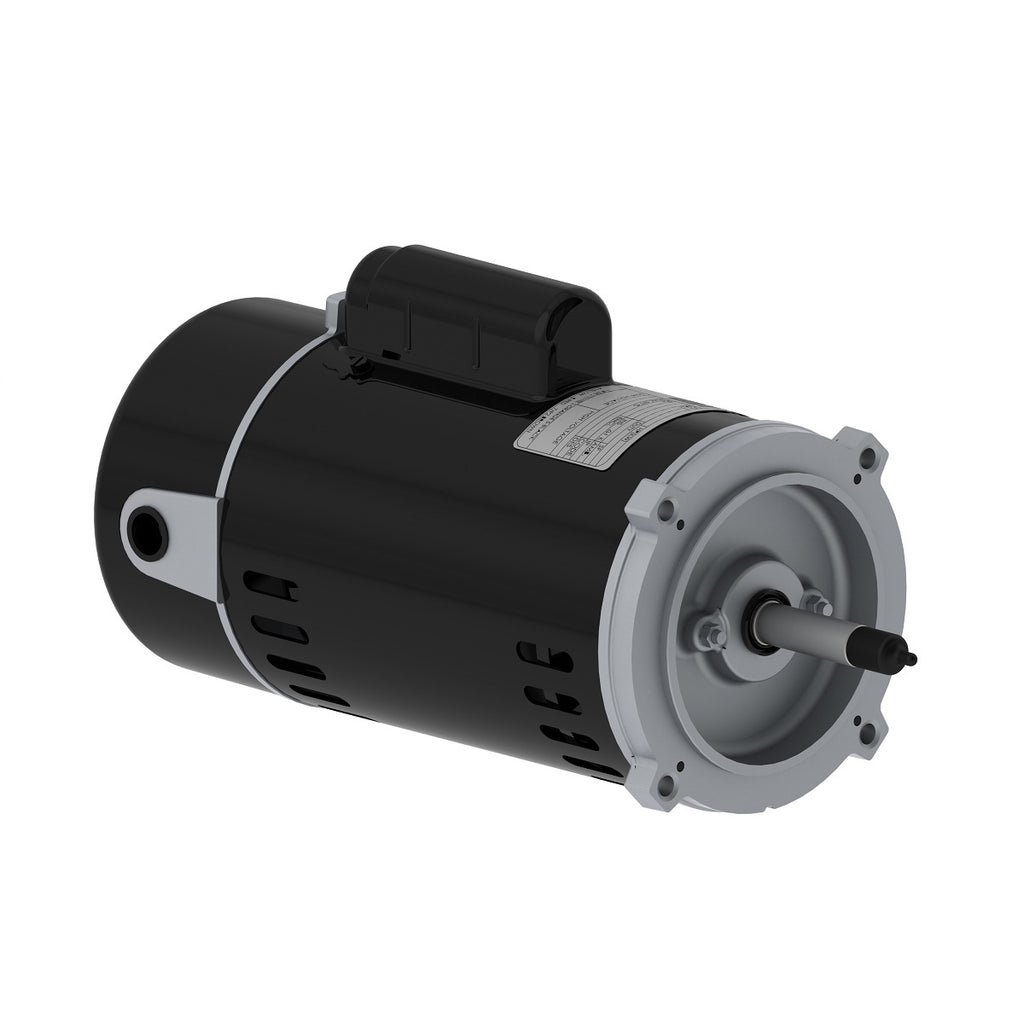

ODP motor manufactured with steel plate especially developed for applications on swimming pool, Japanese bathtub and whirlpool bathtub pumps.
| Standard |
NEMA MG-1 |
| Frequency |
60 Hz |
| Voltage |
115/230 V |
| Number of poles |
2 |
| Degree of Protection |
IP21 |
| Synchronous speed |
3600 rpm |
| Output rating |
0.75 HP |
| Mounting |
F-1 |
| Flange |
FC 149 |
| Terminal box¹ |
Without Terminal Box |
| Enclosure |
IC01 - ODP |
Electric Motors
| Frame |
K56J |
| Output |
0.75 HP (0.550 kW) |
| Number of Poles |
2 |
| Frequency |
60 Hz |
| Rated speed |
3465 rpm |
| Slip |
3.75 % |
| Rated voltage |
115/230 V |
| Rated current |
10.2/5.10 A |
| L. R. Amperes |
54.1/27.0 A |
| LRC |
5.3x(Code K) |
| No load current |
7.70/3.85 A |
| Rated torque |
1.14 ft.lb |
| Locked rotor torque |
140 % |
| Breakdown torque |
260 % |
| Locked rotor time |
10s (cold) 6s (hot) |
| Moment of inertia (J) |
0.0233 sq.ft.lb |
| Insulation Class |
B |
| Service factor |
1.30 |
| Temperature rise |
70 K |
| Duty Cycle |
Cont.(S1) |
| Starting Method |
Direct On Line |
| Ambient temperature |
-20°C to +50°C |
| Altitude |
1000 m.a.s.l. |
| Degree of Protection |
IP21 |
| Enclosure |
IC01 - ODP |
| Mounting |
F-1 |
| Rotation¹ |
CCW |
| Noise level² |
58.0 dB(A) |
| Approx. weight³ |
22.2 lb |
Efficiency
| 50% |
55.0 |
| 75% |
62.5 |
| 100% |
66.2 |
Power factor
| 50% |
0.53 |
| 75% |
0.63 |
| 100% |
0.72 |
Features
| Frame Material |
Rolled Steel |
| Impregnation Method |
Dip and Bake Polyester |
| Shaft Material |
AISI 316 Stainless Steel |
| Painting |
Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Tropicalized Painting |
Without |
| Fan material |
Nylon |
| Bearing cap |
Yes- Bearing Cap |
| Drip Cover |
Without |
| Shaft End |
threaded |
| Resilient Base |
Without |
| Overload protector (phenolic) |
Automatic |
Features
| Frame Material |
Rolled Steel |
| Impregnation Method |
Dip and Bake Polyester |
| Shaft Material |
AISI 316 Stainless Steel |
| Painting |
Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Tropicalized Painting |
Without |
| Fan material |
Nylon |
| Bearing cap |
Yes- Bearing Cap |
| Drip Cover |
Without |
| Shaft End |
threaded |
| Resilient Base |
Without |
| Overload protector (phenolic) |
Automatic |
