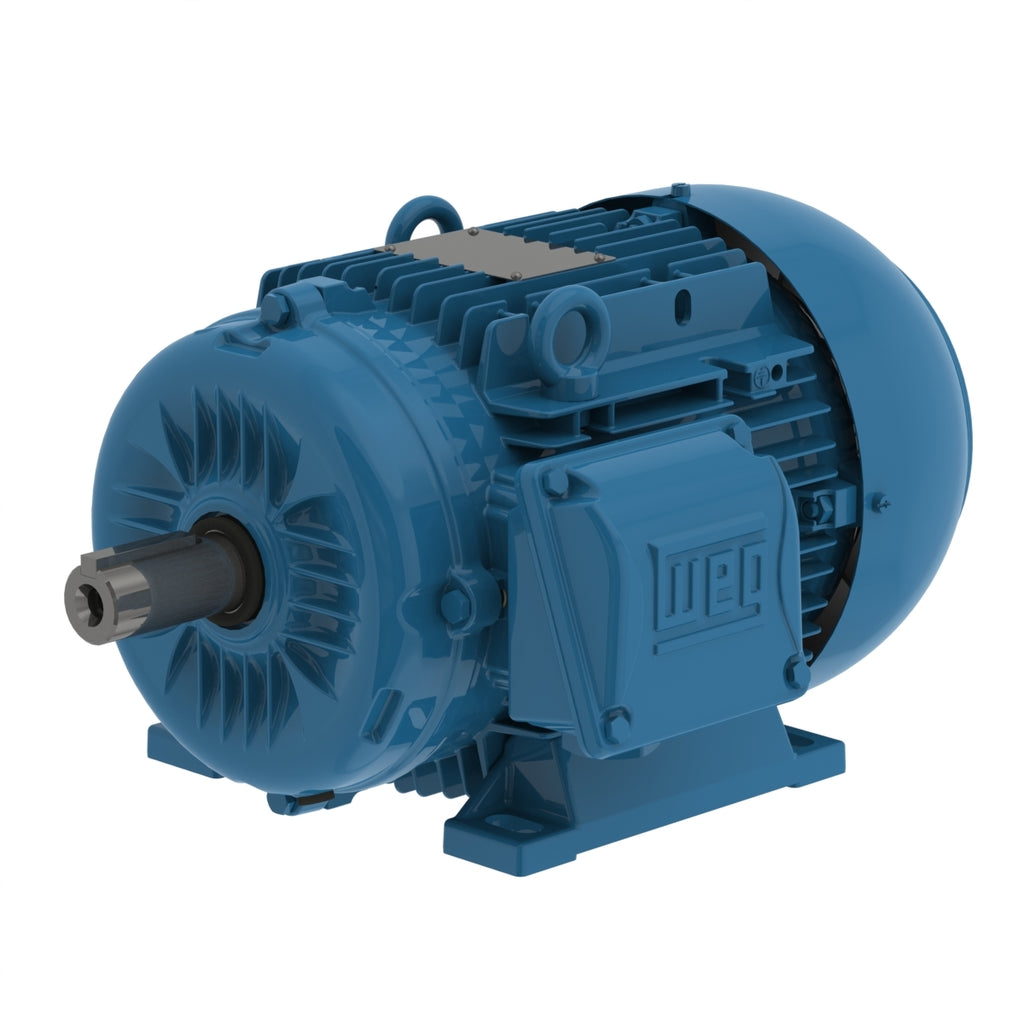

WEG 00212ET3EAL132S-W22 Multimounting IE3 3 HP 6P 132S 3Ph 230/460//190/380 V 60 Hz IC411 - TEFC - B3L(E)


Price:
Sale price$897.83

Description

Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//190/380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 3 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 132S
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 190/380 V
Rated current 10.4/5.19 A
L. R. Amperes 53.0/26.5 A
LRC 5.1
No load current 5.60/2.80 A
Rated torque 16.3 ft.lb
Locked rotor torque 150 %
Breakdown torque 240 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 1.17 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 126 lb
Efficiency
50% 86.5
75% 87.5
100% 87.1
Power factor
50% 0.55
75% 0.67
100% 0.74
Electric Motors
Frame 132S
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 8.81/4.41 A
L. R. Amperes 53.7/26.9 A
LRC 6.1
No load current 5.60/2.80 A
Rated torque 13.4 ft.lb
Locked rotor torque 180 %
Breakdown torque 310 %
Locked rotor time 90s (cold) 50s (hot)
Moment of inertia (J) 1.17 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 126 lb
Efficiency
50% 84.0
75% 87.5
100% 89.5
Power factor
50% 0.49
75% 0.62
100% 0.70
Features
Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Connection Cables Quantity 9
