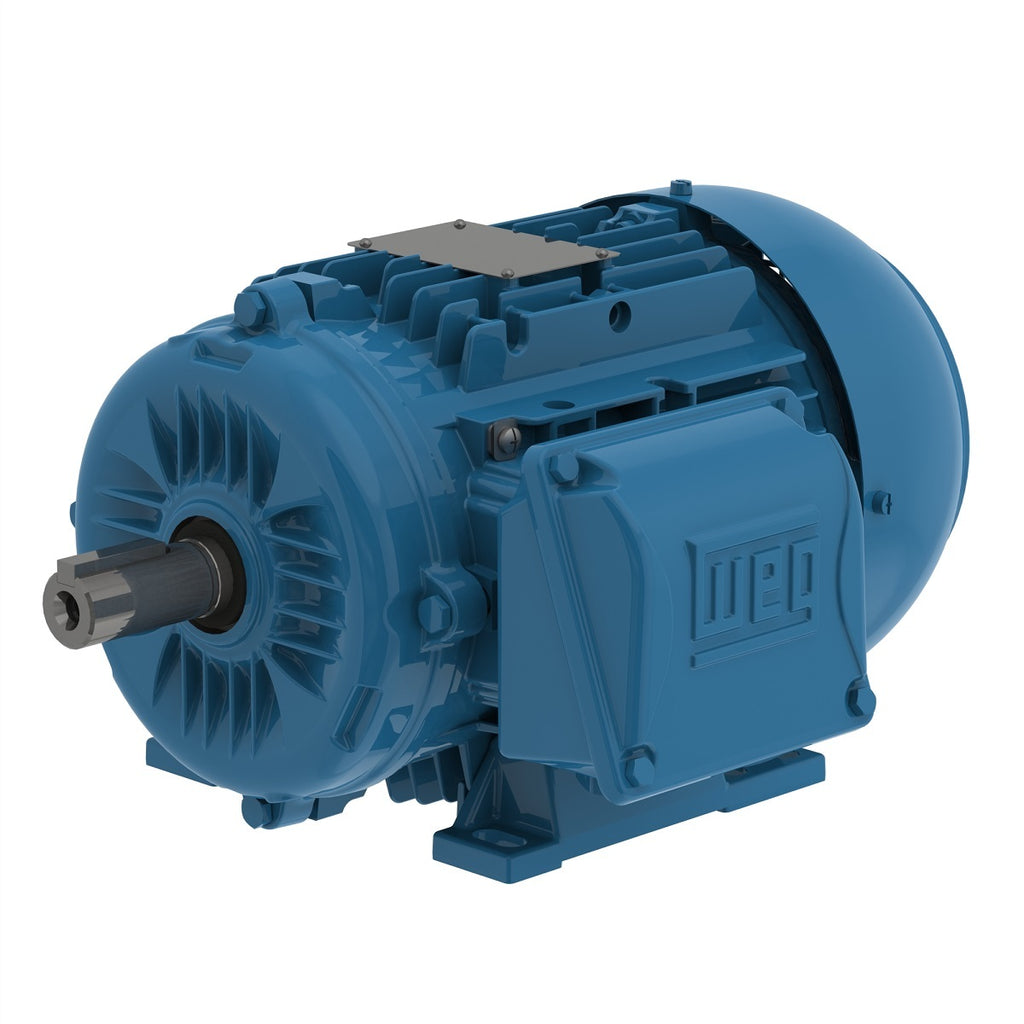

WEG 00218ET3EAL100L-W22 Multimounting IE3 3 HP 4P 100L 3Ph 230/460//380-415 V 60 Hz IC411 - TEFC - B3L(E)


Price:
Sale price$485.10

Description

Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 3 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 100L
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 230/460 V
Rated current 8.22/4.11 A
L. R. Amperes 75.6/37.8 A
LRC 9.2
No load current 4.40/2.20 A
Rated torque 9.03 ft.lb
Locked rotor torque 380 %
Breakdown torque 370 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 0.2136 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 62.3 lb
Efficiency
50% 86.6
75% 88.2
100% 89.5
Power factor
50% 0.54
75% 0.67
100% 0.75
Electric Motors
Frame 100L
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1425 rpm
Slip 5.00 %
Rated voltage 380 V
Rated current 4.88 A
L. R. Amperes 36.1 A
LRC 7.4
No load current 2.20 A
Rated torque 11.1 ft.lb
Locked rotor torque 280 %
Breakdown torque 270 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.2136 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 62.3 lb
Efficiency
50% 87.2
75% 87.1
100% 86.7
Power factor
50% 0.57
75% 0.70
100% 0.79
Electric Motors
Frame 100L
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1430 rpm
Slip 4.67 %
Rated voltage 400 V
Rated current 4.87 A
L. R. Amperes 39.4 A
LRC 8.1
No load current 2.40 A
Rated torque 11.0 ft.lb
Locked rotor torque 320 %
Breakdown torque 310 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.2136 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 62.3 lb
Efficiency
50% 86.5
75% 87.0
100% 87.0
Power factor
50% 0.53
75% 0.66
100% 0.75
Electric Motors
Frame 100L
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 415 V
Rated current 4.87 A
L. R. Amperes 40.9 A
LRC 8.4
No load current 2.50 A
Rated torque 10.9 ft.lb
Locked rotor torque 350 %
Breakdown torque 340 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.2136 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 62.3 lb
Efficiency
50% 85.7
75% 86.8
100% 87.2
Power factor
50% 0.49
75% 0.63
100% 0.72
Features
Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM25x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Connection Cables Quantity 9
