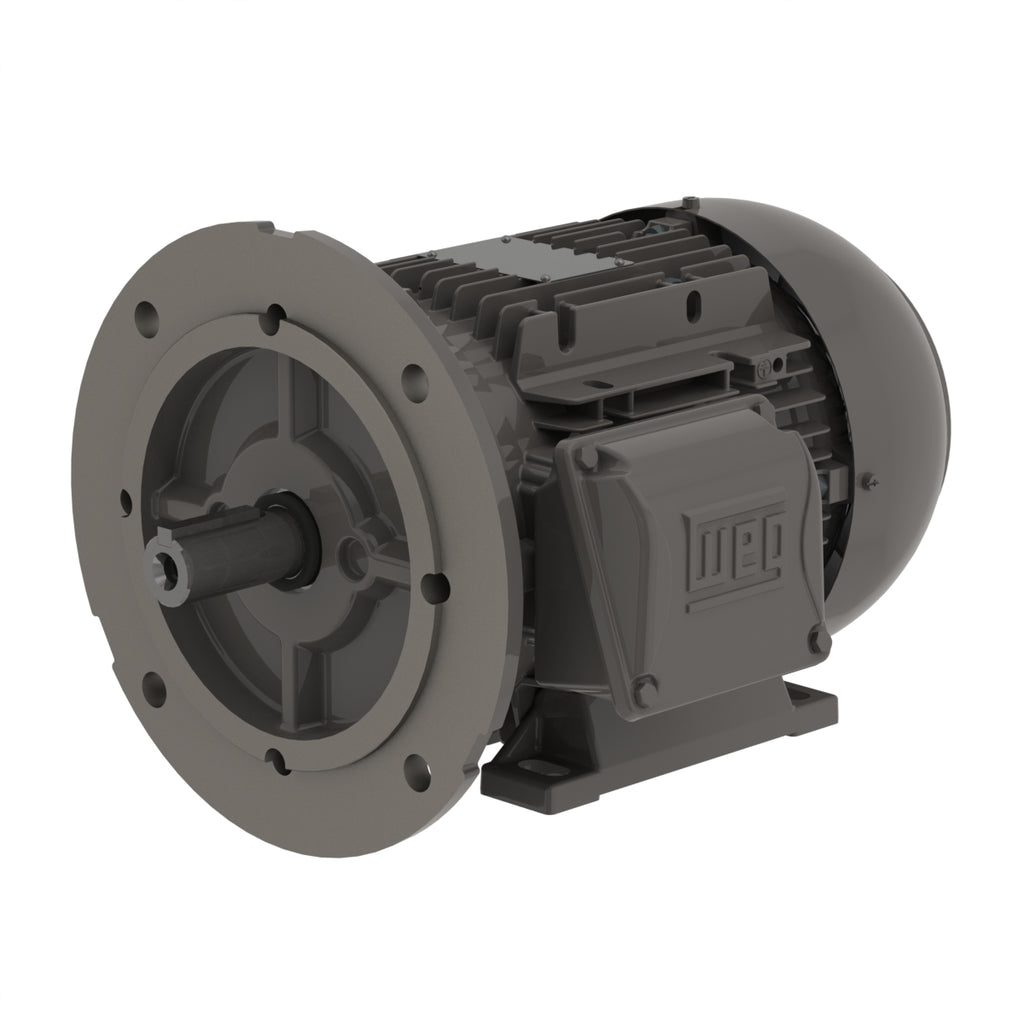

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460//380-415 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 0.75 HP |
| Mounting | B35L(E) |
| Flange | FF |
| Terminal box¹ | Right position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 71 |
|---|---|
| Output | 0.75 HP (0.550 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3420 rpm |
| Slip | 5.00 % |
| Rated voltage | 230/460 V |
| Rated current | 2.28/1.14 A |
| L. R. Amperes | 15.5/7.75 A |
| LRC | 6.8 |
| No load current | 1.20/0.600 A |
| Rated torque | 1.15 ft.lb |
| Locked rotor torque | 270 % |
| Breakdown torque | 270 % |
| Locked rotor time | 12s (cold) 7s (hot) |
| Moment of inertia (J) | 0.0107 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B35L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 22.3 lb |
Efficiency
| 50% | 72.0 |
|---|---|
| 75% | 75.0 |
| 100% | 76.0 |
Power factor
| 50% | 0.60 |
|---|---|
| 75% | 0.72 |
| 100% | 0.80 |
Electric Motors
| Frame | 71 |
|---|---|
| Output | 0.75 HP (0.550 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2750 rpm |
| Slip | 8.33 % |
| Rated voltage | 380 V |
| Rated current | 1.31 A |
| L. R. Amperes | 8.91 A |
| LRC | 6.8 |
| No load current | 0.600 A |
| Rated torque | 1.43 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 200 % |
| Locked rotor time | 12s (cold) 7s (hot) |
| Moment of inertia (J) | 0.0107 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B35L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 22.3 lb |
Efficiency
| 50% | 73.0 |
|---|---|
| 75% | 74.0 |
| 100% | 75.0 |
Power factor
| 50% | 0.67 |
|---|---|
| 75% | 0.79 |
| 100% | 0.85 |
Electric Motors
| Frame | 71 |
|---|---|
| Output | 0.75 HP (0.550 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2785 rpm |
| Slip | 7.17 % |
| Rated voltage | 400 V |
| Rated current | 1.27 A |
| L. R. Amperes | 8.64 A |
| LRC | 6.8 |
| No load current | 0.680 A |
| Rated torque | 1.41 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 220 % |
| Locked rotor time | 12s (cold) 7s (hot) |
| Moment of inertia (J) | 0.0107 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B35L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 22.3 lb |
Efficiency
| 50% | 72.5 |
|---|---|
| 75% | 74.0 |
| 100% | 75.5 |
Power factor
| 50% | 0.63 |
|---|---|
| 75% | 0.75 |
| 100% | 0.83 |
Electric Motors
| Frame | 71 |
|---|---|
| Output | 0.75 HP (0.550 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2820 rpm |
| Slip | 6.00 % |
| Rated voltage | 415 V |
| Rated current | 1.26 A |
| L. R. Amperes | 8.57 A |
| LRC | 6.8 |
| No load current | 0.750 A |
| Rated torque | 1.40 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 240 % |
| Locked rotor time | 28s (cold) 16s (hot) |
| Moment of inertia (J) | 0.0107 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B35L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 22.3 lb |
Efficiency
| 50% | 72.0 |
|---|---|
| 75% | 74.0 |
| 100% | 76.0 |
Power factor
| 50% | 0.58 |
|---|---|
| 75% | 0.71 |
| 100% | 0.80 |
Features
| Frame Material | Aluminum |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 3/4" |
| Terminal Block | BMC - 6 pins |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 7022 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | Not Balanced |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
