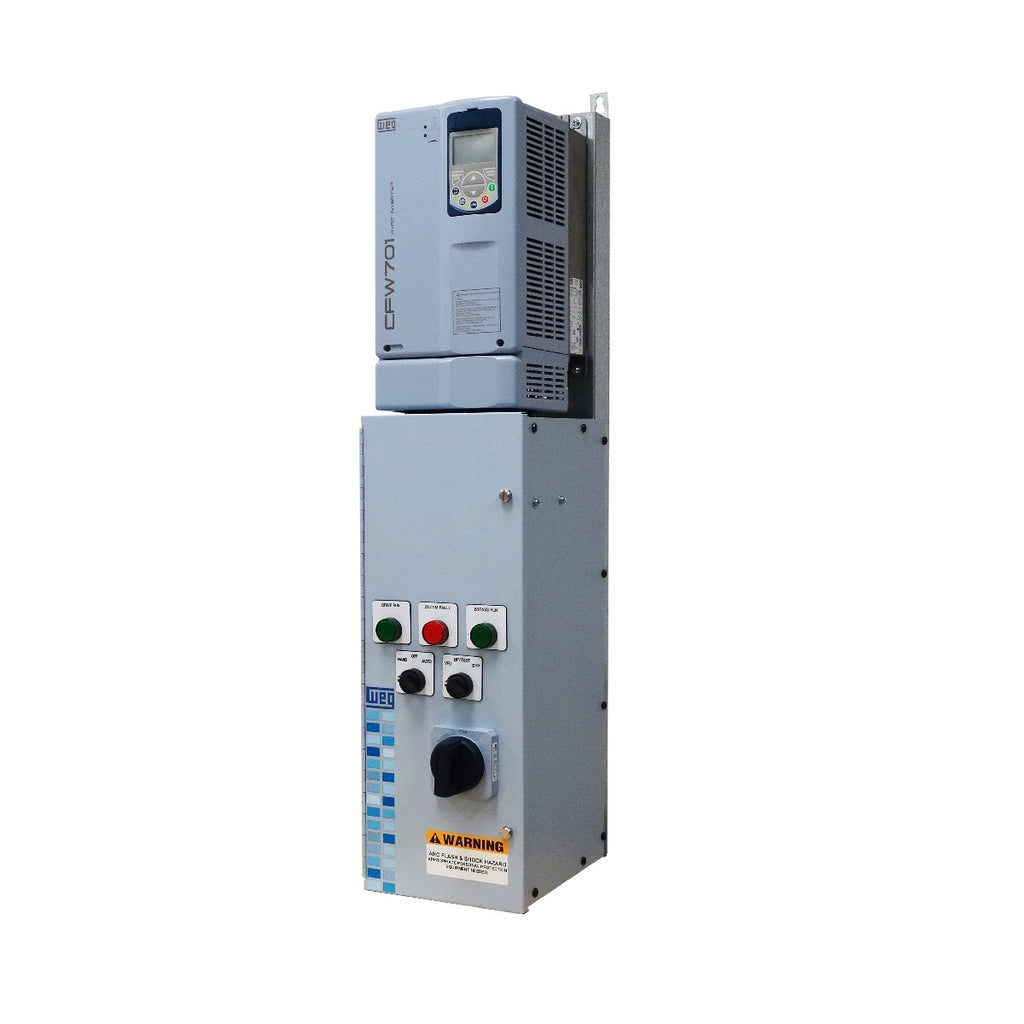

The WEG HVW701 VFD Panel is comprised of the CFW701 Variable Frequency Drive with & w/o integral manual By-Pass. It is designed for heating, ventilation, air conditioning and refrigeration systems where continued operation is critical and space is at a premium. The HVW701 is designed to provide reliable and energy-efficient control for applications in office buildings, hospitals, airports, hotels, shopping centers or other similar facilities. It is rated for Short circuit current rating (SCCR) of 65KA and offers Damper Control.
| Panel type |
VFD |
| Horsepower (HP) |
5 HP |
| Main voltage |
208/230 V |
| Bypass type |
AC3 |
| Control options |
Hand/OFF/Auto Selector Switch |
| Enclosure rating |
Type 1 |
Attributes
| Series |
HVW |
| Panel type |
VFD |
| Horsepower (HP) |
5 HP |
| Enclosure type |
Wall mount |
| Thermal Managment |
None |
| General enclosure options |
3 Contactor Bypass |
| Main voltage |
208/230 V |
| Control Voltage |
120 V |
| Frequency |
60 Hz |
| SCCR rating |
65 kAIC |
| Disconnect switch type |
Circuit Breaker rotary handle disconnect |
| Bypass type |
AC3 |
| Control power transformer |
100 VA - Open |
| Reactor/Filter |
None |
| Communication |
None |
| Control options |
Hand/OFF/Auto Selector Switch |
| Enclosure rating |
Type 1 |
| Nominal height |
922.02 mm / 36.3 in |
| Nominal width |
196.7 mm / 7.75 in |
| Nominal depth |
281.94 mm / 11.1 in |
| Certification |
UL |
