Description

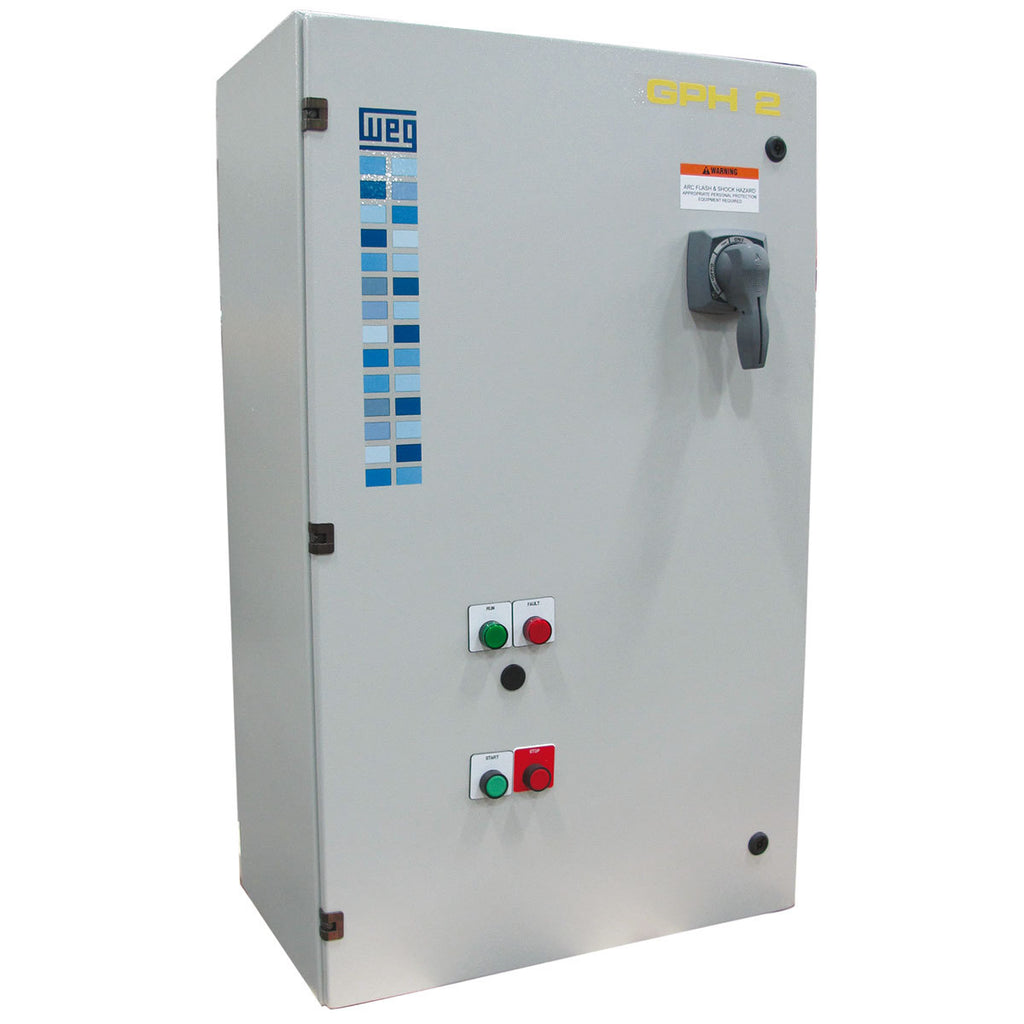

The Combination Soft Starter is a NEMA 4/12 Enclosed industrial general purpose AC motor soft starter package. It is designed for simple and quick installation and start-up, requiring only input power and output motor connections. The Combination Soft Starter is built to complement the ruggedness and reliability of WEG motors, providing a complete, simple, and cost effective AC motor starting and protection solution.
| Panel type | SOFT-STARTER |
|---|---|
| Horsepower (HP) | 250 HP |
| Main voltage | 460 V |
| Bypass type | AC3 |
| Control options | Start Pushbutton, Stop Pushbutton, Run Light, Fault Light and Keypad |
| Enclosure rating | Type 4 |
Attributes
| Series | GPH2 |
|---|---|
| Panel type | SOFT-STARTER |
| Horsepower (HP) | 250 HP |
| Enclosure type | Wall mount |
| Thermal Managment | None |
| General enclosure options | None |
| Main voltage | 460 V |
| Control Voltage | 120 V |
| Frequency | 60 Hz |
| SCCR rating | 5 kAIC |
| Disconnect switch type | Circuit Breaker rotary handle disconnect |
| Bypass type | AC3 |
| Control power transformer | 200 VA - Open |
| Reactor/Filter | None |
| Communication | None |
| Control options | Start Pushbutton, Stop Pushbutton, Run Light, Fault Light and Keypad |
| Enclosure rating | Type 4 |
| Nominal height | 1200.0 mm / 47.2 in |
| Nominal width | 800.0 mm / 31.5 in |
| Nominal depth | 400.0 mm / 15.7 in |
| Certification | UL/cUL |
