Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 240 V |
| Number of poles | 6/4 |
| Degree of Protection | IP21 |
| Synchronous speed | 1200/1800 rpm |
| Output rating | 1/3/1.0 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Without Terminal Box |
| Enclosure | IC01 - ODP |

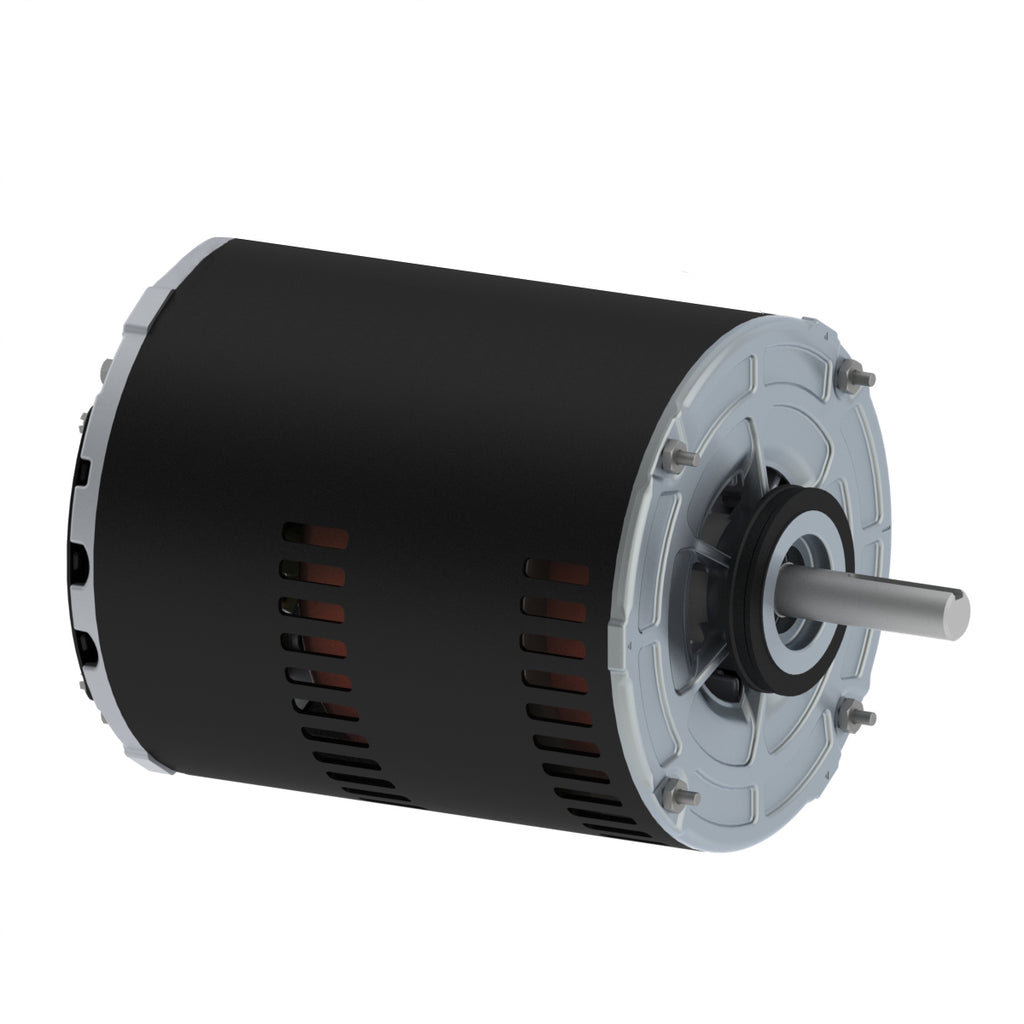

Electric Motors
| Frame | E56X180 |
|---|---|
| Output | 0.75 kW (1 HP) |
| Number of Poles | 6/4 |
| Frequency | 60 Hz |
| Rated speed | 1725 rpm |
| Slip | 4.17 % |
| Rated voltage | 240 V |
| Rated current | 6.45 A |
| L. R. Amperes | 31.0 A |
| LRC | 4.8x(Code J) |
| No load current | 4.89 A |
| Rated torque | 3.06 ft.lb |
| Locked rotor torque | 125 % |
| Breakdown torque | 240 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 0.1092 sq.ft.lb |
| Insulation Class | B |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP21 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CW |
| Noise level² | 46.0 dB(A) |
| Approx. weight³ | 30.9 lb |
Efficiency
| 50% | 60.1 |
|---|---|
| 75% | 65.7 |
| 100% | 66.7 |
Power factor
| 50% | 0.50 |
|---|---|
| 75% | 0.63 |
| 100% | 0.72 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Winding thermal protection | Thermostat - 2 wires 1 per phase 130°C |
| Balancing Method | Not Balanced |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
