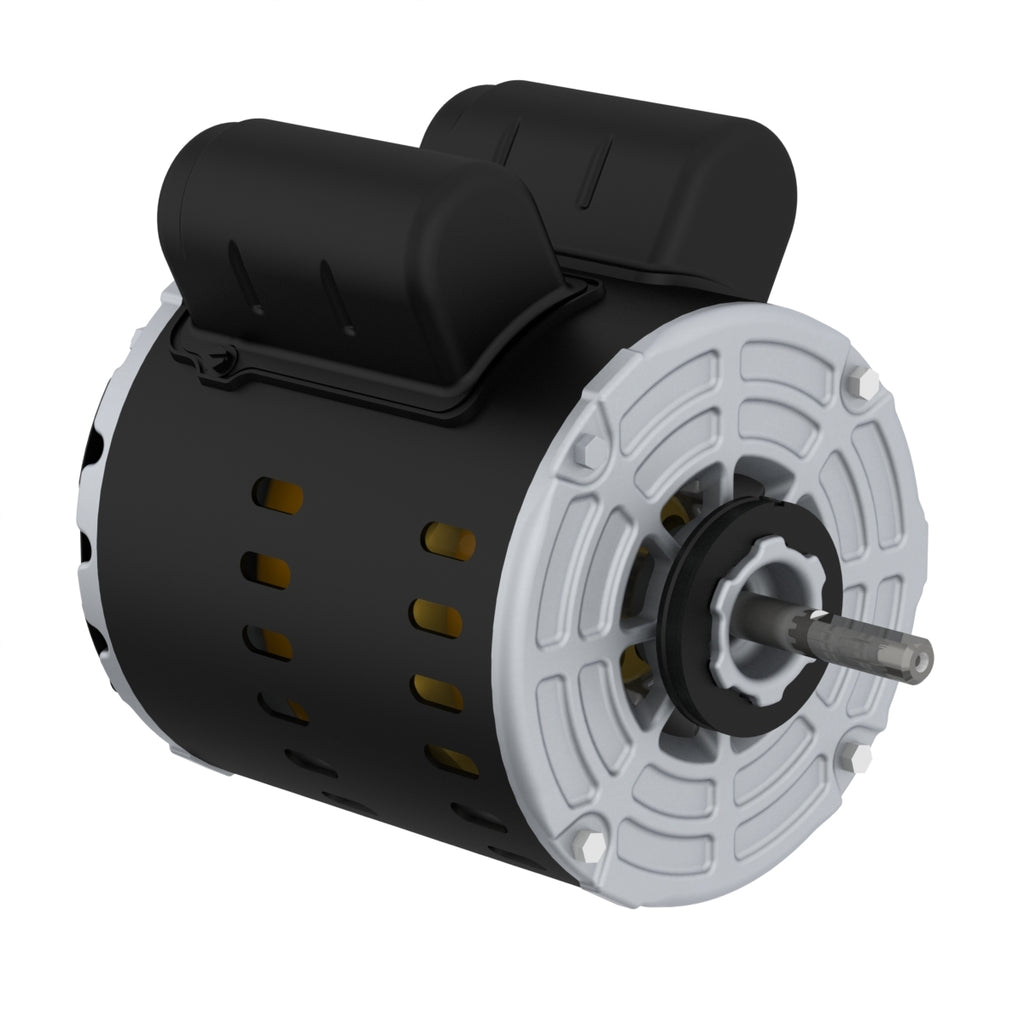

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115 V |
| Number of poles | 6/4 |
| Degree of Protection | IP21 |
| Synchronous speed | 1200/1800 rpm |
| Output rating | 1.00/0.33 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Without Terminal Box |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | E56 |
|---|---|
| Output | 0.75 kW (1 HP) |
| Number of Poles | 6/4 |
| Frequency | 60 Hz |
| Rated speed | 1725 rpm |
| Slip | 4.17 % |
| Rated voltage | 115 V |
| Rated current | 12.1 A |
| L. R. Amperes | 52.0 A |
| LRC | 4.3x(Code G) |
| No load current | 10.6 A |
| Rated torque | 3.06 ft.lb |
| Locked rotor torque | 120 % |
| Breakdown torque | 240 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 0.1068 sq.ft.lb |
| Insulation Class | B |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP21 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CW |
| Noise level² | 46.0 dB(A) |
| Approx. weight³ | 27.8 lb |
Efficiency
| 50% | 58.7 |
|---|---|
| 75% | 67.0 |
| 100% | 70.0 |
Power factor
| 50% | 0.59 |
|---|---|
| 75% | 0.70 |
| 100% | 0.78 |
Electric Motors
| Frame | E56 |
|---|---|
| Output | 0.25 kW (0.33 HP) |
| Number of Poles | 6/4 |
| Frequency | 60 Hz |
| Rated speed | 1140 rpm |
| Slip | 5.00 % |
| Rated voltage | 115 V |
| Rated current | 7.10 A |
| L. R. Amperes | 0.000 A |
| LRC | 0.0x(Code A) |
| No load current | 6.60 A |
| Rated torque | 1.55 ft.lb |
| Locked rotor torque | 0 % |
| Breakdown torque | 250 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 0.1068 sq.ft.lb |
| Insulation Class | B |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP21 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CW |
| Noise level² | 47.0 dB(A) |
| Approx. weight³ | 27.8 lb |
Efficiency
| 50% | 38.1 |
|---|---|
| 75% | 46.9 |
| 100% | 51.5 |
Power factor
| 50% | 0.43 |
|---|---|
| 75% | 0.51 |
| 100% | 0.59 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Winding thermal protection | Thermostat - 2 wires 1 per phase 130°C |
| Balancing Method | Not Balanced |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
