Description

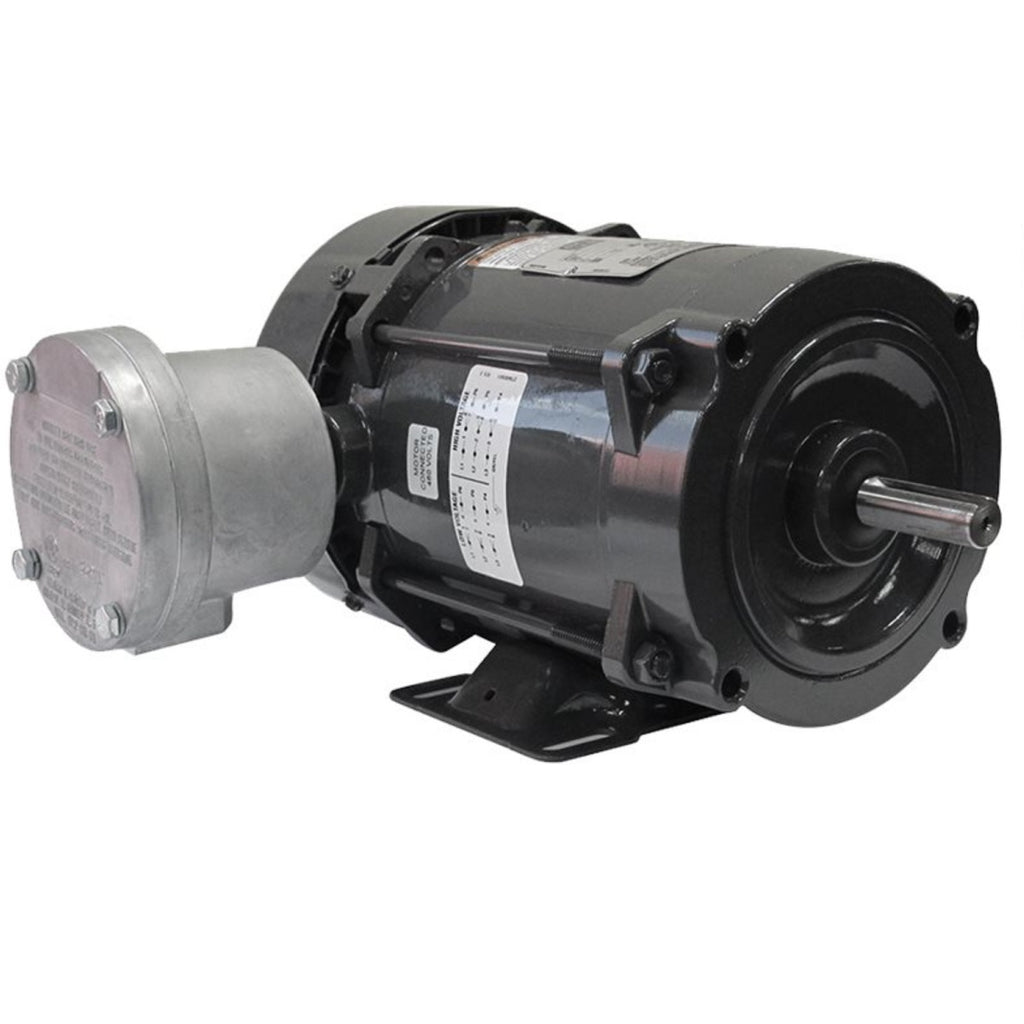

Foot mount motors with and without C-flange, unassembled aluminum conduit box included and Aluminum endshields, thermally protected.
| Standard | NEMA MG-1 |
|---|---|
| Frame | 56 |
| Frequency | 60 Hz |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Flange | Without |
| Mounting | F-1/B3R(D) |
| Terminal box¹ | Left position |
| Enclosure | TEFC |
Attributes
| Frame Material | Rolled Steel |
|---|---|
| Number of Poles | 04 |
| Insulation Class | F |
| Duty Cycle | S1 |
| Rotation¹ | Both (CW and CCW) |
| Regreasing System | Without |
| Terminal Block | Without |
| Shaft Material | CRS C1117/1040 |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Automatic |
