Description

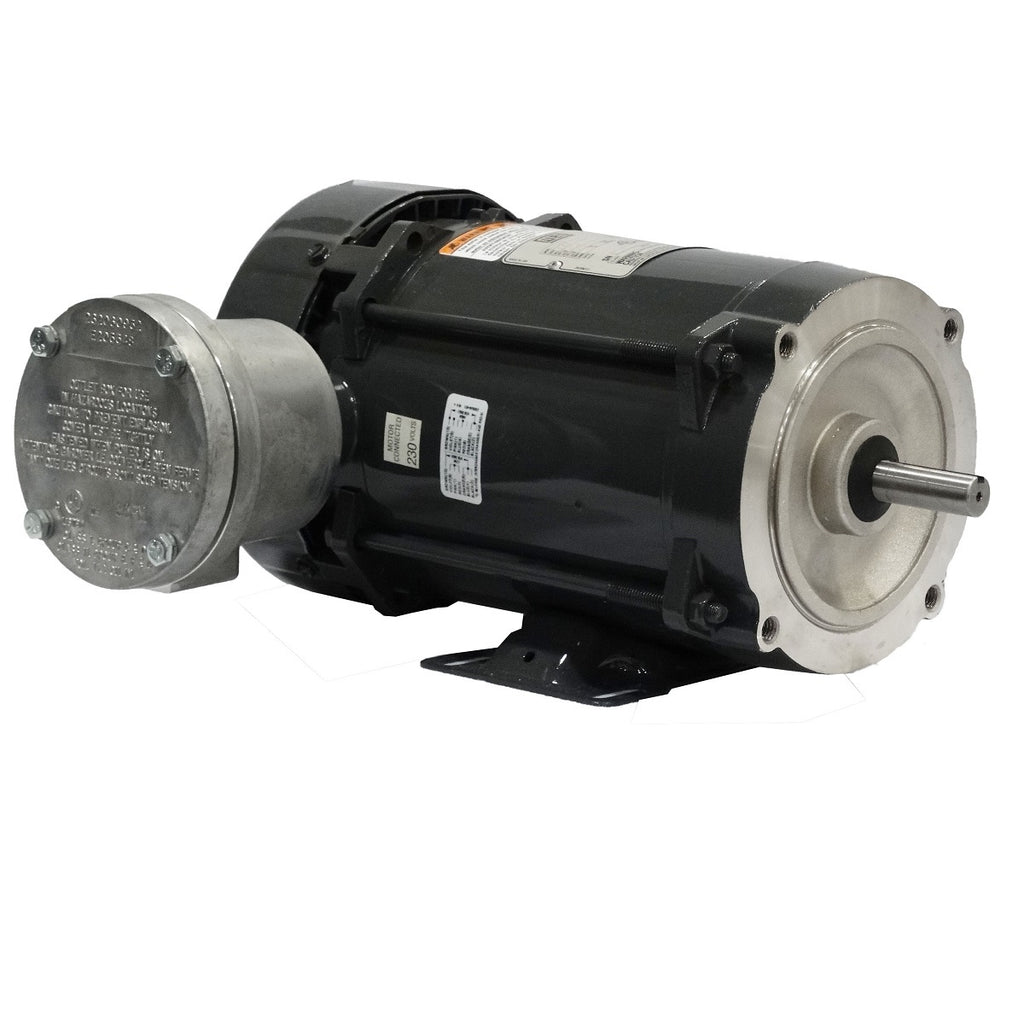

Foot mount motors with and without C-flange, unassembled aluminum conduit box included and Aluminum endshields, thermally protected.
| Standard | NEMA MG-1 |
|---|---|
| Frame | 56HC |
| Frequency | 60/50 Hz |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600/3000 rpm |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | TEFC |
Attributes
| Standard | NEMA MG-1 |
|---|---|
| Degree of Protection | IP55 |
| Mounting | Foot-mounted |
| Output rating | 2 HP |
| Enclosure | TEFC |
| Frequency | 60/50 Hz |
| Flange | C |
| Frame Material | Rolled Steel |
| Efficiency | Premium Efficiency |
| Motor Application | Flameproof Motor |
| Terminal box¹ | Left position |
| Frame | 56HC |
| Voltage | 230/460 V |
| Synchronous speed | 3600/3000 rpm |
| Number of Poles | 02 |
