Description

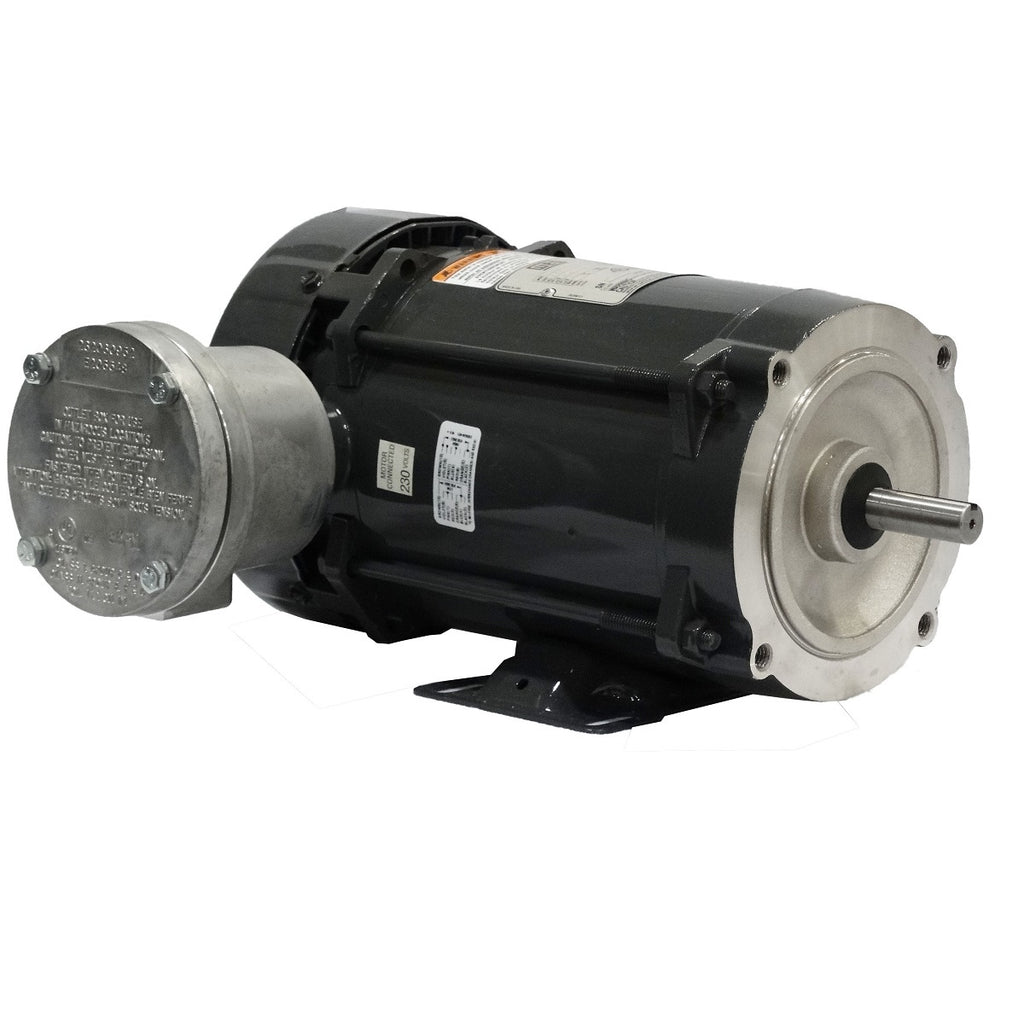

Foot mount motors with and without C-flange, unassembled aluminum conduit box included and Aluminum endshields, thermally protected.
| Standard | NEMA MG-1 |
|---|---|
| Frame | 56C |
| Frequency | 60 Hz |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Mounting | F-1/B34R(D) |
| Terminal box¹ | Left position |
| Enclosure | TEFC |
Attributes
| Standard | NEMA MG-1 |
|---|---|
| Degree of Protection | IP55 |
| Mounting | F-1/B34R(D) |
| Output rating | 1 HP |
| Enclosure | TEFC |
| Frequency | 60 Hz |
| Frame Material | Rolled Steel |
| Efficiency | NEMA Premium Efficiency |
| Motor Application | Flameproof Motor |
| Terminal box¹ | Left position |
| Frame | 56C |
| Voltage | 208-230/460V |
| Synchronous speed | 1800 rpm |
| Number of Poles | 04 |
| Insulation Class | F |
| Duty Cycle | S1 |
| Rotation¹ | Both (CW and CCW) |
