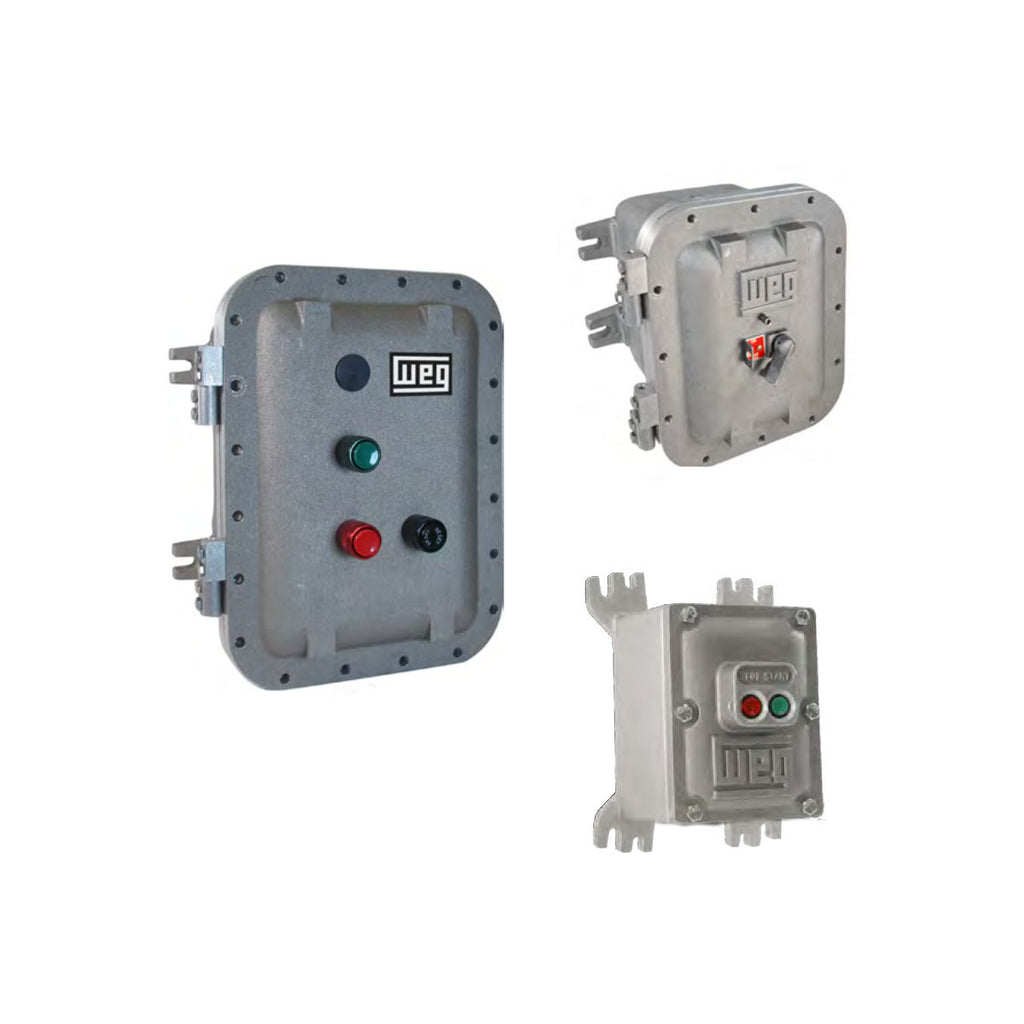

Description
| Panel type | Across the line |
|---|---|
| Horsepower (HP) | 40 HP |
| Main voltage | 575 V |
| Bypass type | None |
| Control options | Start Pushbutton, Stop Pushbutton and Reset Pushbutton |
| Enclosure rating | Type 7/9 |
Attributes
| Series | ESWX |
|---|---|
| Panel type | Across the line |
| Horsepower (HP) | 40 HP |
| Enclosure type | Wall mount |
| Thermal Managment | None |
| General enclosure options | None |
| Main voltage | 575 V |
| Control Voltage | 208-240 V |
| Frequency | 60 Hz |
| SCCR rating | 5 kAIC |
| Disconnect switch type | None |
| Bypass type | None |
| Control power transformer | No transformer required |
| Reactor/Filter | None |
| Communication | None |
| Control options | Start Pushbutton, Stop Pushbutton and Reset Pushbutton |
| Enclosure rating | Type 7/9 |
| Nominal height | 389.64 mm / 15.34 in |
| Nominal width | 288.8 mm / 11.37 in |
| Nominal depth | 209.55 mm / 8.25 in |
| Certification | UL/cUL |
