Description

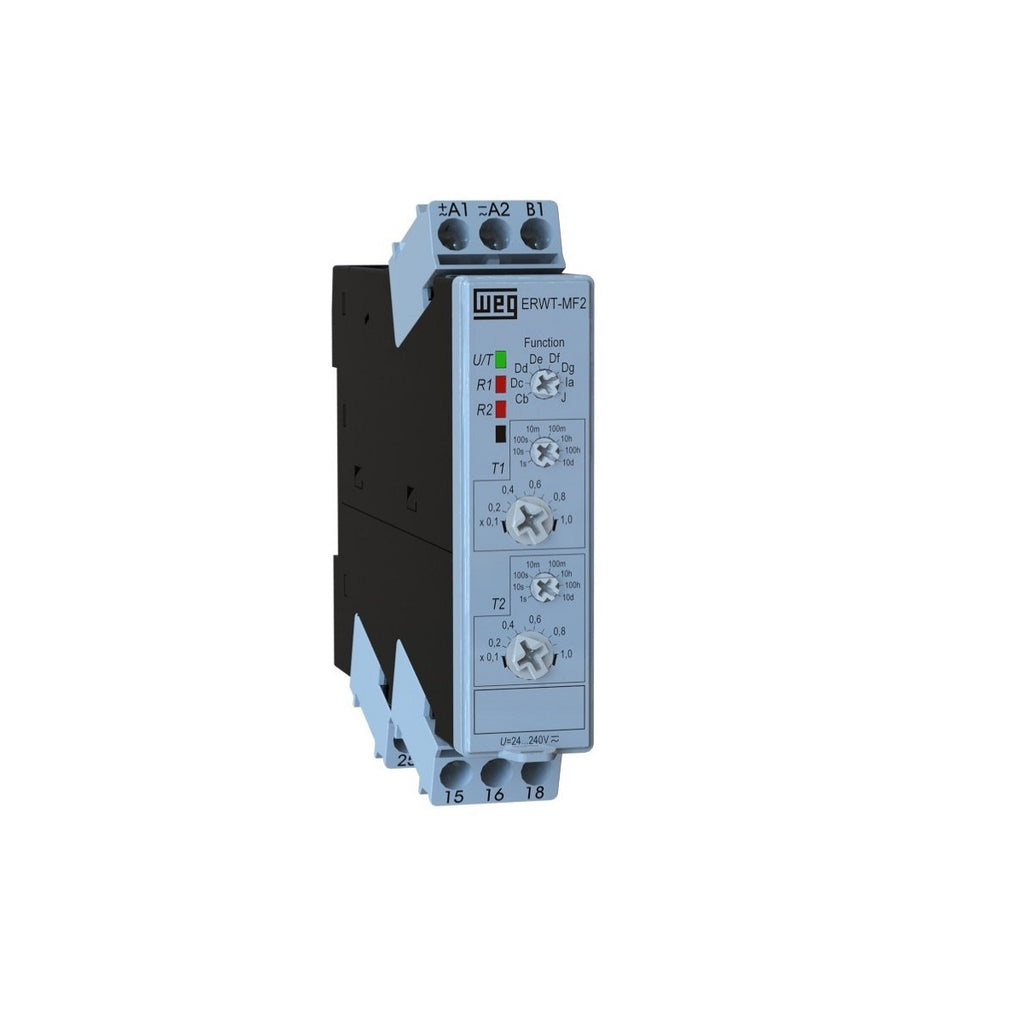

The ERWT relay can be mounted directly on DIN rail 35 mm or fixed with screws using the optional PLMP.
| Function | Multifunction |
|---|---|
| Output contacts | 2 NO/NC |
| Timing | 0.1s-10d |
| Function complement | 2 |
| Control voltage | 24-240V 50/60Hz/DC |
| A1-A2 terminals voltage | 24-240 V 50/60Hz/DC |
| A2-A3 terminals voltage | Not applicable |
Attributes
| A2-B1 terminals voltage | 24-240 V 50/60Hz/DC |
|---|---|
| L1-L2-L3 terminals voltage | Not applicable |
| Output contact AC voltage | 250 V |
| Output contact DC voltage | 30 V |
| Output contact DC current | 5 A |
| Certification | EAC |
