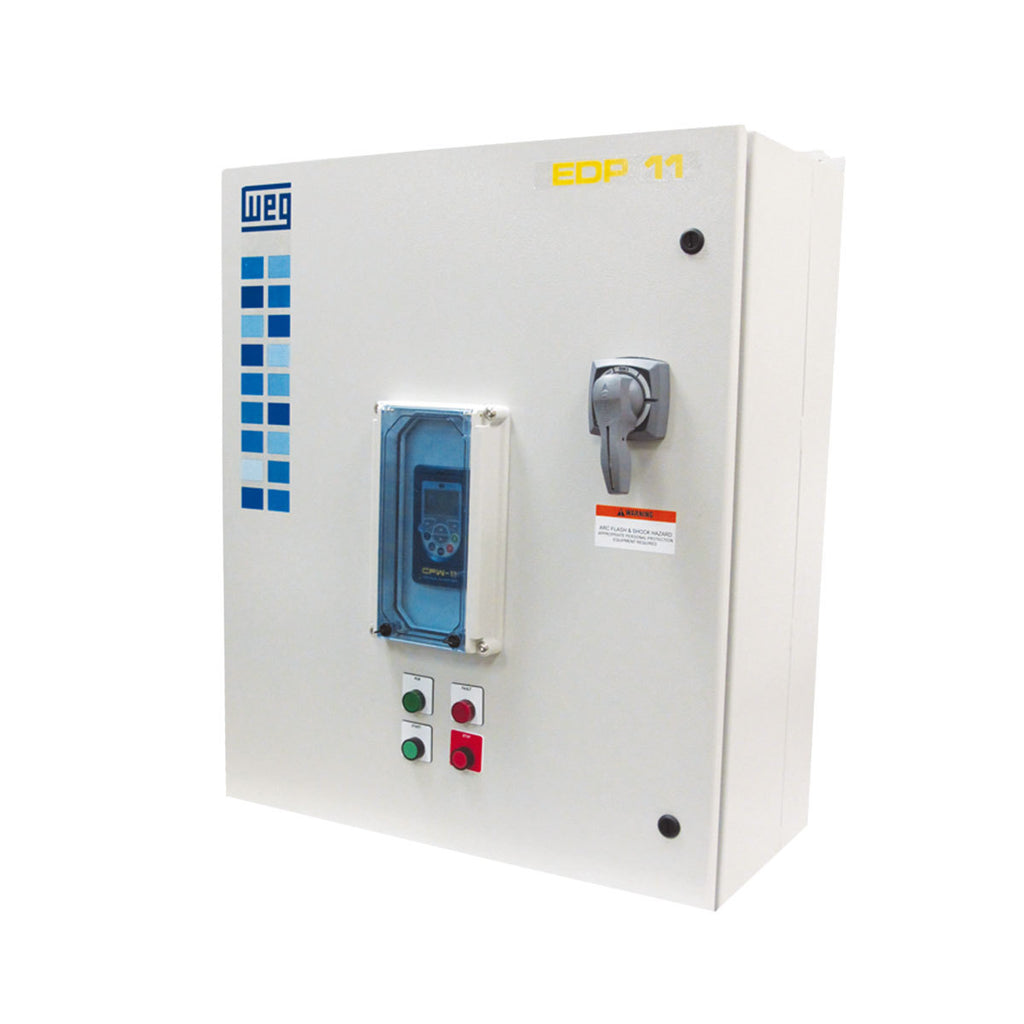

WEG EDP11S477GN3R11000 STANDARD PANEL EDP11S477GN3R11000
Roll over image to zoom in Click on image to zoom
WEG EDP11S477GN3R11000 STANDARD PANEL EDP11S477GN3R11000

WEG EDP11S477GN3R11000 STANDARD PANEL EDP11S477GN3R11000

WEGSKU: EDP11S477GN3R11000

Dropship

Get it by Sun, Dec 14 - Fri, Dec 19

Price:
$66,961.38

Description

The Engineered Drive Panel is an industrial general purpose AC motor control and protection package. It is designed for simple and quick installation and start-up, requiring only input power and output motor connections. There are two enclosure variants available such as NEMA 12 ventilated and NEMA 3R for Outdoor Installations. The Engineered Drive Panel is built to complement the ruggedness and reliability of WEG motors, providing a complete, simple, and cost effective AC motor control, monitor and protection solution.

Panel type VFD
Horsepower (HP) 400 HP
Main voltage 460 V
Bypass type AC3
Control options Start Pushbutton, Stop Pushbutton, Speed Potentiometer, Hand/OFF/Auto Selector Switch, E-STOP Pushbutton, Run Light, Fault Light and Keypad
Enclosure rating Type 3R
Attributes
Series EDP11
Panel type VFD
Horsepower (HP) 400 HP
Enclosure type Free Standing
Thermal Managment Enclosure heater
General enclosure options Lightning Arrestor
Main voltage 460 V
Control Voltage 120 V
Frequency 60 Hz
SCCR rating 5 kAIC
Disconnect switch type Circuit Breaker flange handle disconnect
Bypass type AC3
Control power transformer 500 VA - Open
Reactor/Filter None
Communication None
Control options Start Pushbutton, Stop Pushbutton, Speed Potentiometer, Hand/OFF/Auto Selector Switch, E-STOP Pushbutton, Run Light, Fault Light and Keypad
Enclosure rating Type 3R
Nominal height 2000.0 mm / 78.7 in
Nominal width 1600.0 mm / 63.0 in
Nominal depth 600.0 mm / 23.6 in
Certification UL/cUL
