Description

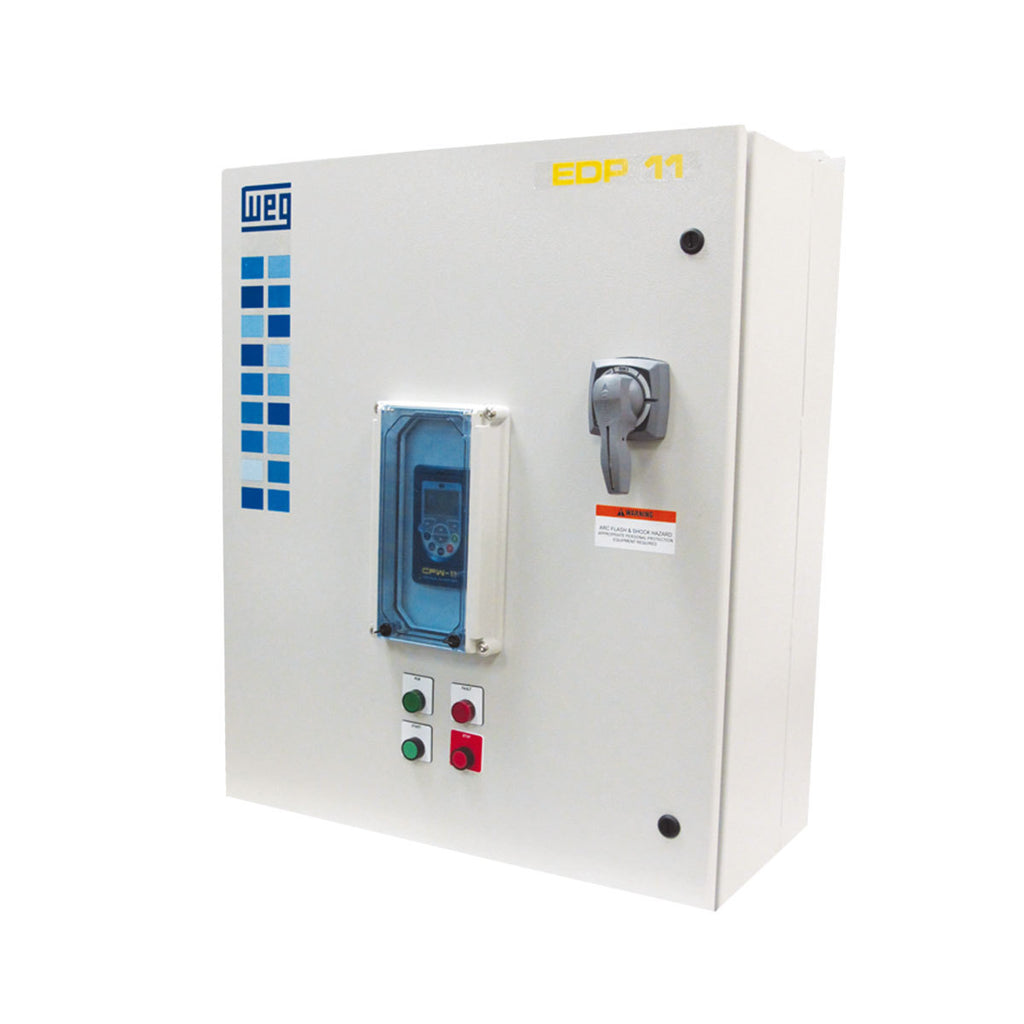

The Engineered Drive Panel is an industrial general purpose AC motor control and protection package. It is designed for simple and quick installation and start-up, requiring only input power and output motor connections. There are two enclosure variants available such as NEMA 12 ventilated and NEMA 3R for Outdoor Installations. The Engineered Drive Panel is built to complement the ruggedness and reliability of WEG motors, providing a complete, simple, and cost effective AC motor control, monitor and protection solution.
| Panel type | VFD |
|---|---|
| Horsepower (HP) | 60 HP |
| Main voltage | 230 V |
| Bypass type | AC3 |
| Control options | Start Pushbutton, Stop Pushbutton, E-STOP Pushbutton, Run Light, Fault Light and Keypad |
| Enclosure rating | Type 12 |
Attributes
| Series | EDP11 |
|---|---|
| Panel type | VFD |
| Horsepower (HP) | 60 HP |
| Enclosure type | Free Standing |
| Thermal Managment | Enclosure heater |
| General enclosure options | Floor-Stand Kit |
| Main voltage | 230 V |
| Control Voltage | 120 V |
| Frequency | 60 Hz |
| SCCR rating | 5 kAIC |
| Disconnect switch type | Circuit Breaker rotary handle disconnect |
| Bypass type | AC3 |
| Control power transformer | 100 VA - Open |
| Reactor/Filter | None |
| Communication | None |
| Control options | Start Pushbutton, Stop Pushbutton, E-STOP Pushbutton, Run Light, Fault Light and Keypad |
| Enclosure rating | Type 12 |
| Nominal height | 1524.0 mm / 60.0 in |
| Nominal width | 914.4 mm / 36.0 in |
| Nominal depth | 406.4 mm / 16.0 in |
| Certification | UL/cUL |
