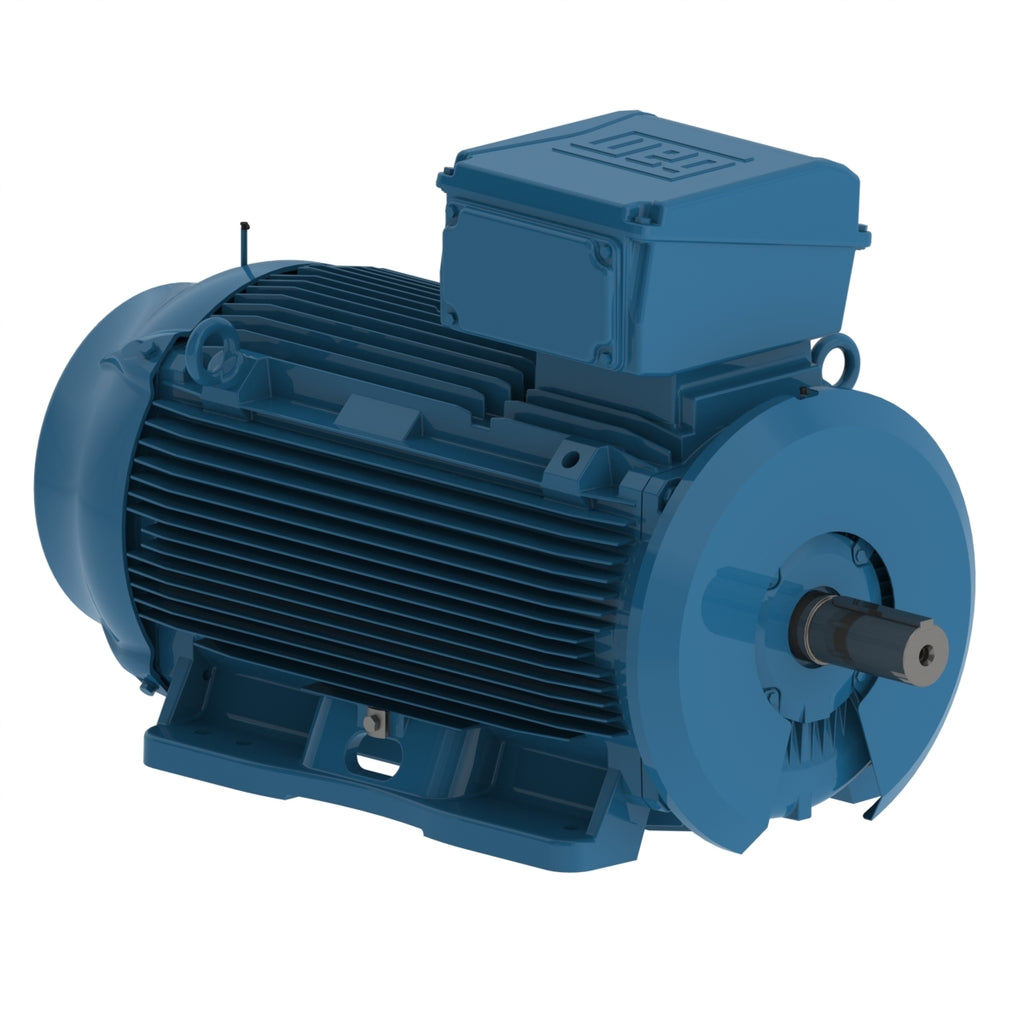

Description
| Standard | IEC 60034-1 |
|---|---|
| Frequency | 50 Hz |
| Voltage | 380-400-415/660-690//460 V |
| Number of poles | 6 |
| Degree of Protection | IP55 |
| Synchronous speed | 1000 rpm |
| Output rating | 200 kW |
| Mounting | B3T |
| Flange | Without |
| Terminal box¹ | Top |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 315L |
|---|---|
| Output | 200 kW (270 HP) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 991 rpm |
| Slip | 0.90 % |
| Rated voltage | 380/660 V |
| Rated current | 380/219 A |
| L. R. Amperes | 2736/1575 A |
| LRC | 7.2 |
| No load current | 150/86.4 A |
| Rated torque | 1420 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 270 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 240 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3T |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 3282 lb |
Efficiency
| 50% | 95.3 |
|---|---|
| 75% | 95.4 |
| 100% | 95.2 |
Power factor
| 50% | 0.69 |
|---|---|
| 75% | 0.80 |
| 100% | 0.84 |
Electric Motors
| Frame | 315L |
|---|---|
| Output | 200 kW (270 HP) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 992 rpm |
| Slip | 0.80 % |
| Rated voltage | 400/690 V |
| Rated current | 369/214 A |
| L. R. Amperes | 2841/1647 A |
| LRC | 7.7 |
| No load current | 165/95.7 A |
| Rated torque | 1420 ft.lb |
| Locked rotor torque | 270 % |
| Breakdown torque | 300 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 240 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3T |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 3282 lb |
Efficiency
| 50% | 95.1 |
|---|---|
| 75% | 95.4 |
| 100% | 95.4 |
Power factor
| 50% | 0.65 |
|---|---|
| 75% | 0.77 |
| 100% | 0.82 |
Electric Motors
| Frame | 315L |
|---|---|
| Output | 200 kW (270 HP) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 993 rpm |
| Slip | 0.70 % |
| Rated voltage | 415 V |
| Rated current | 365 A |
| L. R. Amperes | 2993 A |
| LRC | 8.2 |
| No load current | 175 A |
| Rated torque | 1420 ft.lb |
| Locked rotor torque | 300 % |
| Breakdown torque | 330 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 240 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3T |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 3282 lb |
Efficiency
| 50% | 94.8 |
|---|---|
| 75% | 95.3 |
| 100% | 95.4 |
Power factor
| 50% | 0.62 |
|---|---|
| 75% | 0.74 |
| 100% | 0.80 |
Electric Motors
| Frame | 315L |
|---|---|
| Output | 200 kW (270 HP) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1195 rpm |
| Slip | 0.42 % |
| Rated voltage | 460 V |
| Rated current | 325 A |
| L. R. Amperes | 2763 A |
| LRC | 8.5 |
| No load current | 154 A |
| Rated torque | 1180 ft.lb |
| Locked rotor torque | 310 % |
| Breakdown torque | 330 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 240 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3T |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 71.0 dB(A) |
| Approx. weight³ | 3282 lb |
Efficiency
| 50% | 94.5 |
|---|---|
| 75% | 95.4 |
| 100% | 95.4 |
Power factor
| 50% | 0.65 |
|---|---|
| 75% | 0.75 |
| 100% | 0.81 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | Extended, at Drive end and Non-drive end |
| Main terminal box hole | 2xM63x1,5 |
| Terminal Block | BMC - 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 205P (ISO 12944 - C3) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Aluminum |
| Bearing cap | Yes- Bearing Cap |
| Winding thermal protection | Thermistor - 2 wires 1 per phase 140°C Thermistor - 2 wires 1 per phase 155°C |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
