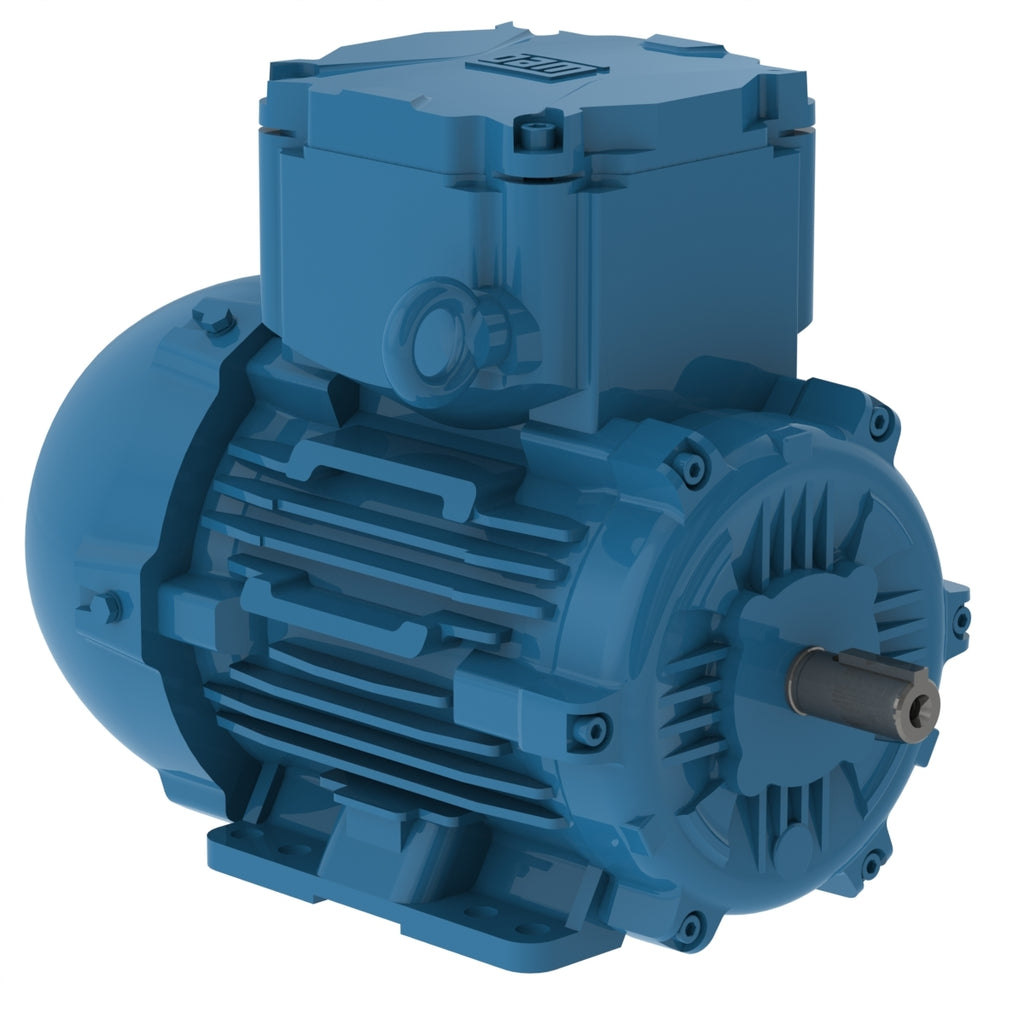

WEG E00112ET3WAX100LF3-W W22Xdb IE3 1.1 kW 6P 100L 3Ph 220-230-240/380-400-415//460 V 50 Hz IC411 - TEFC - B3T
Roll over image to zoom in Click on image to zoom
WEG E00112ET3WAX100LF3-W W22Xdb IE3 1.1 kW 6P 100L 3Ph 220-230-240/380-400-415//460 V 50 Hz IC411 - TEFC - B3T

WEG E00112ET3WAX100LF3-W W22Xdb IE3 1.1 kW 6P 100L 3Ph 220-230-240/380-400-415//460 V 50 Hz IC411 - TEFC - B3T

WEGSKU: E00112ET3WAX100LF3-W

GTIN :

MPN :

Dropship

Price:
$1,794.00

Description

The W22Xdb line is an evolution in the market of classified area products offering high efficiency levels, energy saving, low operational costs, extended lifetime, low maintenance and assured safety.

Standard IEC 60034-1
Frequency 50 Hz
Voltage 220-230-240/380-400-415//460 V
Number of poles 6
Degree of Protection IP56
Synchronous speed 1000 rpm
Output rating 1.1 kW
Mounting B3T
Flange Without
Terminal box¹ Top
Enclosure IC411 - TEFC


Electric Motors
Frame 100L
Output 1.1 kW (1.5 HP)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 220/380 V
Rated current 4.89/2.83 A
L. R. Amperes 24.0/13.9 A
LRC 4.9
No load current 3.28/1.90 A
Rated torque 8.08 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 0.2603 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 44.0 dB(A)
Approx. weight³ 123 lb
Efficiency
50% 80.8
75% 80.9
100% 81.0
Power factor
50% 0.54
75% 0.65
100% 0.73
Electric Motors
Frame 100L
Output 1.1 kW (1.5 HP)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 230/400 V
Rated current 4.87/2.80 A
L. R. Amperes 25.8/14.8 A
LRC 5.3
No load current 3.65/2.10 A
Rated torque 8.03 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 0.2603 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 44.0 dB(A)
Approx. weight³ 123 lb
Efficiency
50% 78.5
75% 81.0
100% 81.0
Power factor
50% 0.51
75% 0.62
100% 0.70
Electric Motors
Frame 100L
Output 1.1 kW (1.5 HP)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 240/415 V
Rated current 4.77/2.76 A
L. R. Amperes 26.7/15.5 A
LRC 5.6
No load current 3.72/2.15 A
Rated torque 8.03 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 48s (cold) 27s (hot)
Moment of inertia (J) 0.2603 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 44.0 dB(A)
Approx. weight³ 123 lb
Efficiency
50% 78.0
75% 80.9
100% 81.5
Power factor
50% 0.48
75% 0.60
100% 0.68
Electric Motors
Frame 100L
Output 1.1 kW (1.5 HP)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 460 V
Rated current 2.45 A
L. R. Amperes 15.9 A
LRC 6.5
No load current 1.90 A
Rated torque 6.63 ft.lb
Locked rotor torque 260 %
Breakdown torque 290 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 0.2603 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 123 lb
Efficiency
50% 79.5
75% 83.0
100% 84.0
Power factor
50% 0.48
75% 0.59
100% 0.67
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Space Heater Voltage 200 - 240 V
Main terminal box hole M32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 205P (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Joints Seal Lumomoly
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 150°C
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
