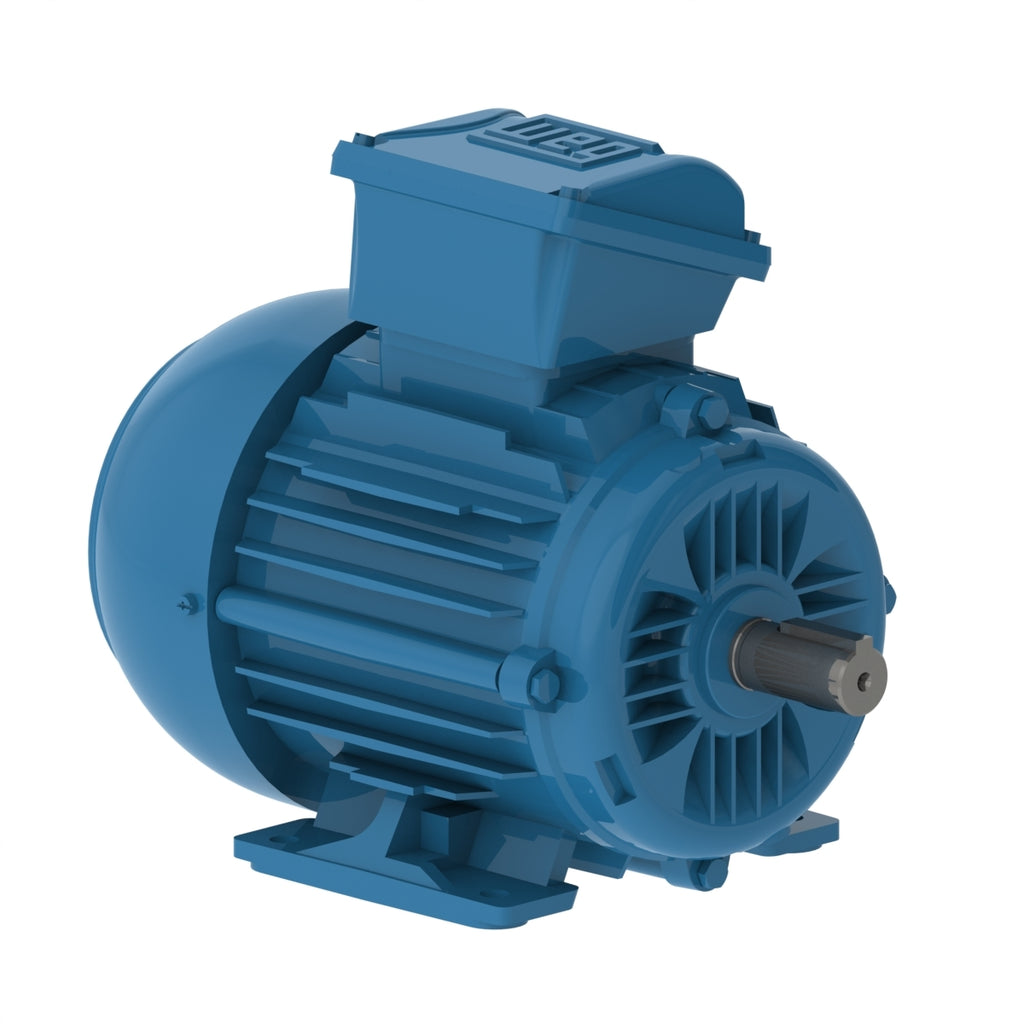

Description
| Standard | IEC 60034-1 |
|---|---|
| Frequency | 50 Hz |
| Voltage | 220-230-240/380-400-415//460 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1500 rpm |
| Output rating | 0.18 kW |
| Mounting | B3T |
| Flange | Without |
| Terminal box¹ | Top |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 63 |
|---|---|
| Output | 0.18 kW (0.25 HP) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1400 rpm |
| Slip | 6.67 % |
| Rated voltage | 220/380 V |
| Rated current | 0.986/0.571 A |
| L. R. Amperes | 4.14/2.40 A |
| LRC | 4.2 |
| No load current | 0.812/0.470 A |
| Rated torque | 0.906 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 200 % |
| Locked rotor time | 72s (cold) 40s (hot) |
| Moment of inertia (J) | 0.0131 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3T |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 44.0 dB(A) |
| Approx. weight³ | 18.8 lb |
Efficiency
| 50% | 60.4 |
|---|---|
| 75% | 61.3 |
| 100% | 64.7 |
Power factor
| 50% | 0.52 |
|---|---|
| 75% | 0.65 |
| 100% | 0.74 |
Electric Motors
| Frame | 63 |
|---|---|
| Output | 0.18 kW (0.25 HP) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1410 rpm |
| Slip | 6.00 % |
| Rated voltage | 230/400 V |
| Rated current | 0.998/0.574 A |
| L. R. Amperes | 4.39/2.53 A |
| LRC | 4.4 |
| No load current | 0.887/0.510 A |
| Rated torque | 0.900 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 220 % |
| Locked rotor time | 72s (cold) 40s (hot) |
| Moment of inertia (J) | 0.0131 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3T |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 44.0 dB(A) |
| Approx. weight³ | 18.8 lb |
Efficiency
| 50% | 58.5 |
|---|---|
| 75% | 61.0 |
| 100% | 64.7 |
Power factor
| 50% | 0.48 |
|---|---|
| 75% | 0.61 |
| 100% | 0.70 |
Electric Motors
| Frame | 63 |
|---|---|
| Output | 0.18 kW (0.25 HP) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1415 rpm |
| Slip | 5.67 % |
| Rated voltage | 240/415 V |
| Rated current | 0.984/0.569 A |
| L. R. Amperes | 4.53/2.62 A |
| LRC | 4.6 |
| No load current | 0.934/0.540 A |
| Rated torque | 0.897 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 240 % |
| Locked rotor time | 72s (cold) 40s (hot) |
| Moment of inertia (J) | 0.0131 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3T |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 44.0 dB(A) |
| Approx. weight³ | 18.8 lb |
Efficiency
| 50% | 57.7 |
|---|---|
| 75% | 60.6 |
| 100% | 64.7 |
Power factor
| 50% | 0.48 |
|---|---|
| 75% | 0.58 |
| 100% | 0.68 |
Electric Motors
| Frame | 63 |
|---|---|
| Output | 0.18 kW (0.25 HP) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1725 rpm |
| Slip | 4.17 % |
| Rated voltage | 460 V |
| Rated current | 0.519 A |
| L. R. Amperes | 2.34 A |
| LRC | 4.5 |
| No load current | 0.480 A |
| Rated torque | 0.735 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 280 % |
| Locked rotor time | 72s (cold) 40s (hot) |
| Moment of inertia (J) | 0.0131 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3T |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 48.0 dB(A) |
| Approx. weight³ | 18.8 lb |
Efficiency
| 50% | 58.5 |
|---|---|
| 75% | 65.0 |
| 100% | 68.0 |
Power factor
| 50% | 0.45 |
|---|---|
| 75% | 0.56 |
| 100% | 0.64 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 2xM20x1,5 |
| Terminal Block | BMC - 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 205P (ISO 12944 - C3) |
| Grounding Lugs | Double |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Conductive Plastic |
| Bearing cap | No-Without Bearing Cap |
| Winding thermal protection | Thermistor - 2 wires 1 per phase 140°C Thermistor - 2 wires 1 per phase 155°C |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
